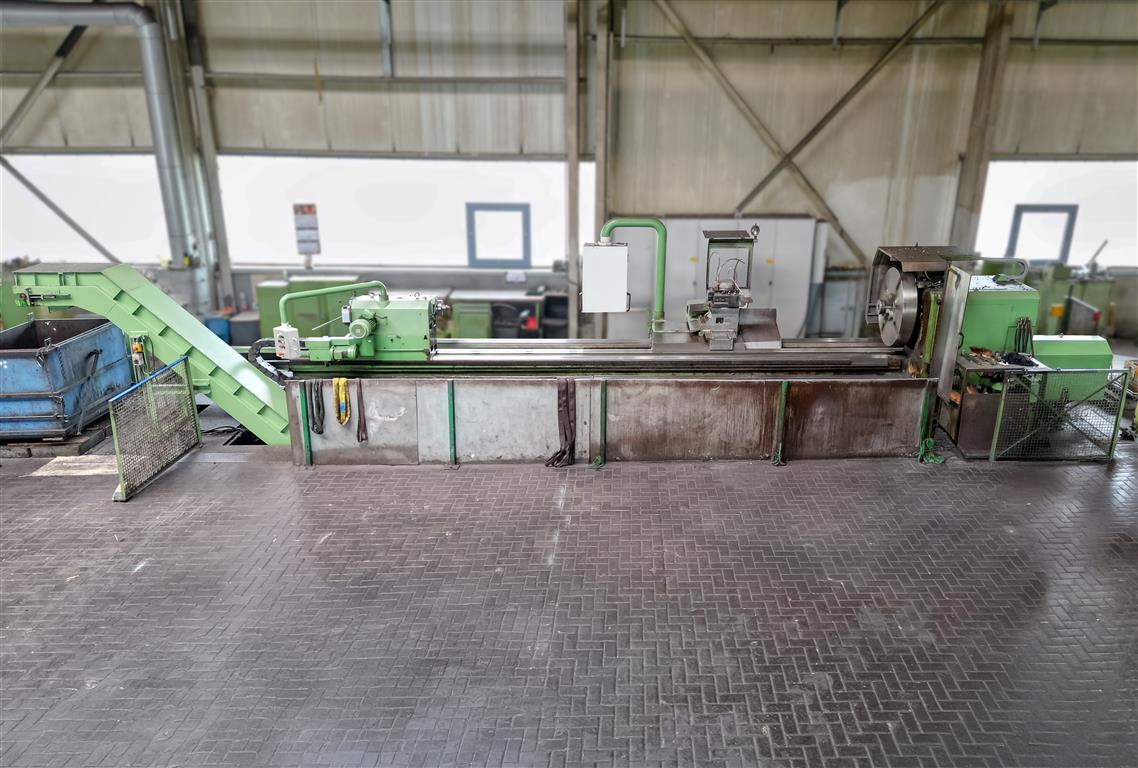

TACCHI - HEAVY DUTY LATHE MACHINE-HD/3 90 HSTI

Heavy Duty Lathe TACCHI HD/3 90 HSTI

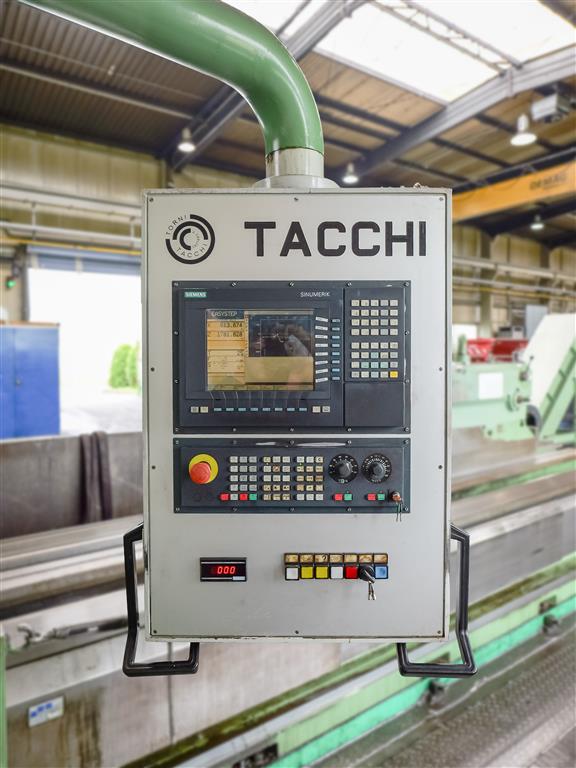

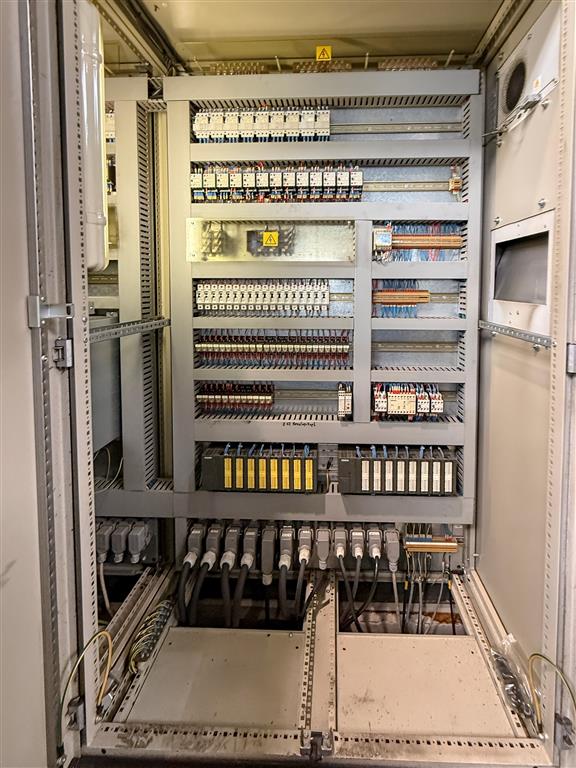

Control: Siemens Sinumerik 840 D

Origin: Italy

Technical Specifications

Turning diameter: 1,020 mm

Turning length: 6,000 mm

Centre distance: 6,000 mm

Centre height: 600 mm

Turning diameter over bed: 1,020 mm

Turning diameter over slide: 700 mm

Max. workpiece weight between centres: 12,000 kg

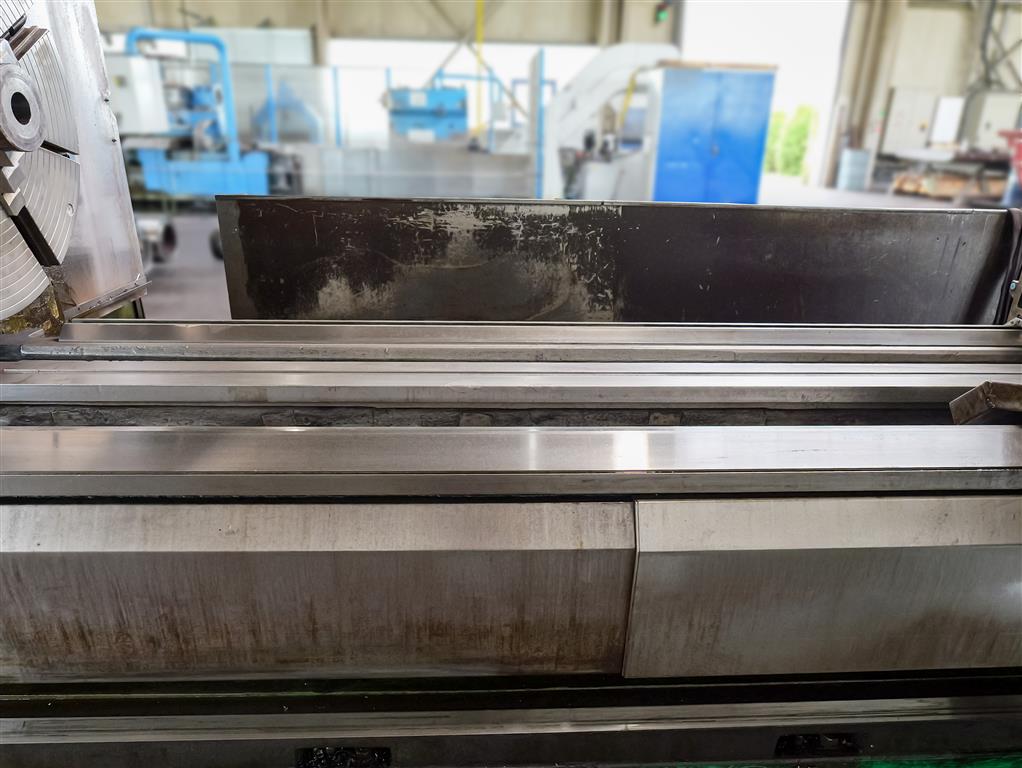

Bed width: 900 mm

Spindle Head

Spindle speed range: 1 – 720 rpm

Gear step 1: 2 – 26 / 26 – 80 rpm

Gear step 2: 80 – 240 rpm

Gear step 3: 240 – 720 rpm

Spindle power: 75 kW

Spindle torque: 13,000 Nm

Spindle nose: ASA Gr. 15"

Spindle bore: 120 mm

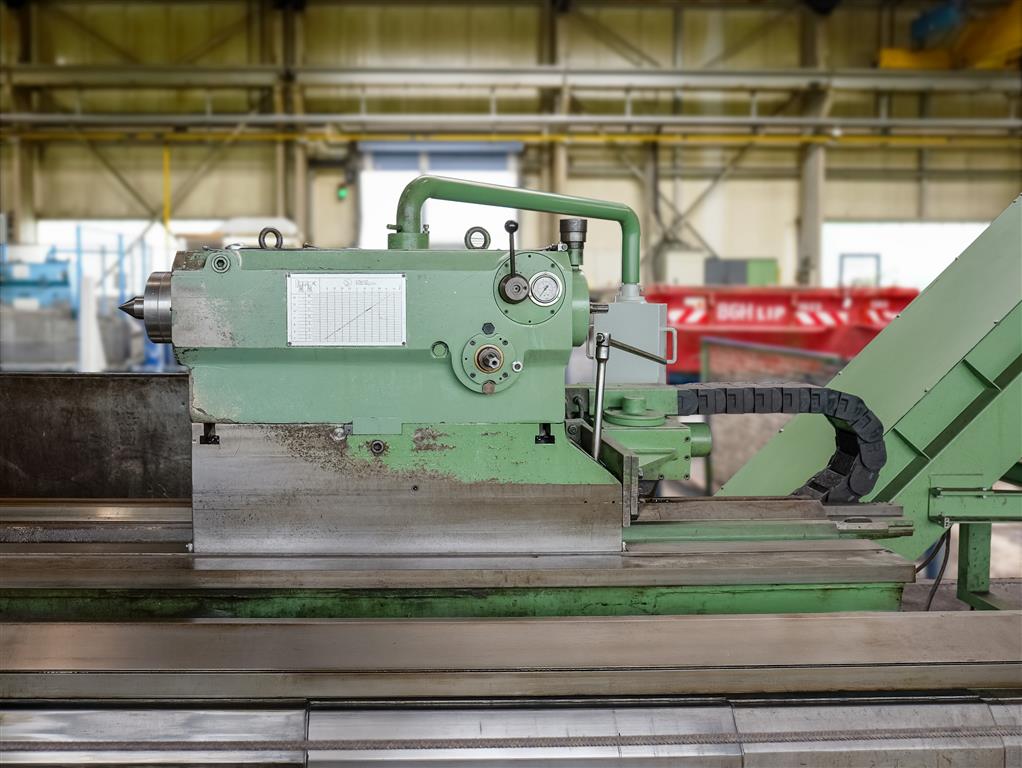

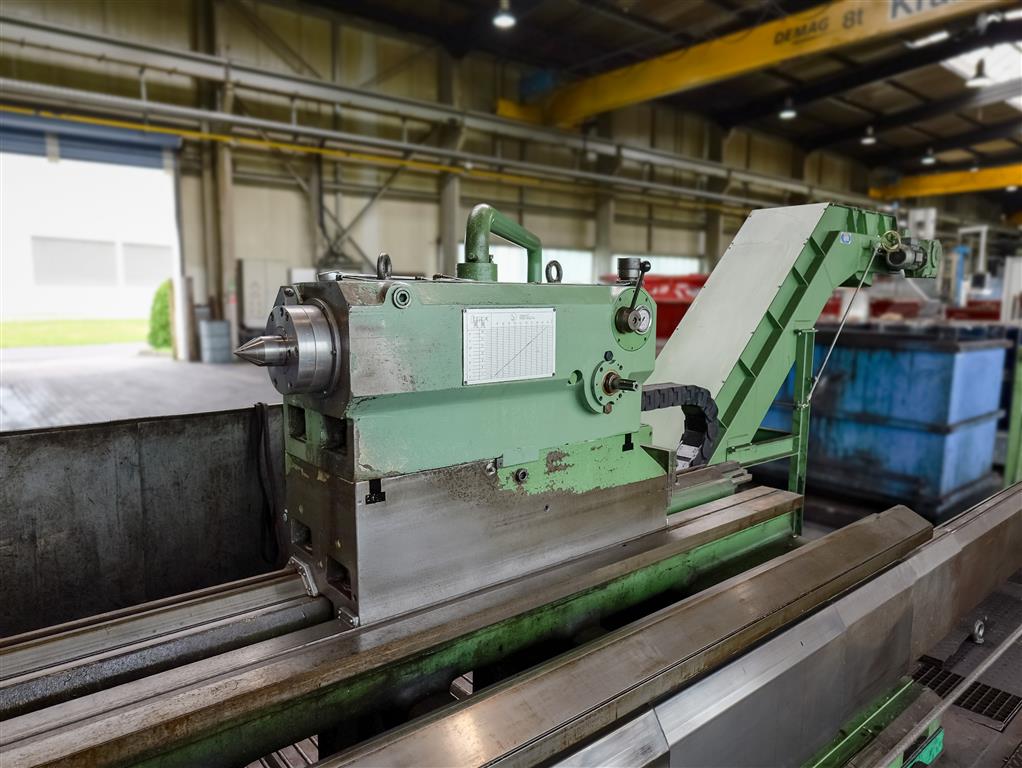

Tailstock

Quill diameter: 300 mm

Quill stroke: 185 mm

Centre: CM 6

Longitudinal working feed (continuous): 0 – 4,000 mm/min

Transverse working feed (continuous): 0 – 4,000 mm/min

Rapid movement longitudinal: 4,000 mm/min

Rapid movement transverse: 4,000 mm/min

Machine dimensions (L × W × H): 12,800 × 2,400 × 2,400 mm

Machine weight: ≈ 24,000 kg

Total power requirement: 110 kW

Equipment:

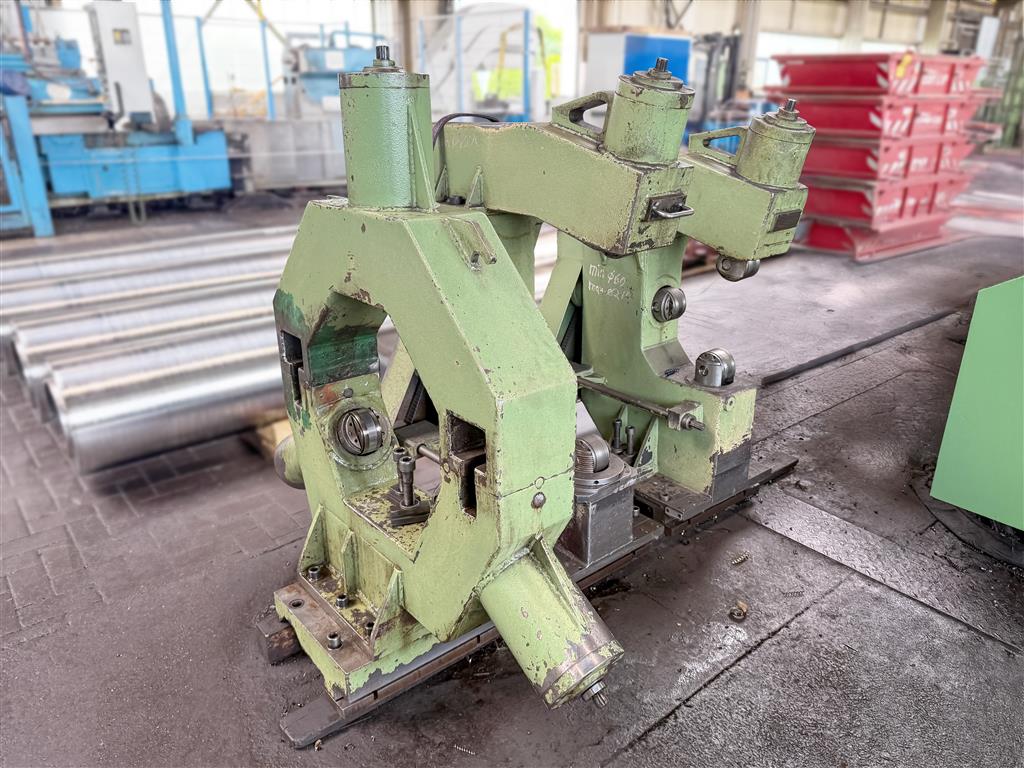

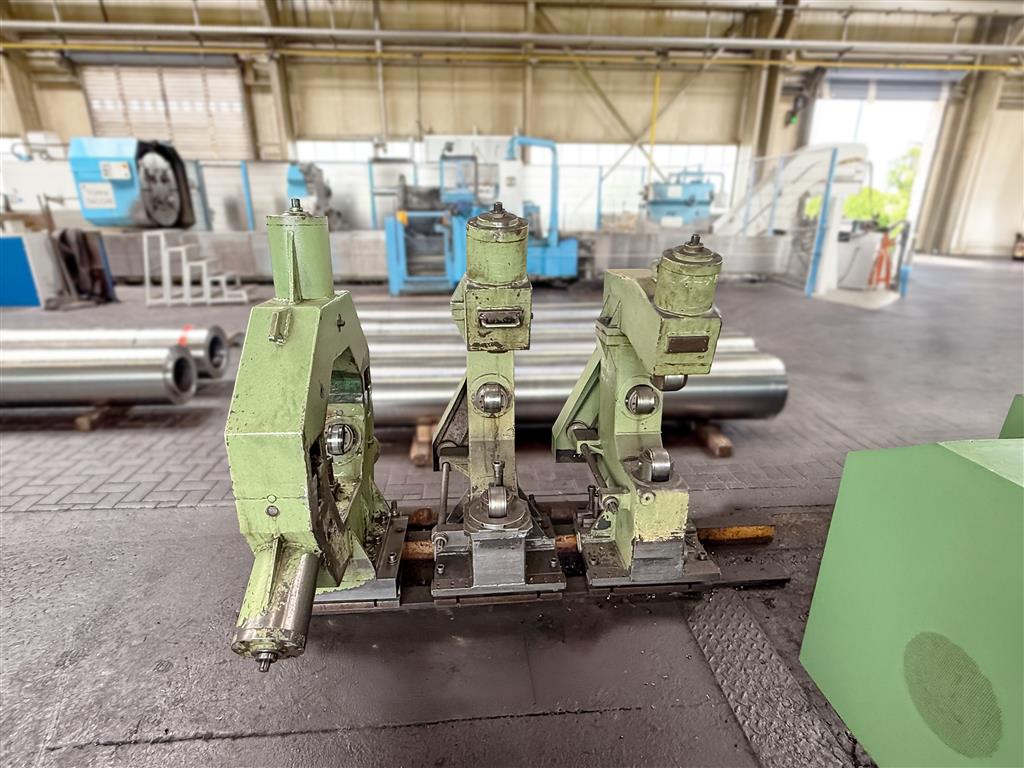

1 steady rest (C-type), range: 60 – 210 mm

1 steady rest (C-type), range: 200 – 480 mm

1 steady rest (closed type), range: ≈ 200 – 480 mm

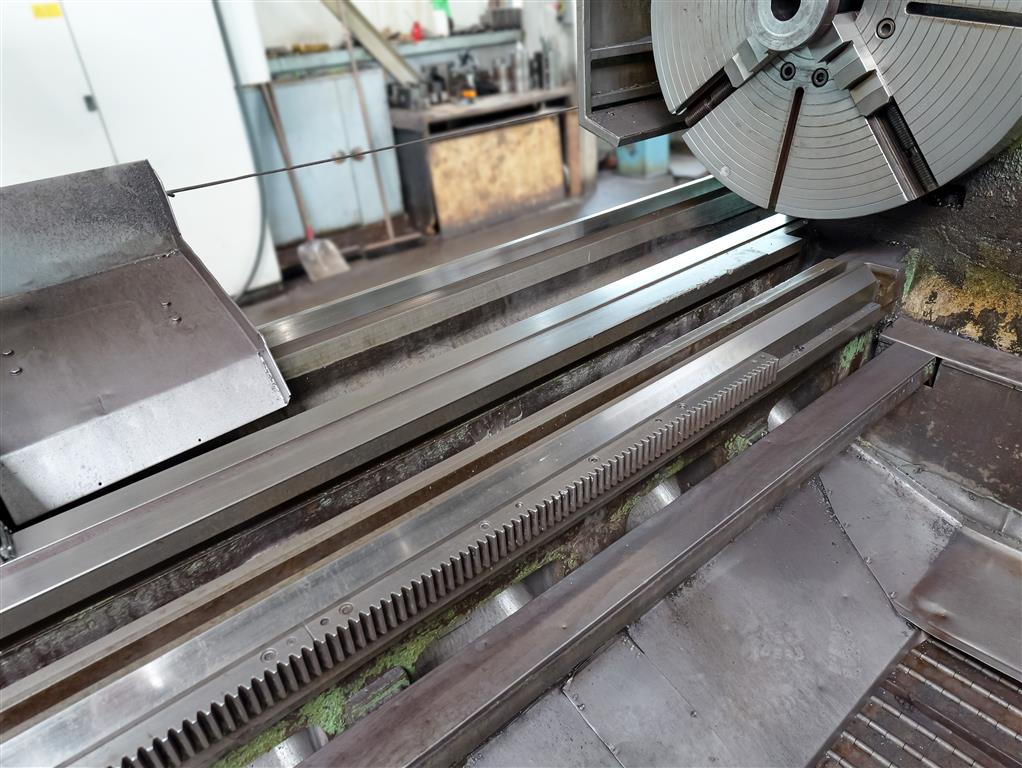

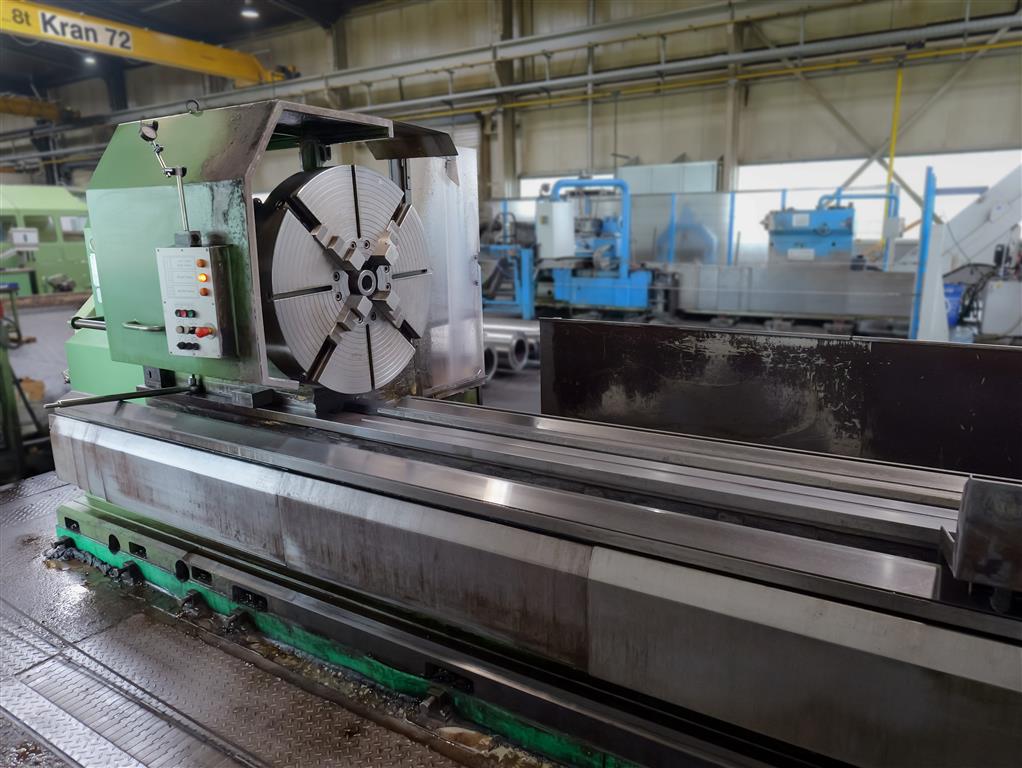

1,000 mm diameter faceplate with 4 reversible jaws

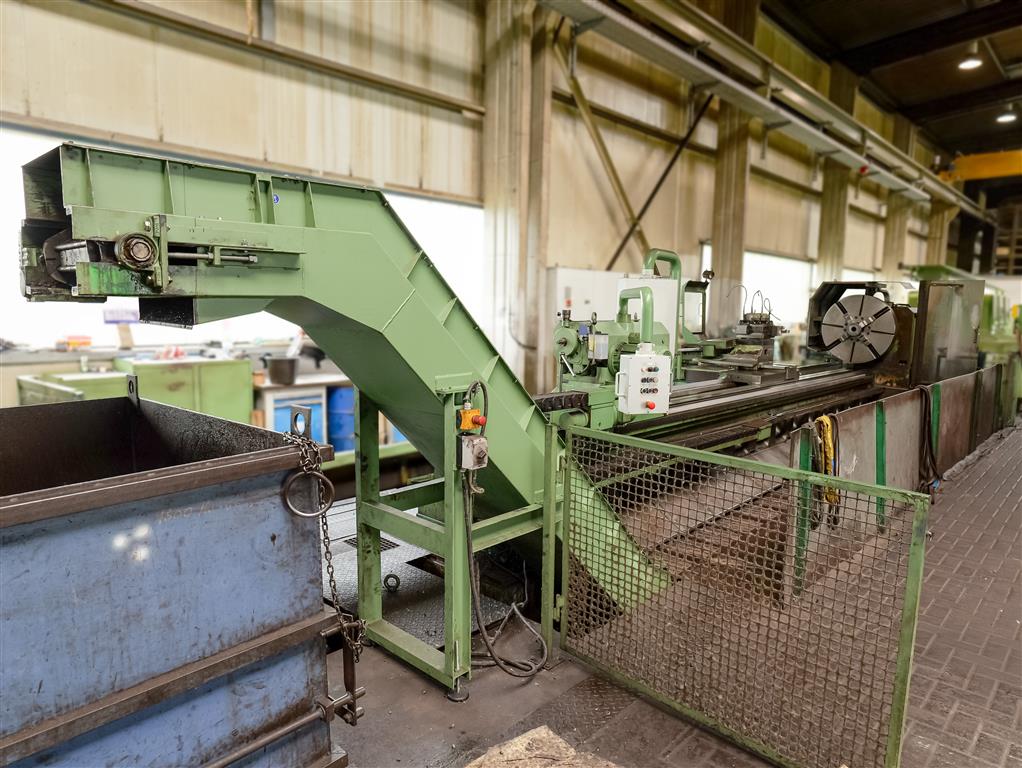

Chip conveyor KABELSCHLEPP SRF063
