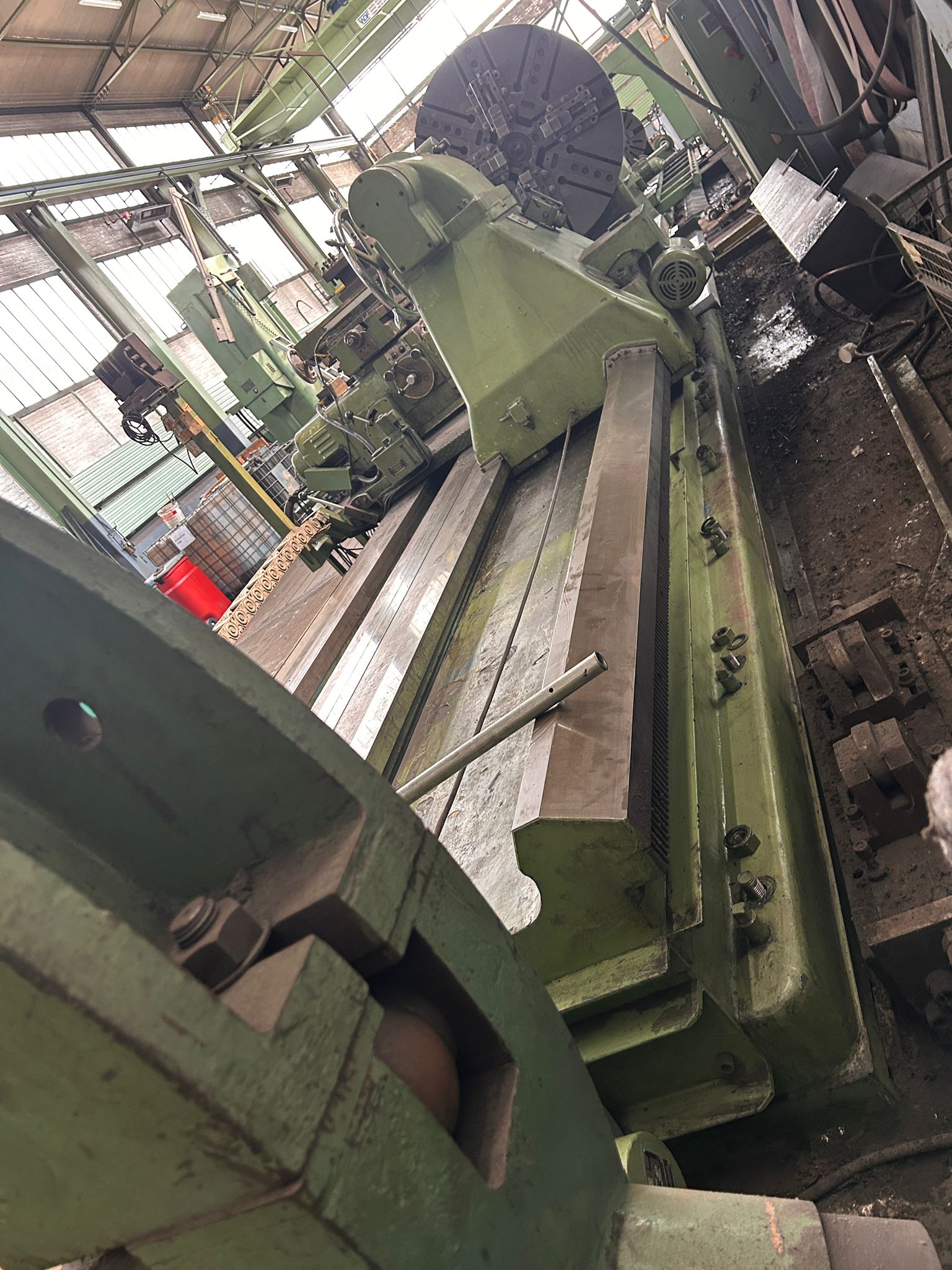

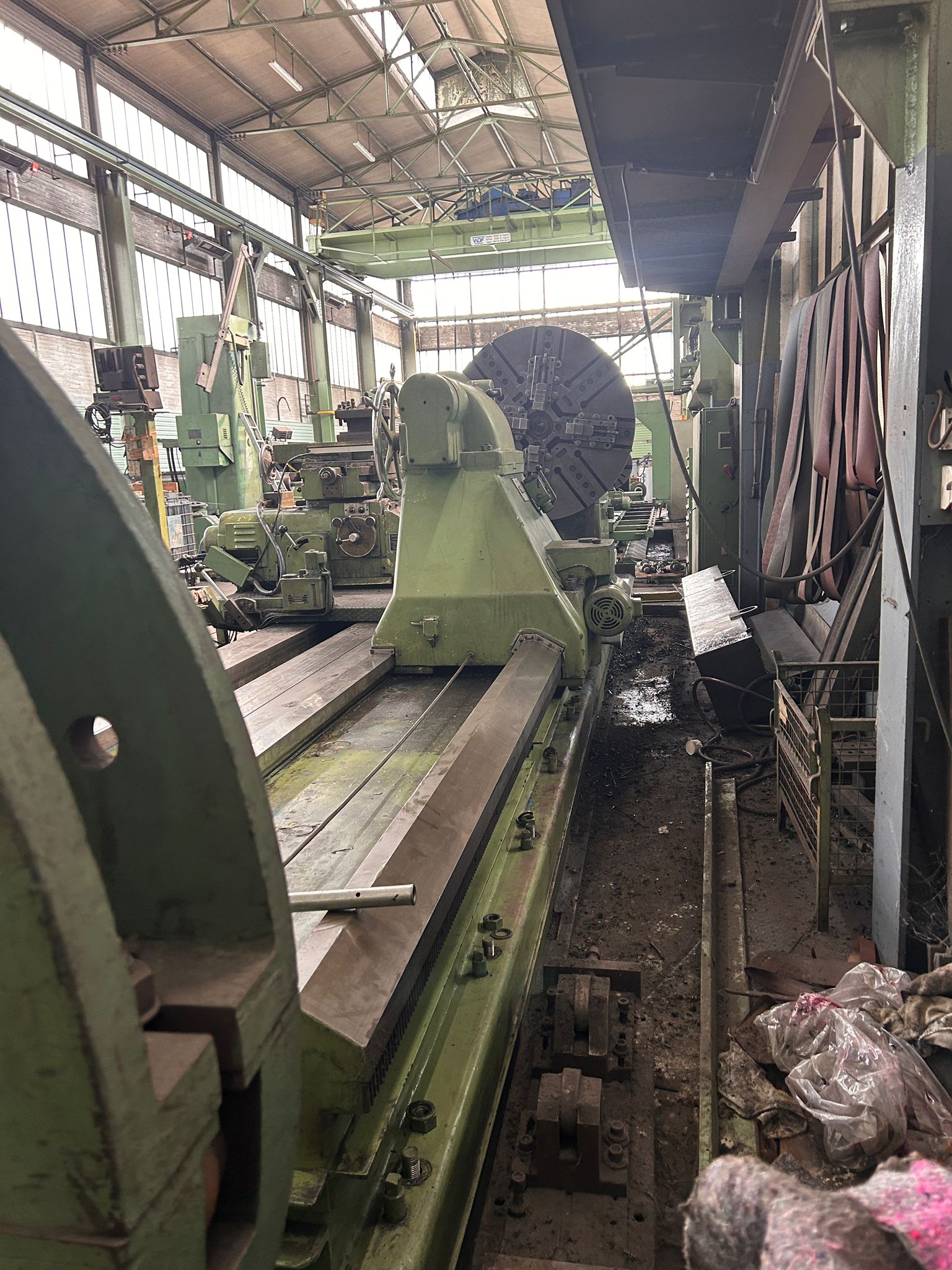

RAVENSBURG - HEAVY DUTY LATHE MACHINE-K 100 BT

Whatsapp Us

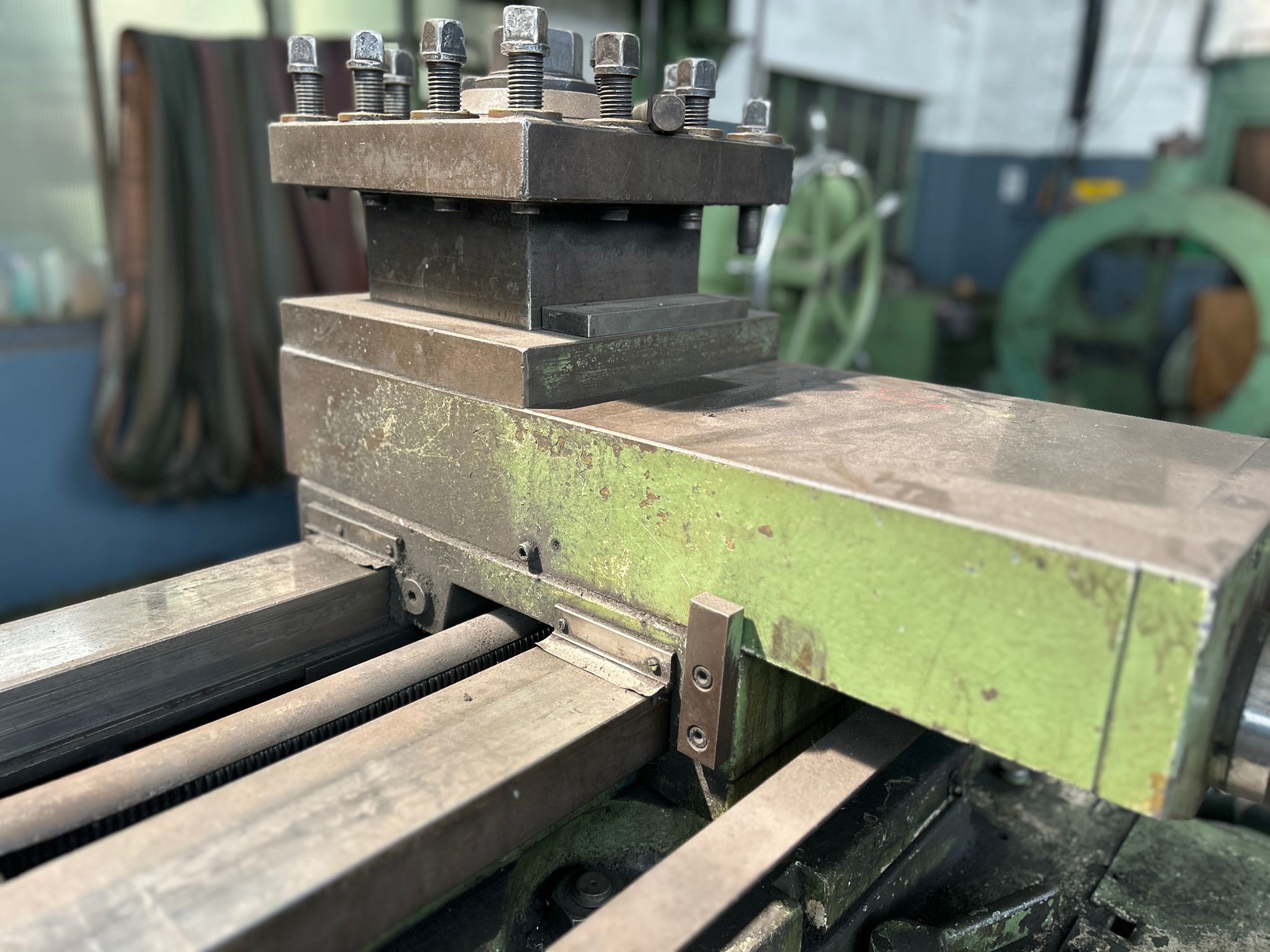

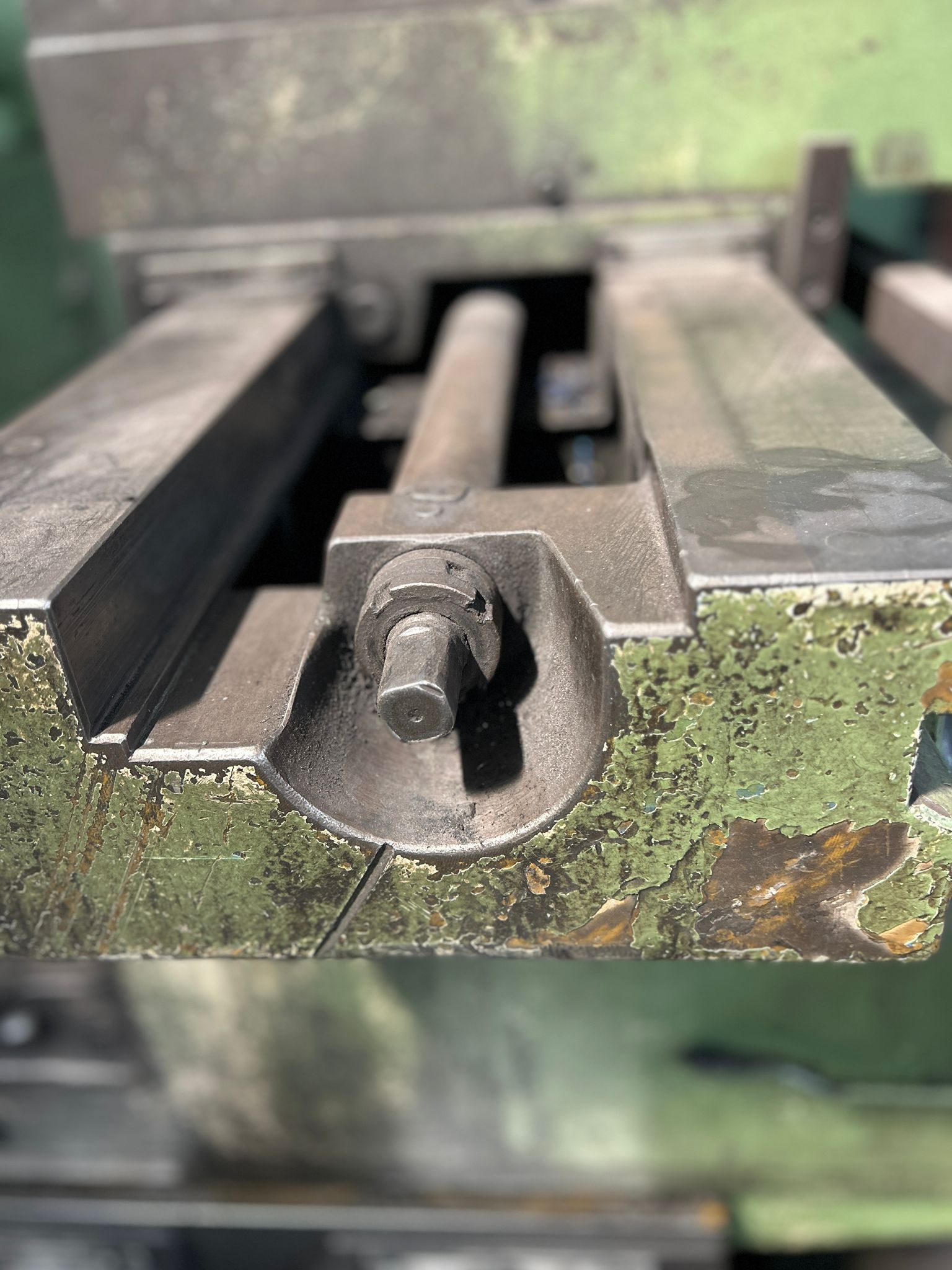

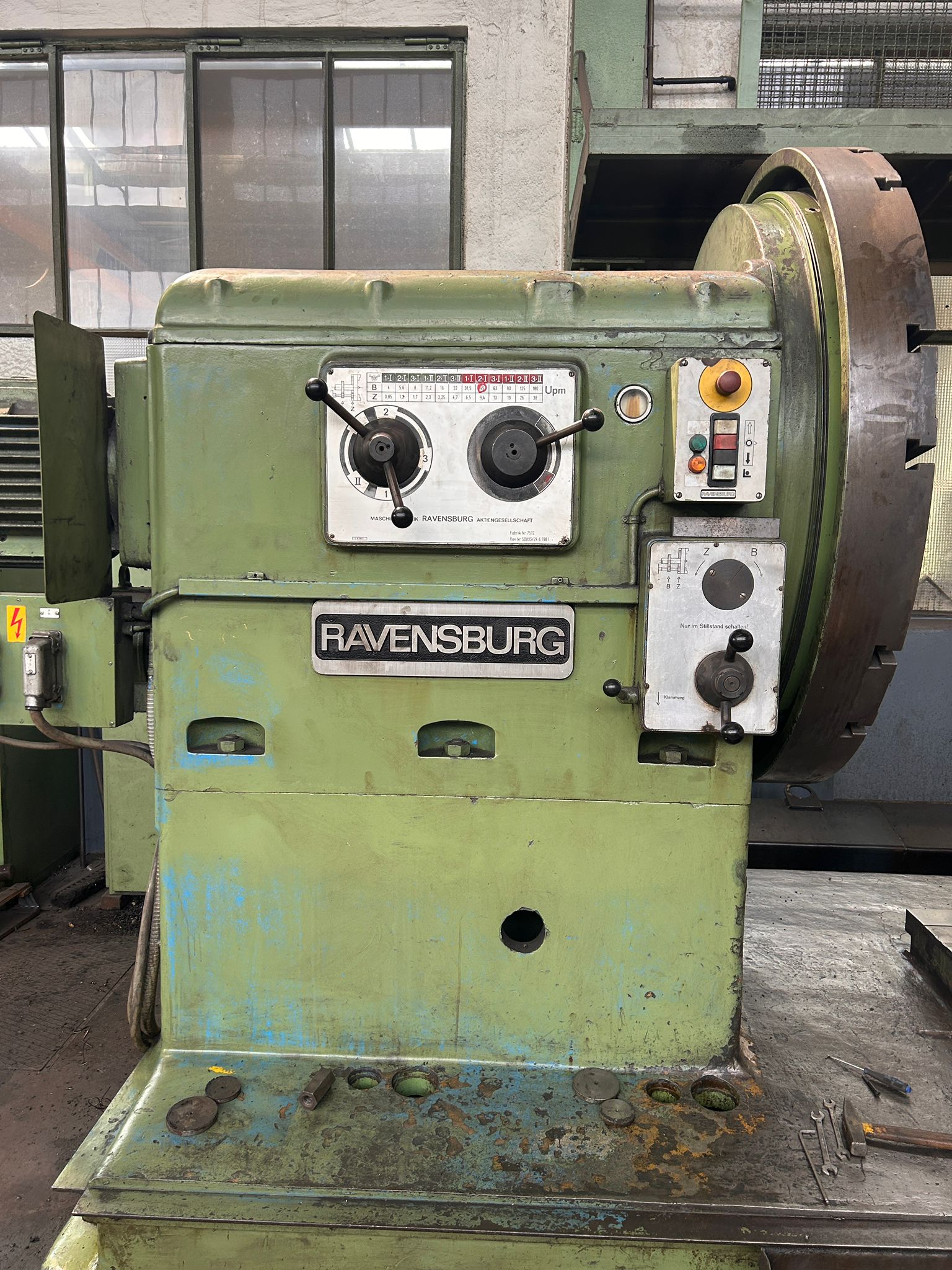

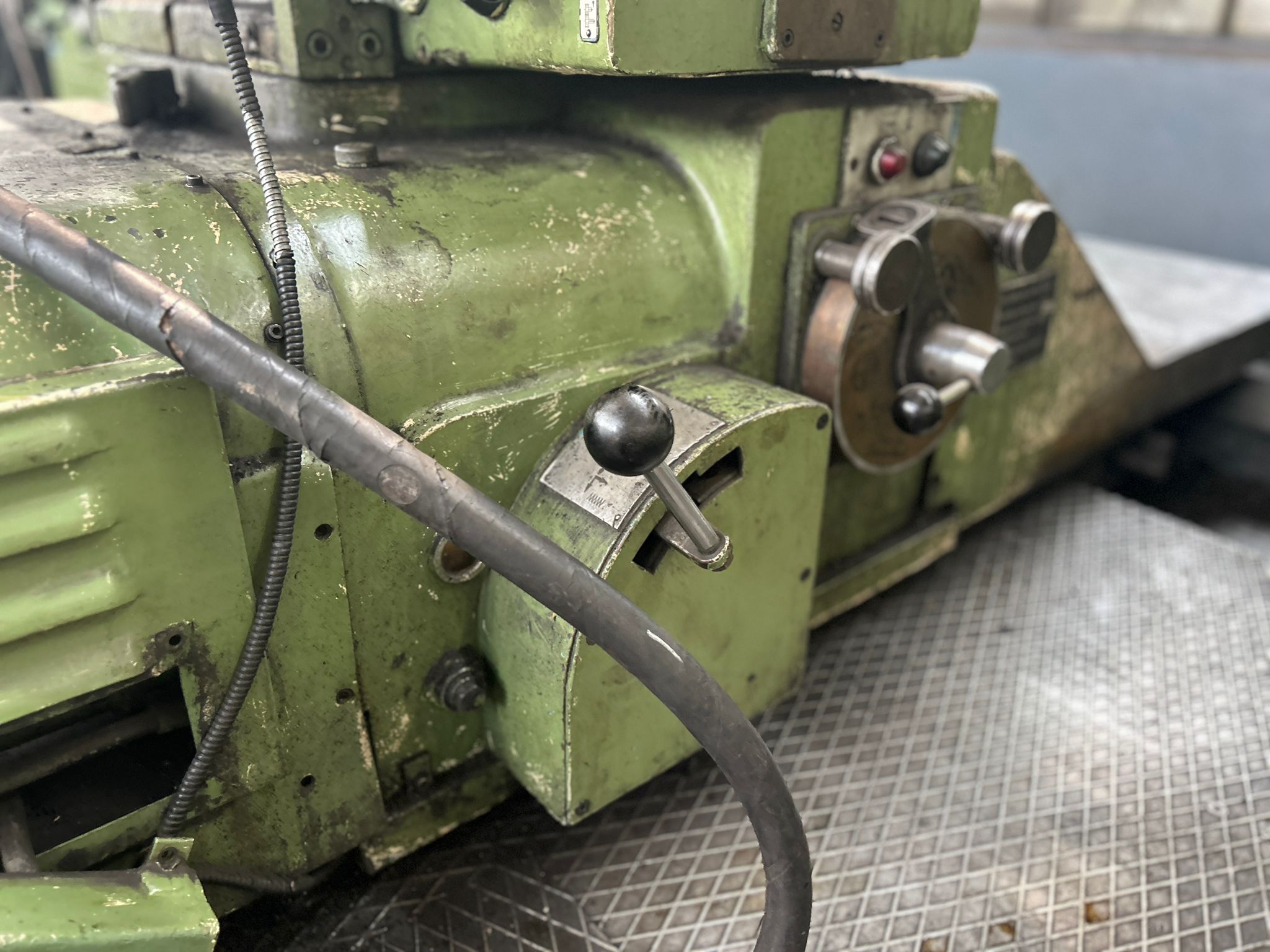

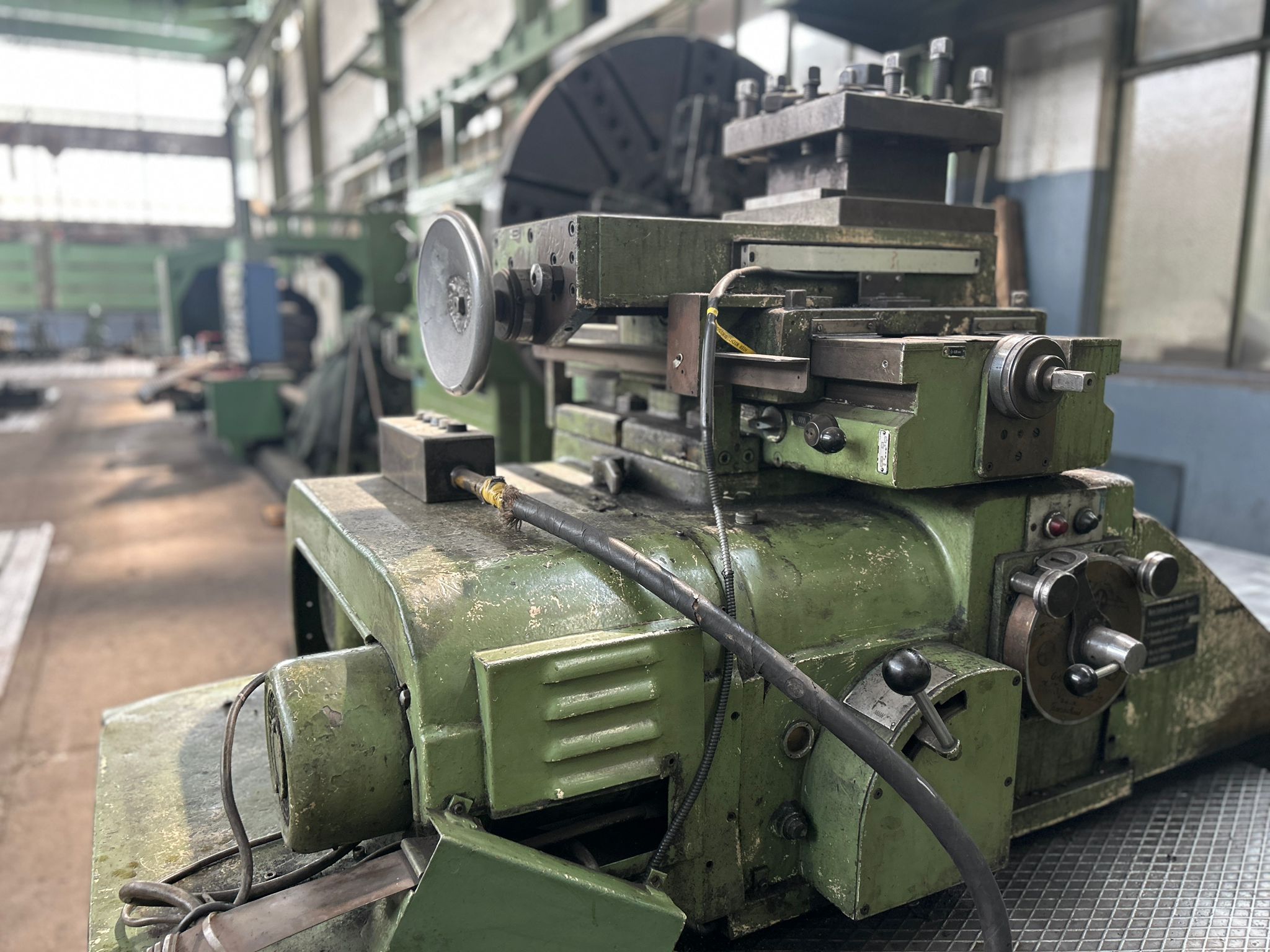

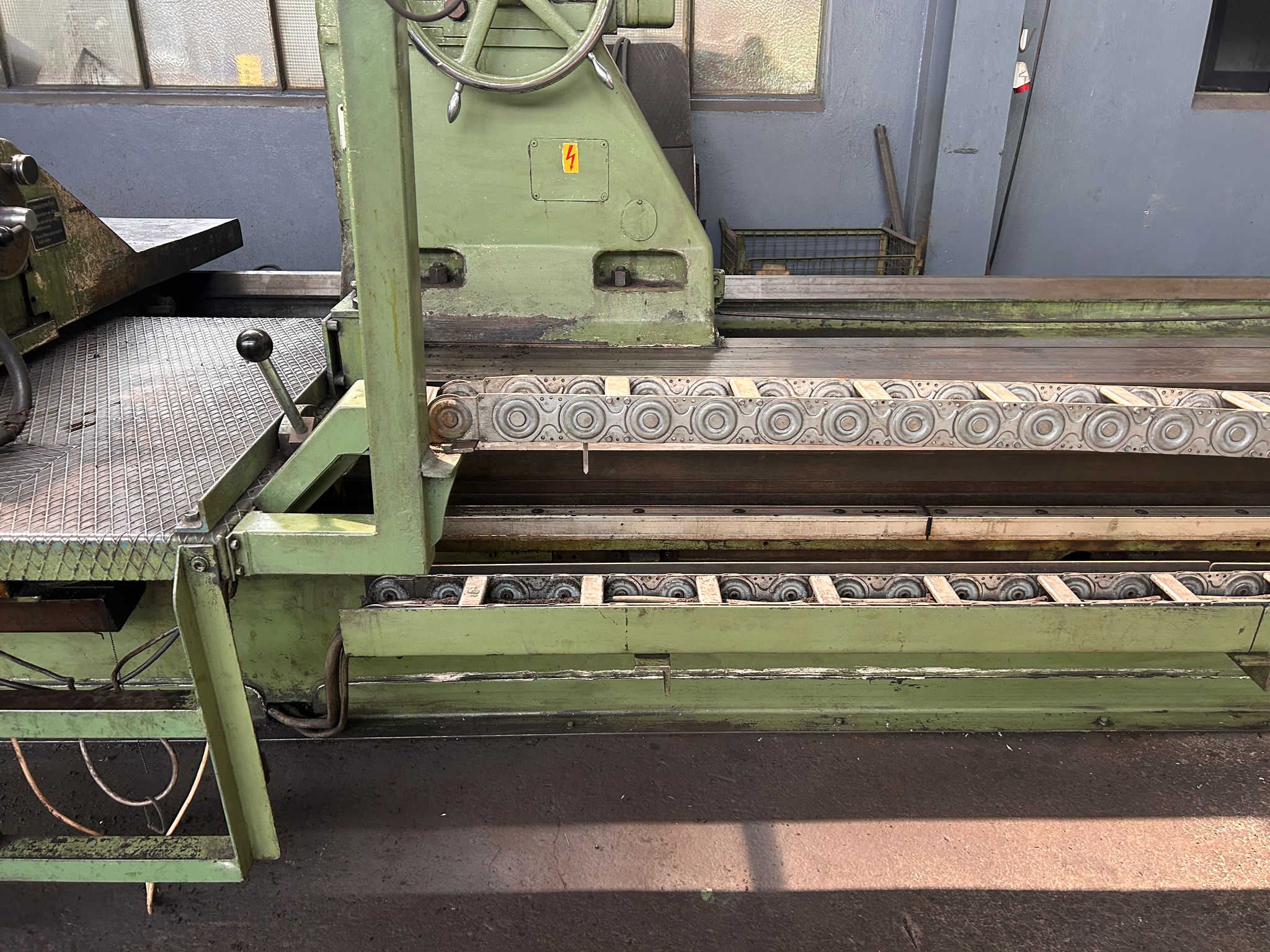

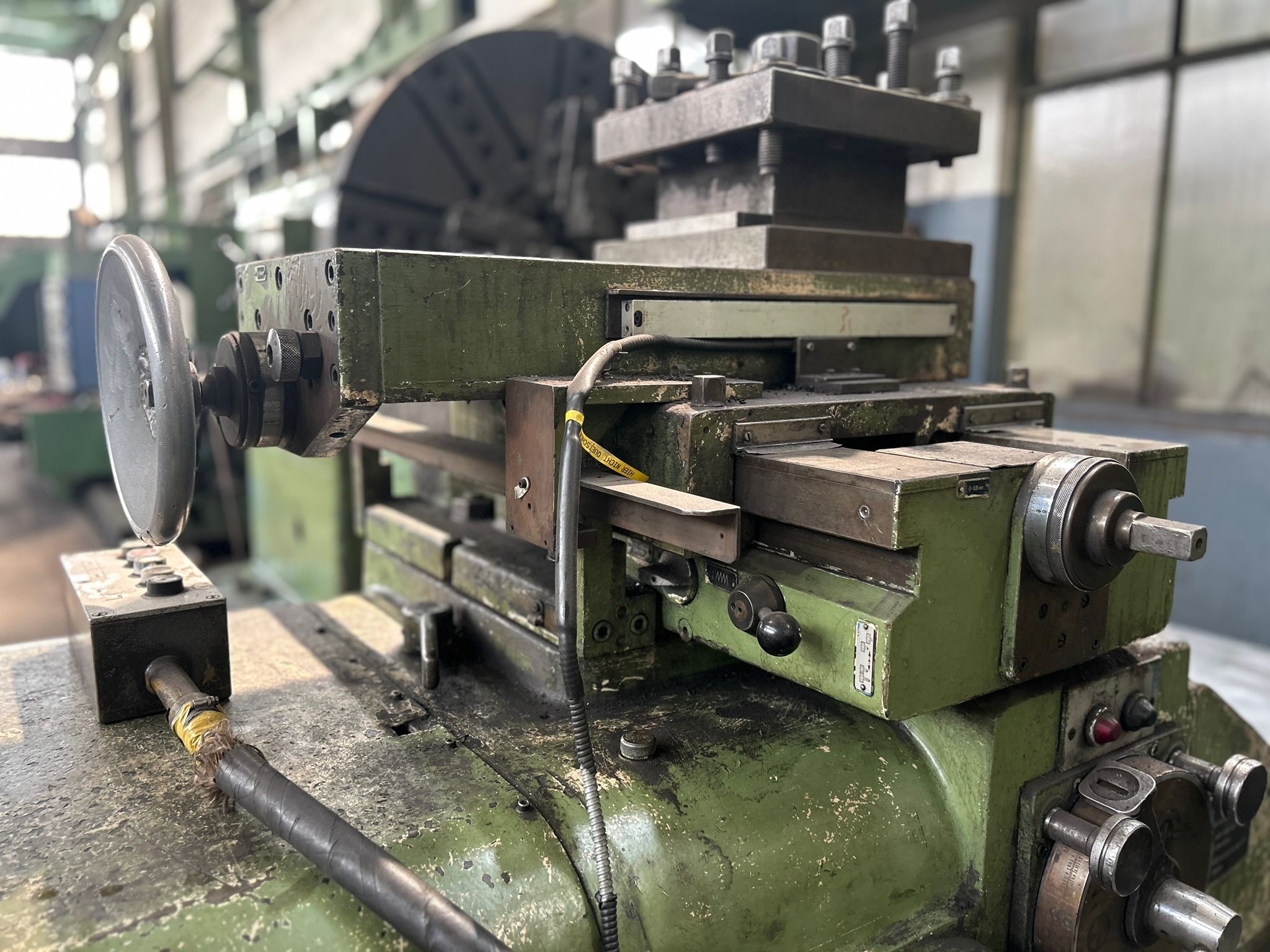

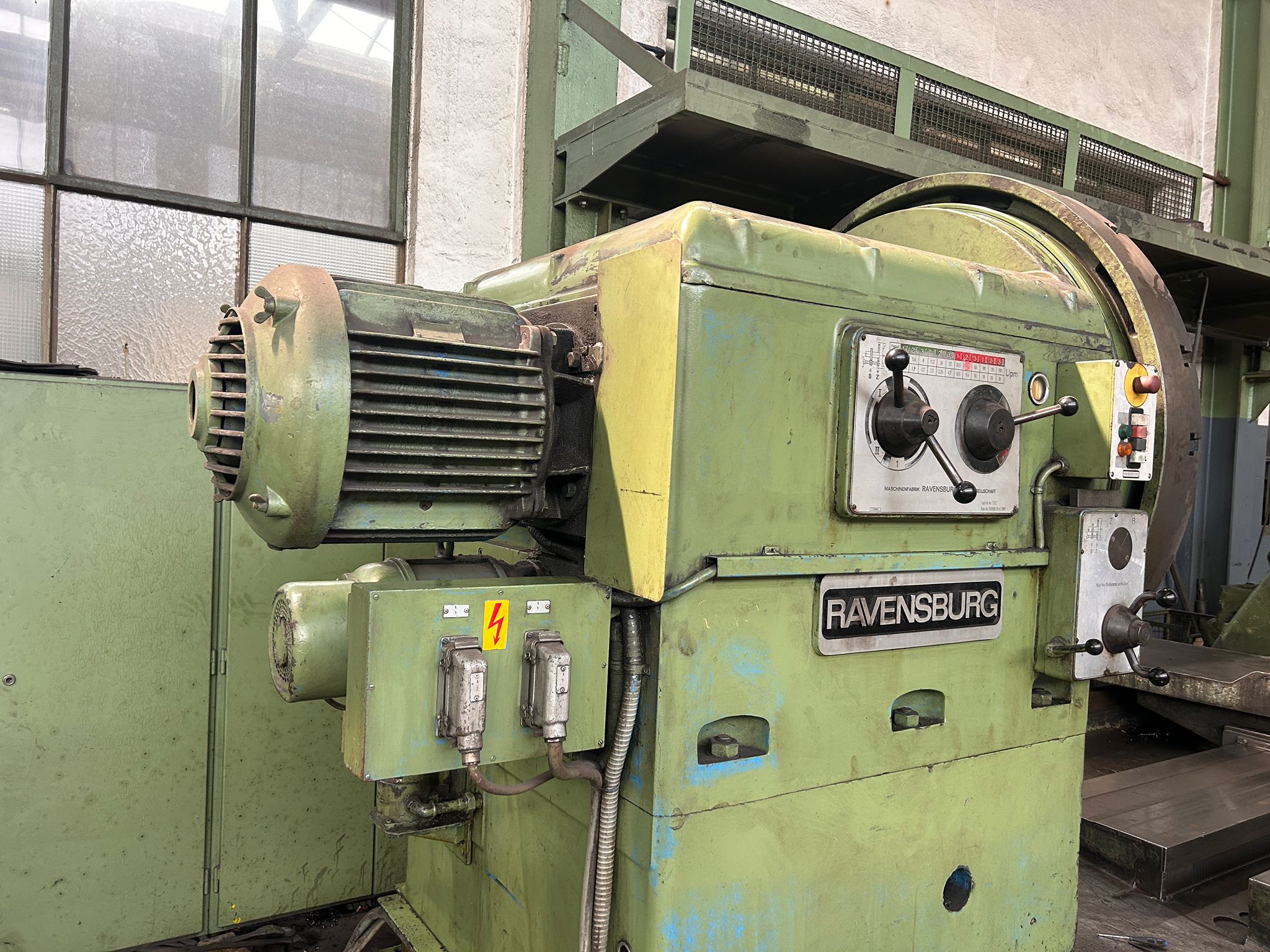

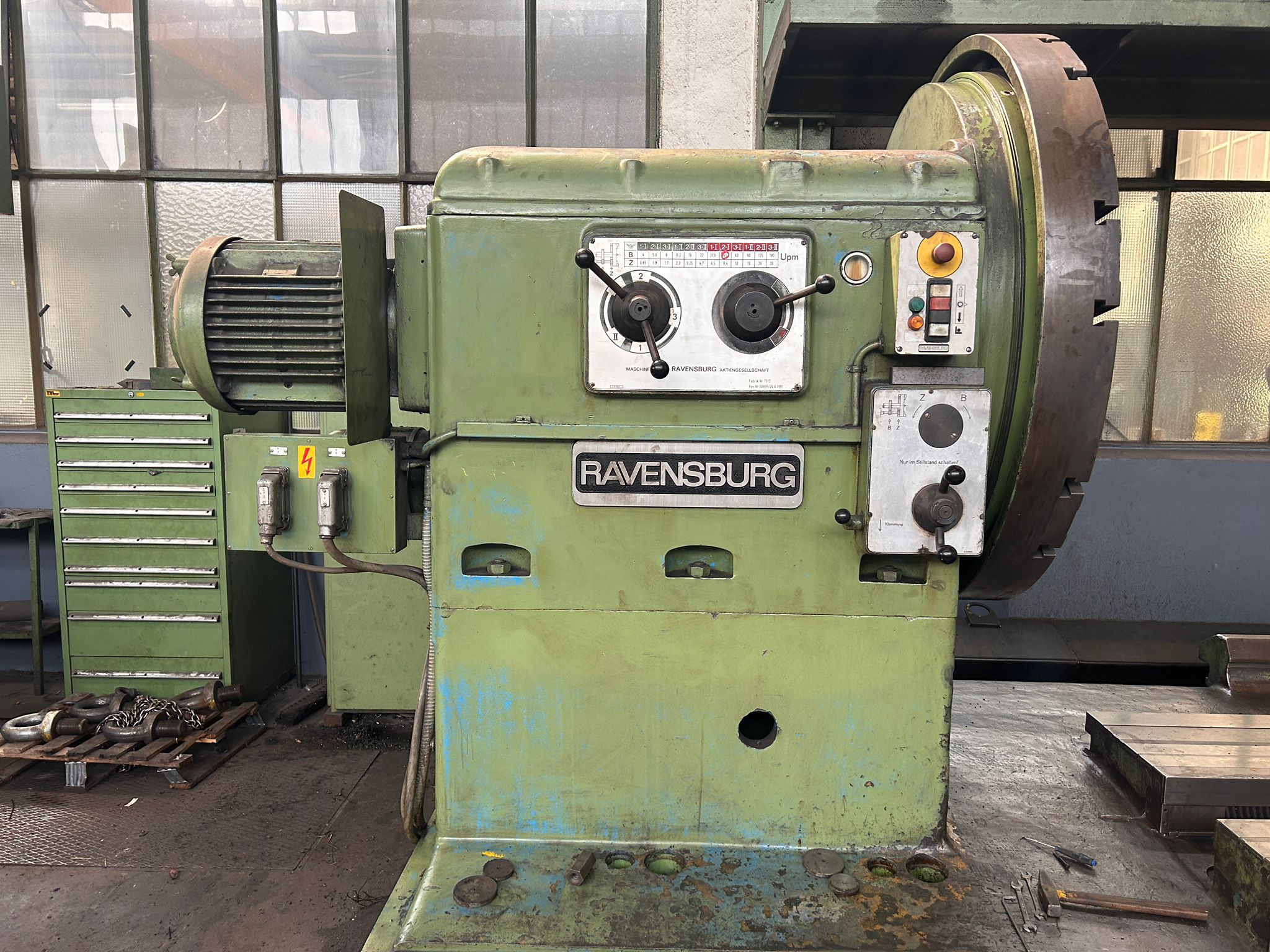

Machine Name: RAVENSBURG - HEAVY DUTY LATHE MACHINE-K 100 BT

Manufacturer: RAVENSBURG

Model: K 100 BT

Country: GERMANY

Stock-no.: SEC00108

Technical Specifications

Manufacturer : Ravensburg
Model : K 100 Bt
Swing over bed : 2250 mm
Swing over cross slide : 1650 mm
Distance B/w Centres : 5200 mm
Centre height : 1125 mm
Spindle bore : approx. 160 mm

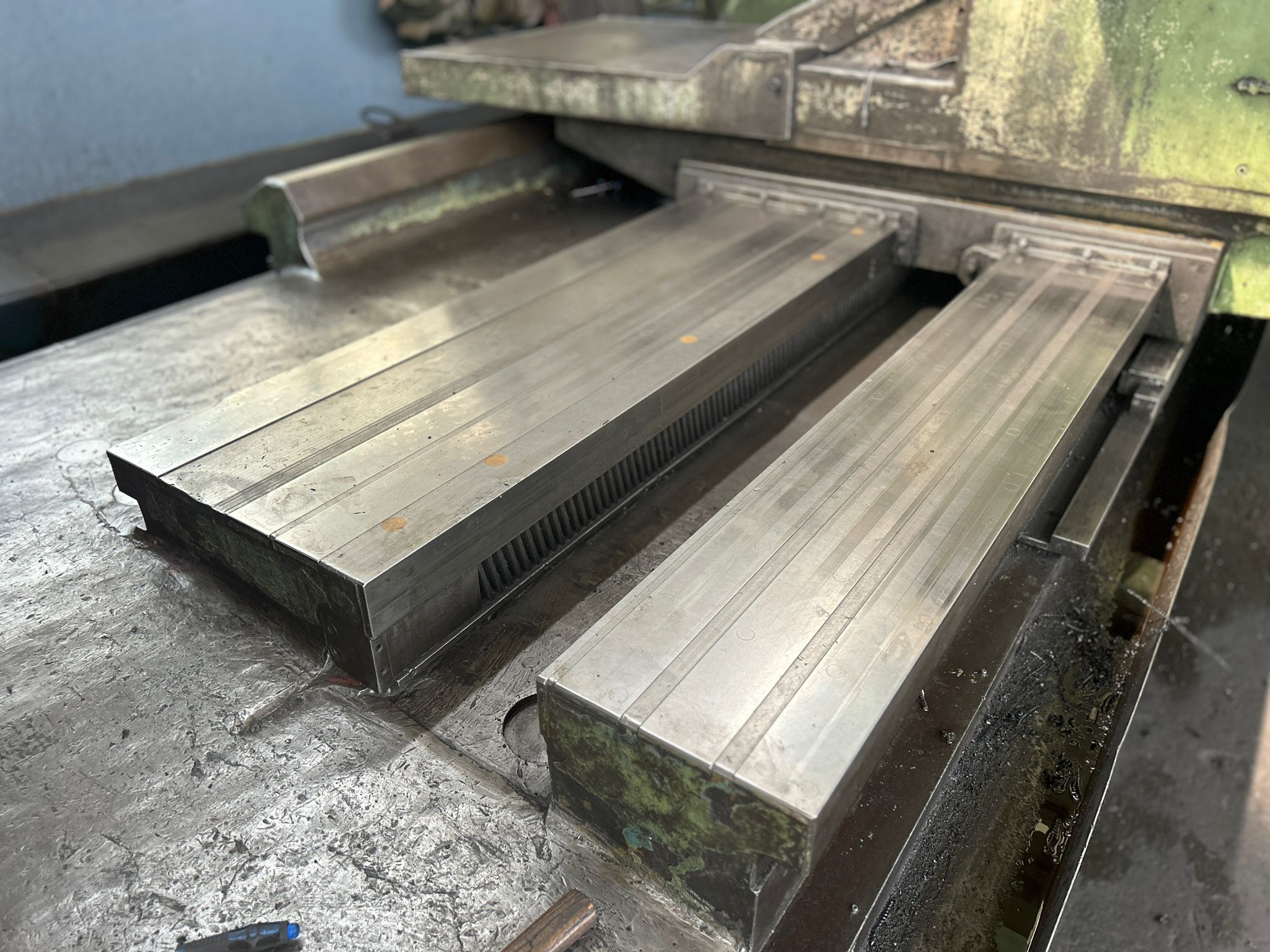

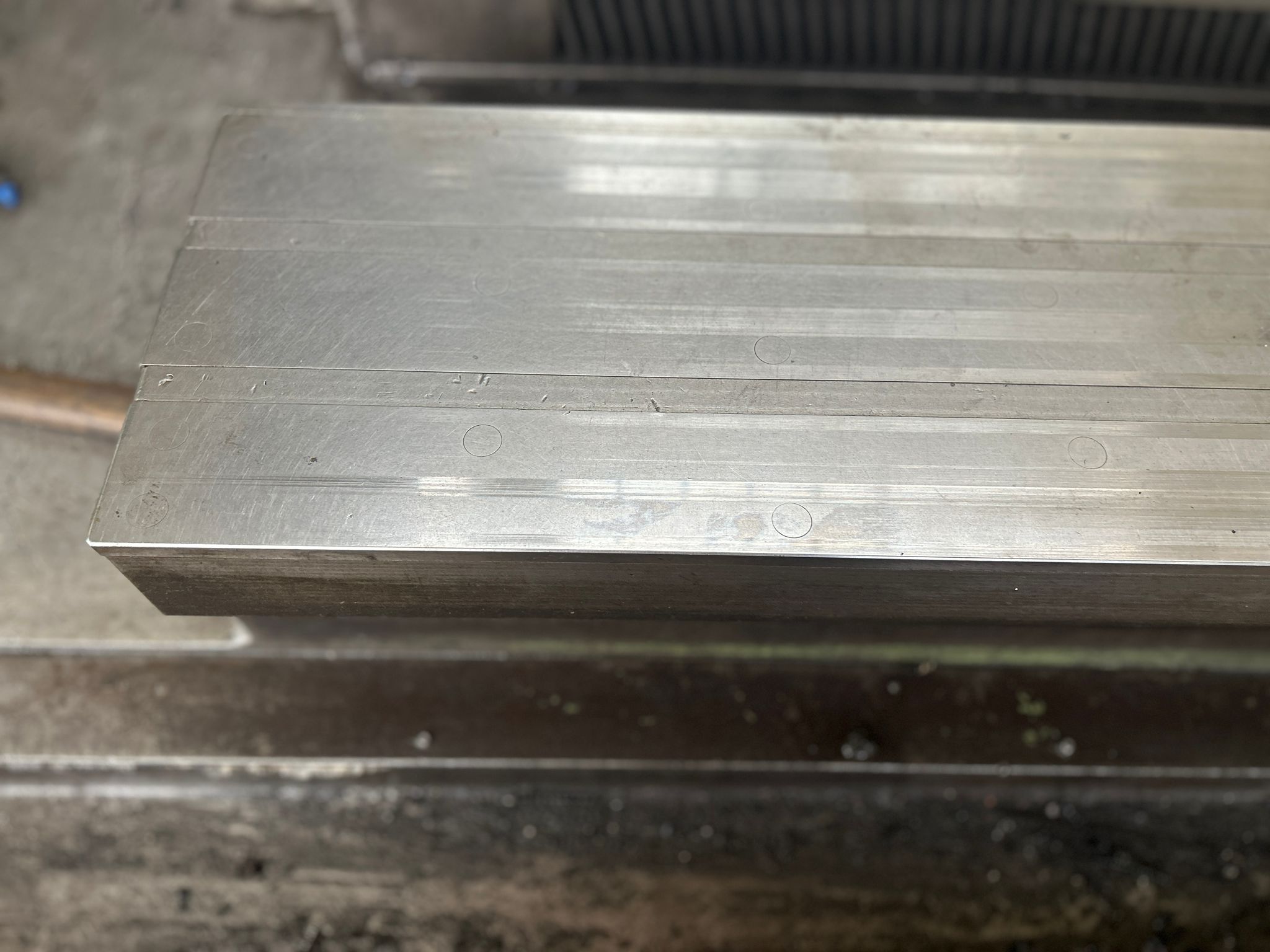

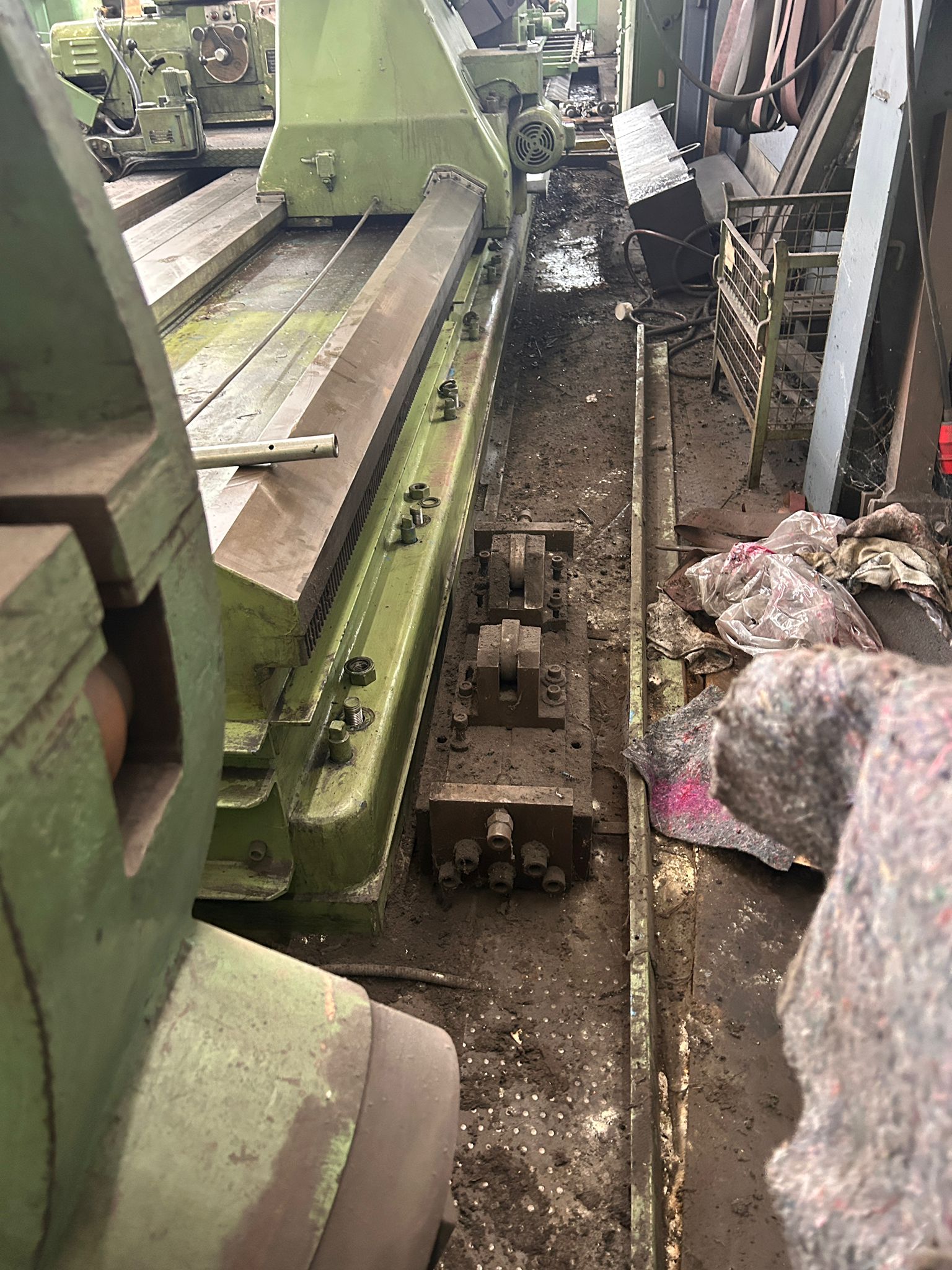

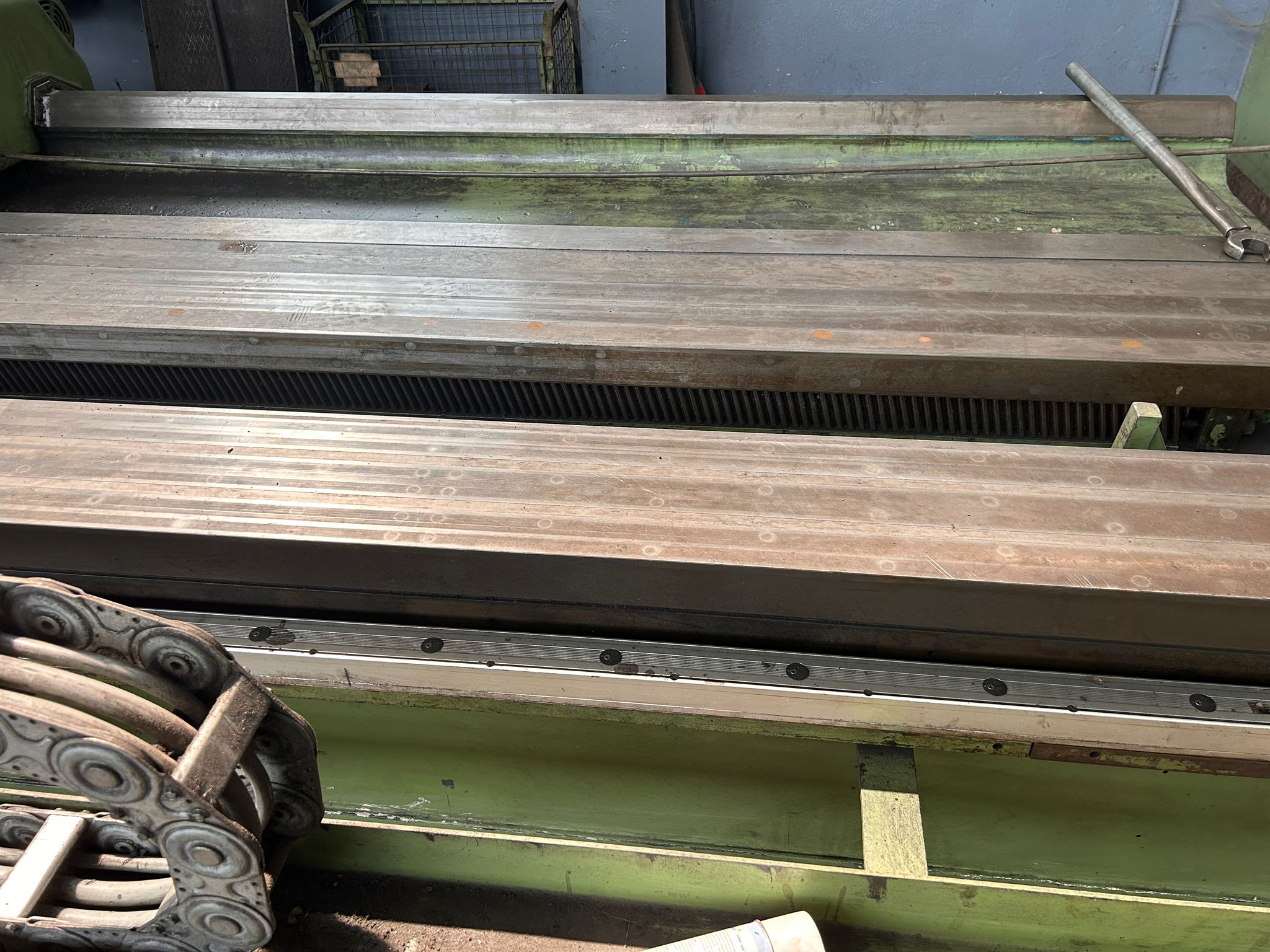

Bed width : approx. 1000 mm

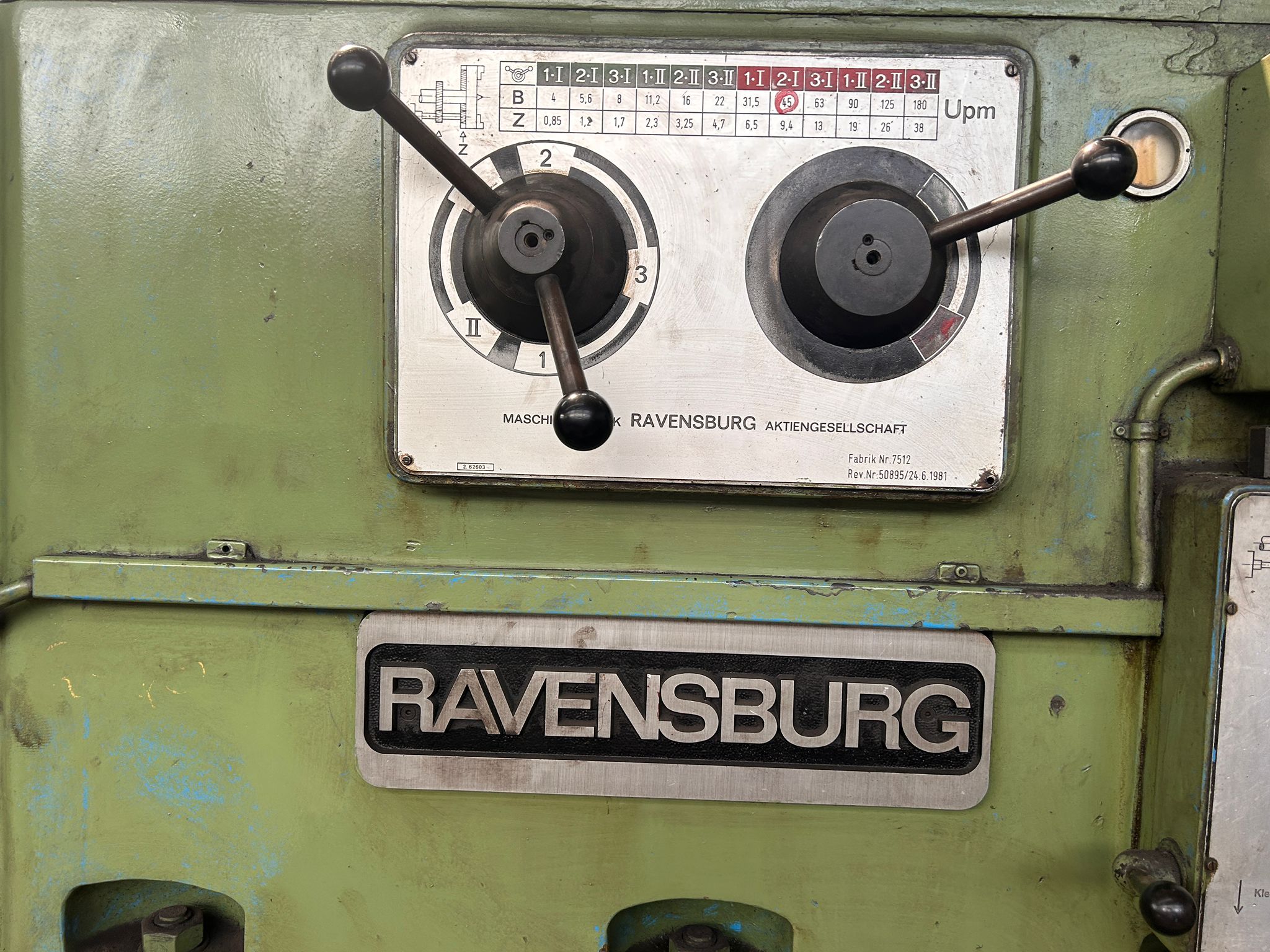

Speed range : 5.6 – 560 rpm
Feed range (Z / X) : 0.05 – 12 mm/rev

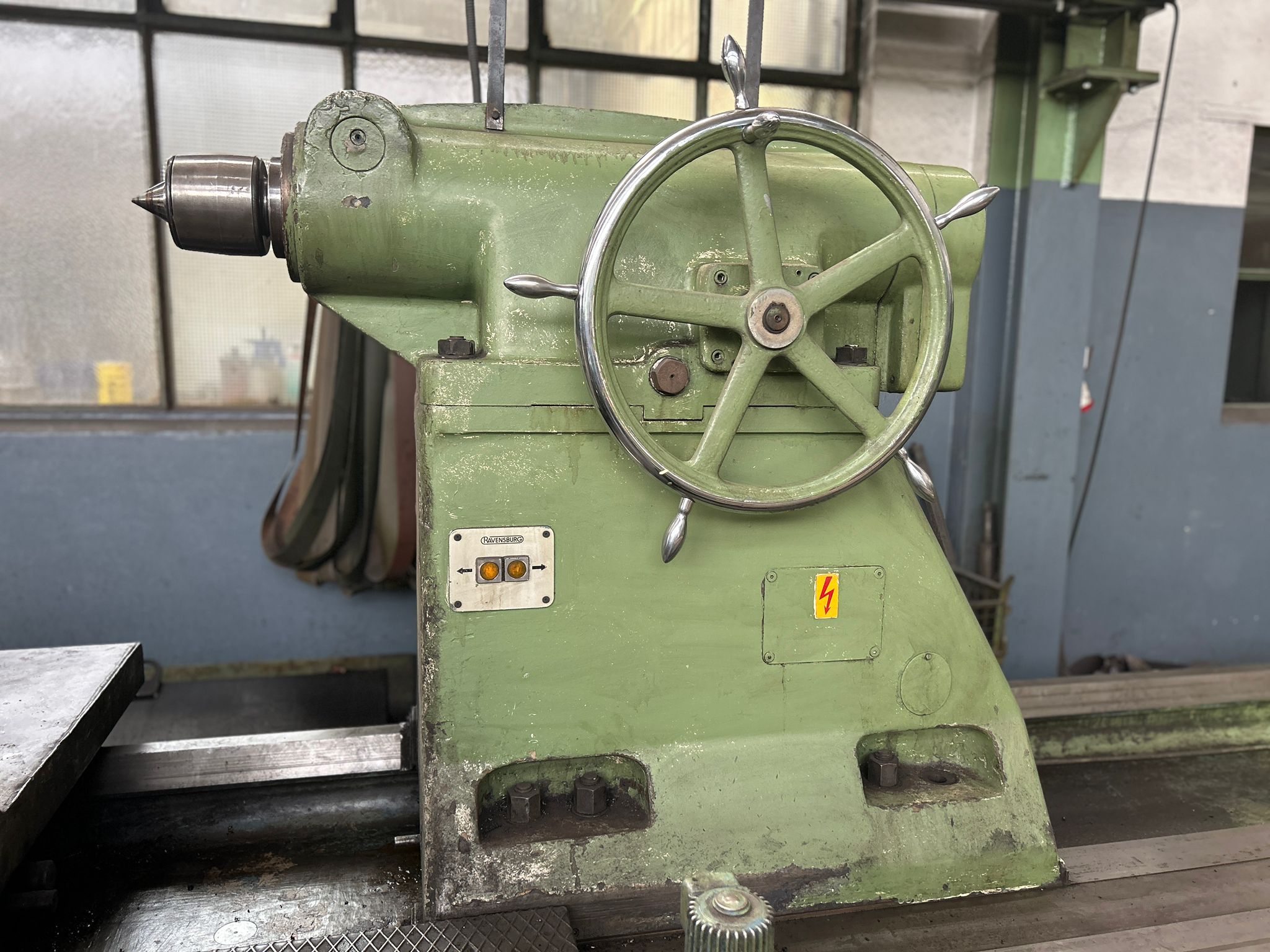

Tailstock quill Dia : 200 mm
Tailstock quill travel : 300 mm
Tailstock taper : Morse No. 6

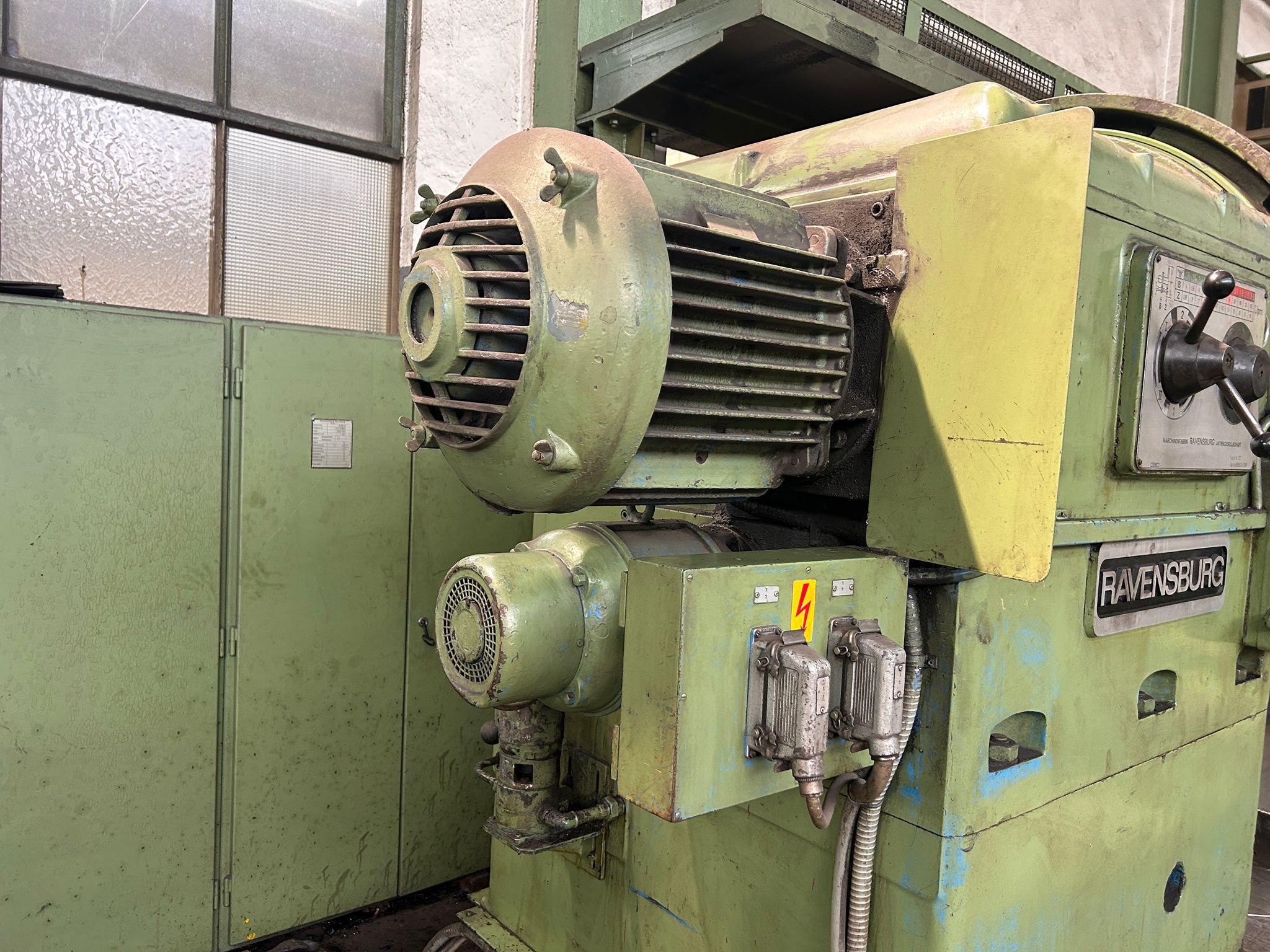

Main motor power : 30 – 45 kW
Dimension L x W x H : 8 000 x 2200 x 1800 mm
Machine weight : approx. 25 – 30 tons
