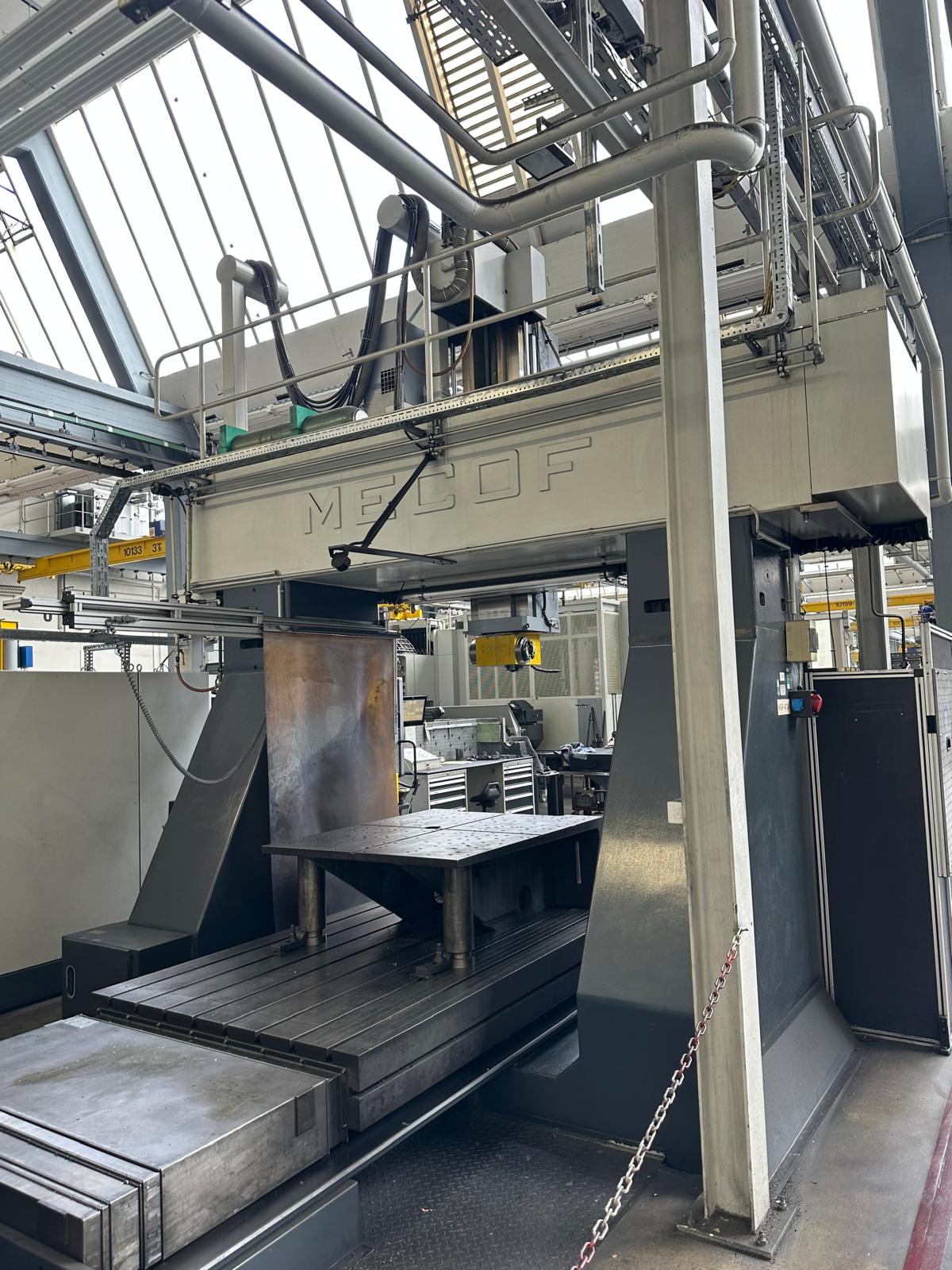

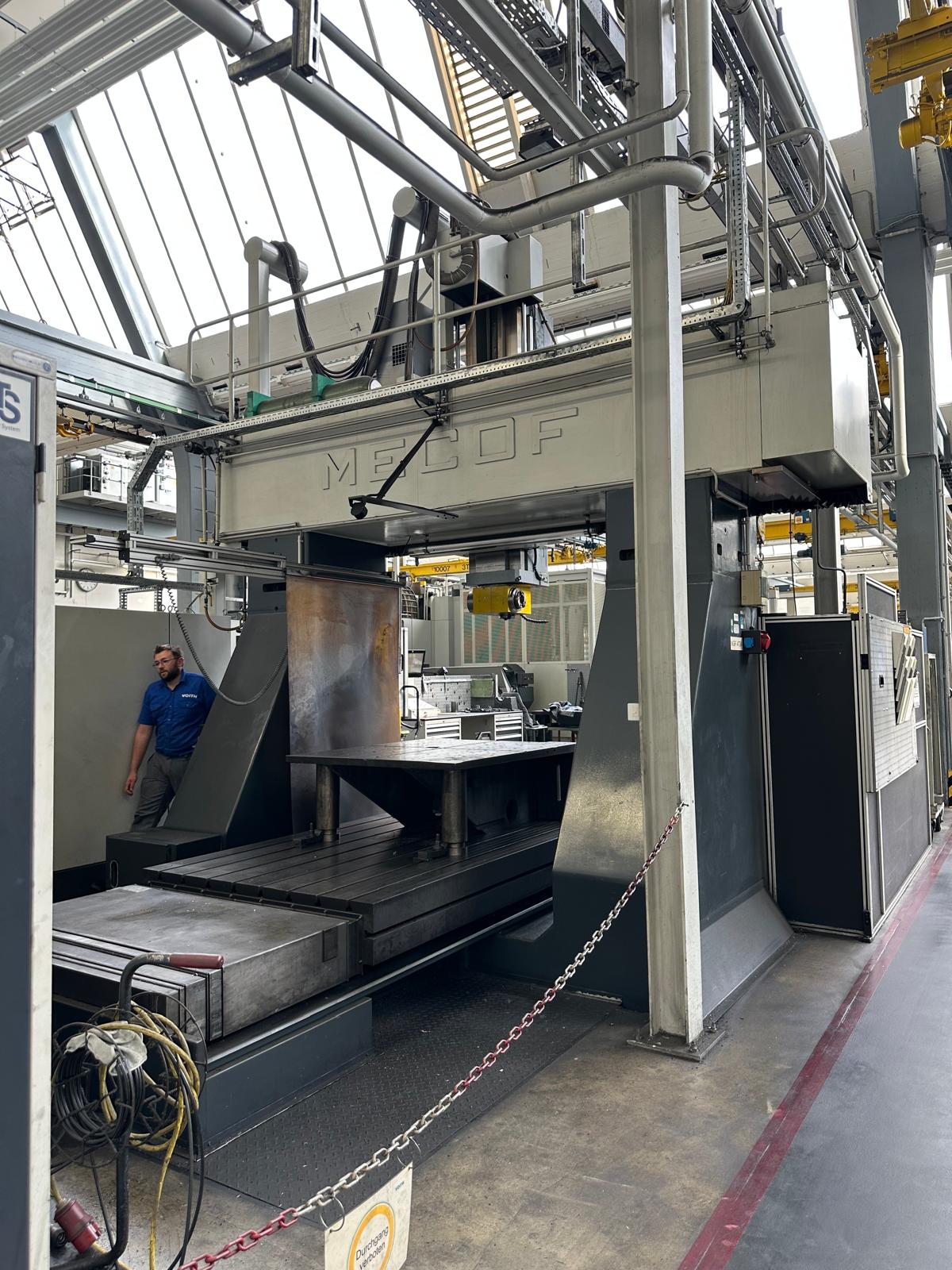

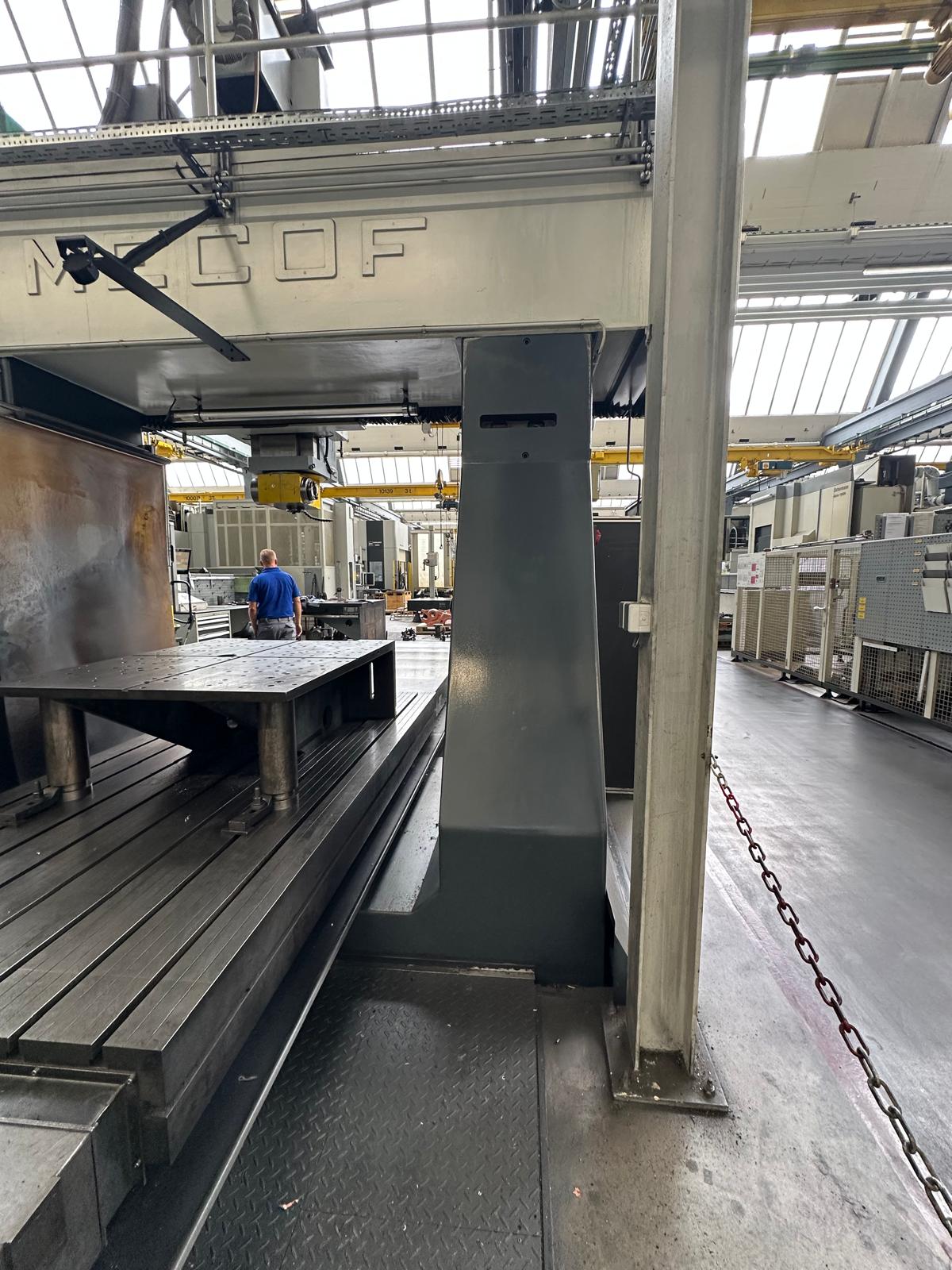

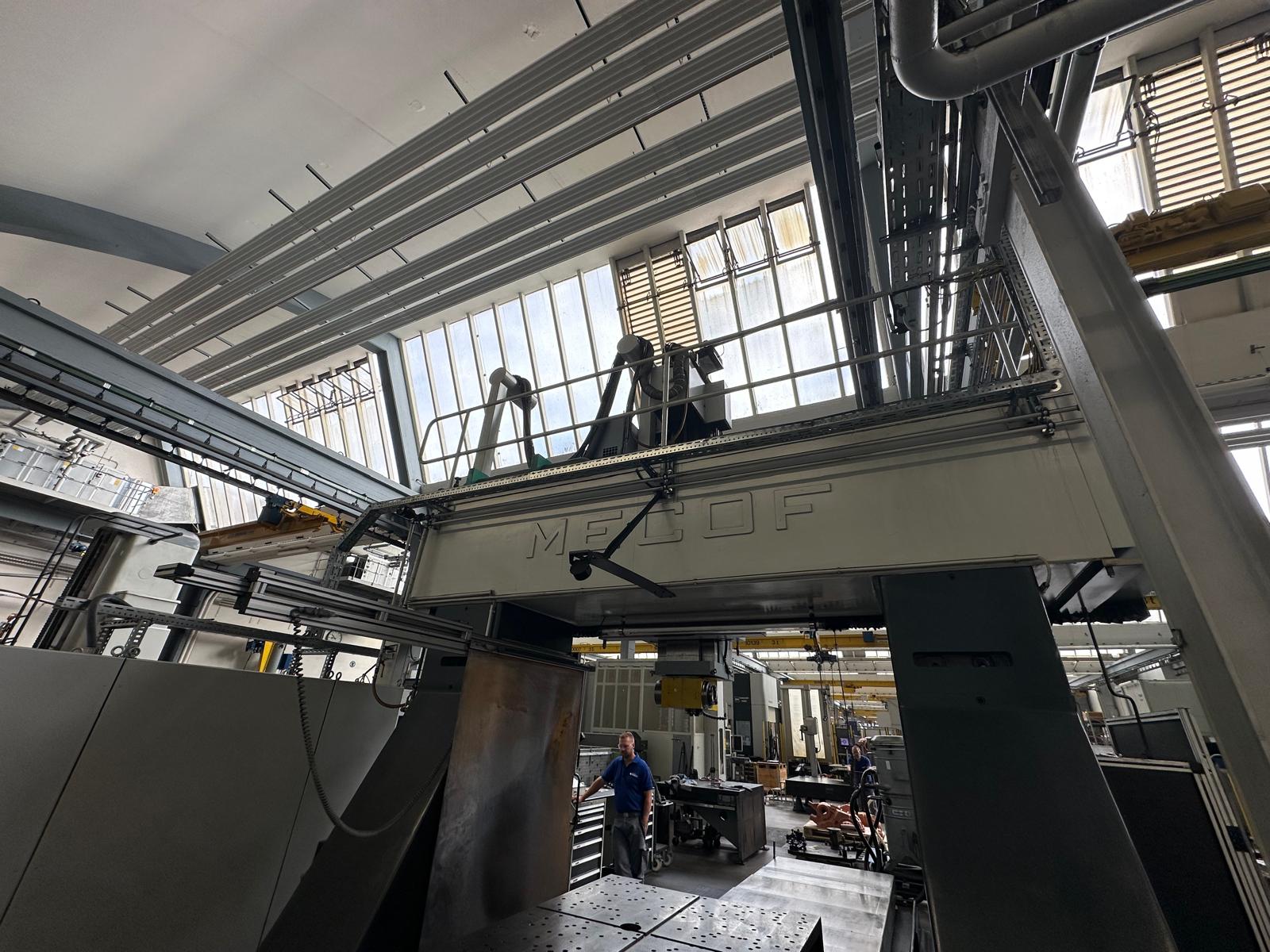

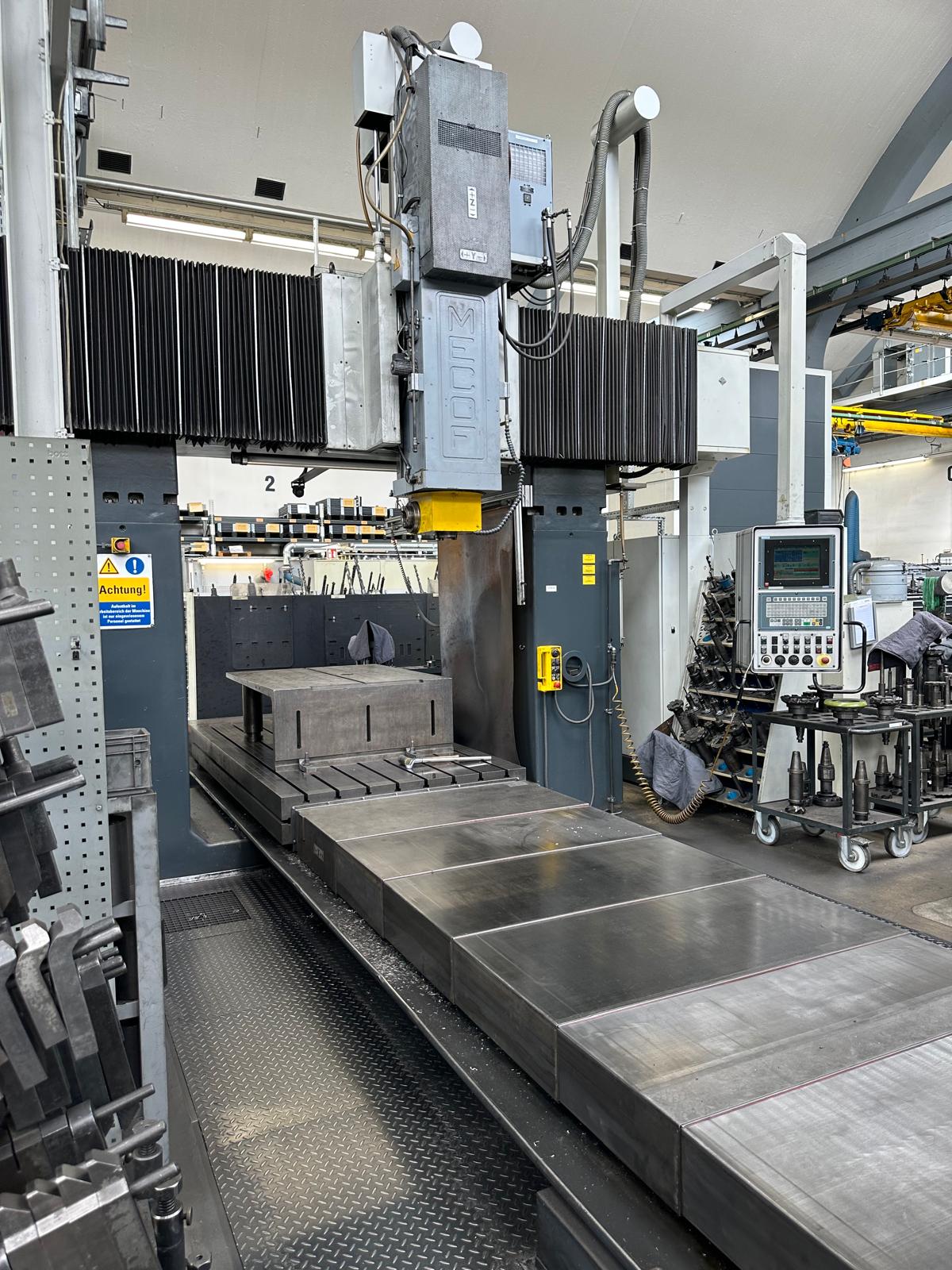

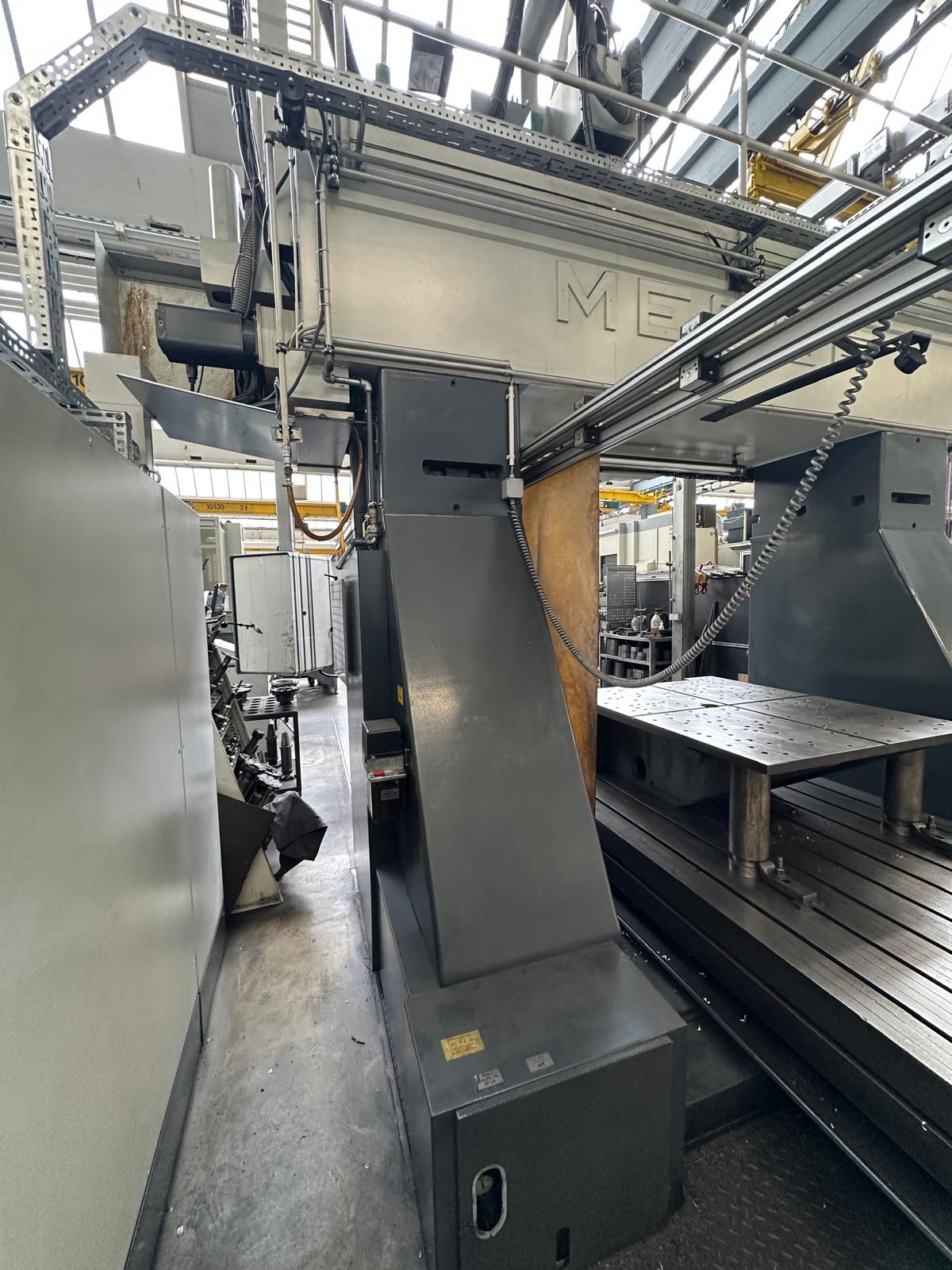

MECOF - CNC TABLE TYPE BORING MILL-FANC 22

Make : MECOF
Type  : FANC 22

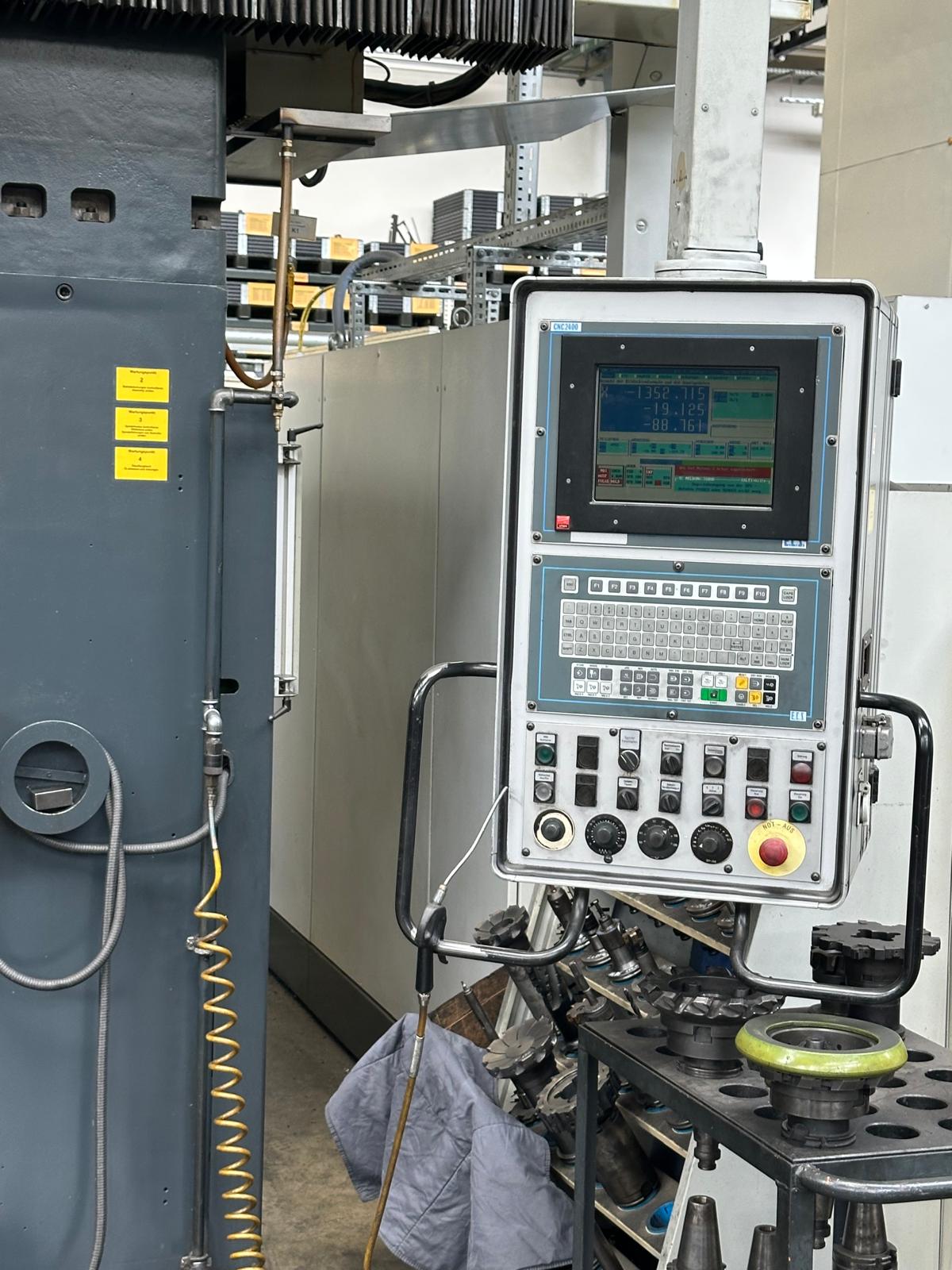

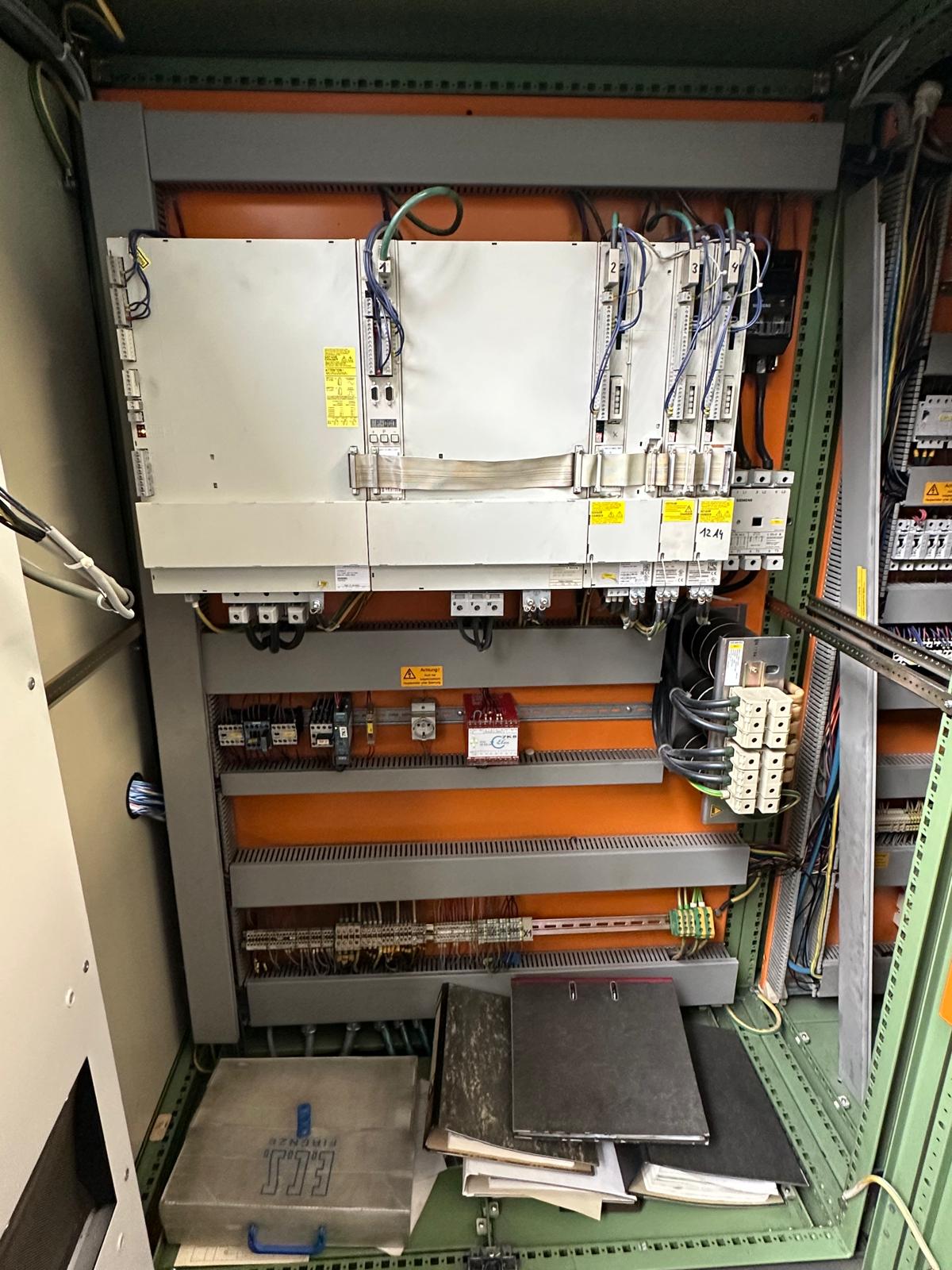

Control E.C.S. Siemens based

Technical data:

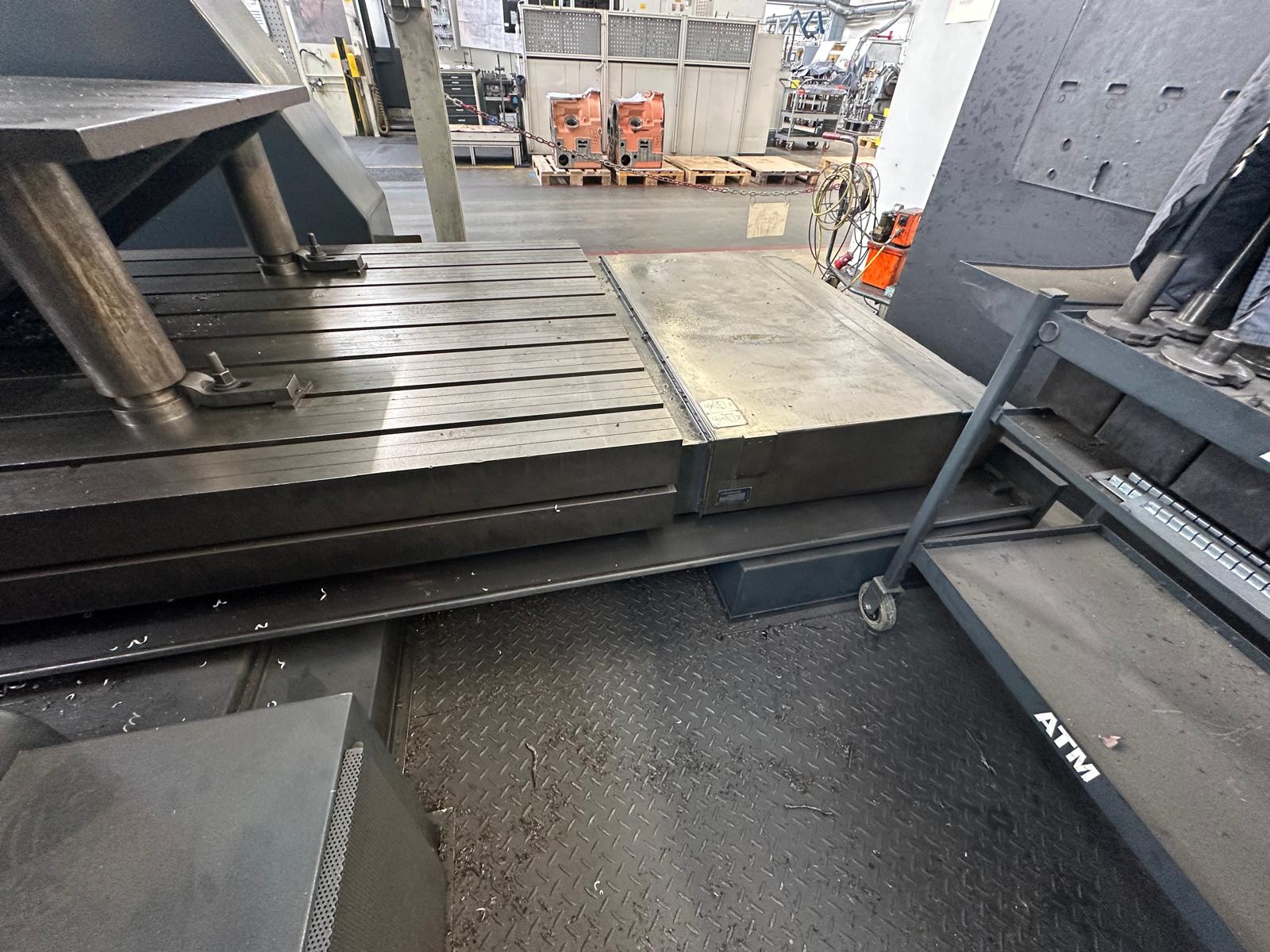

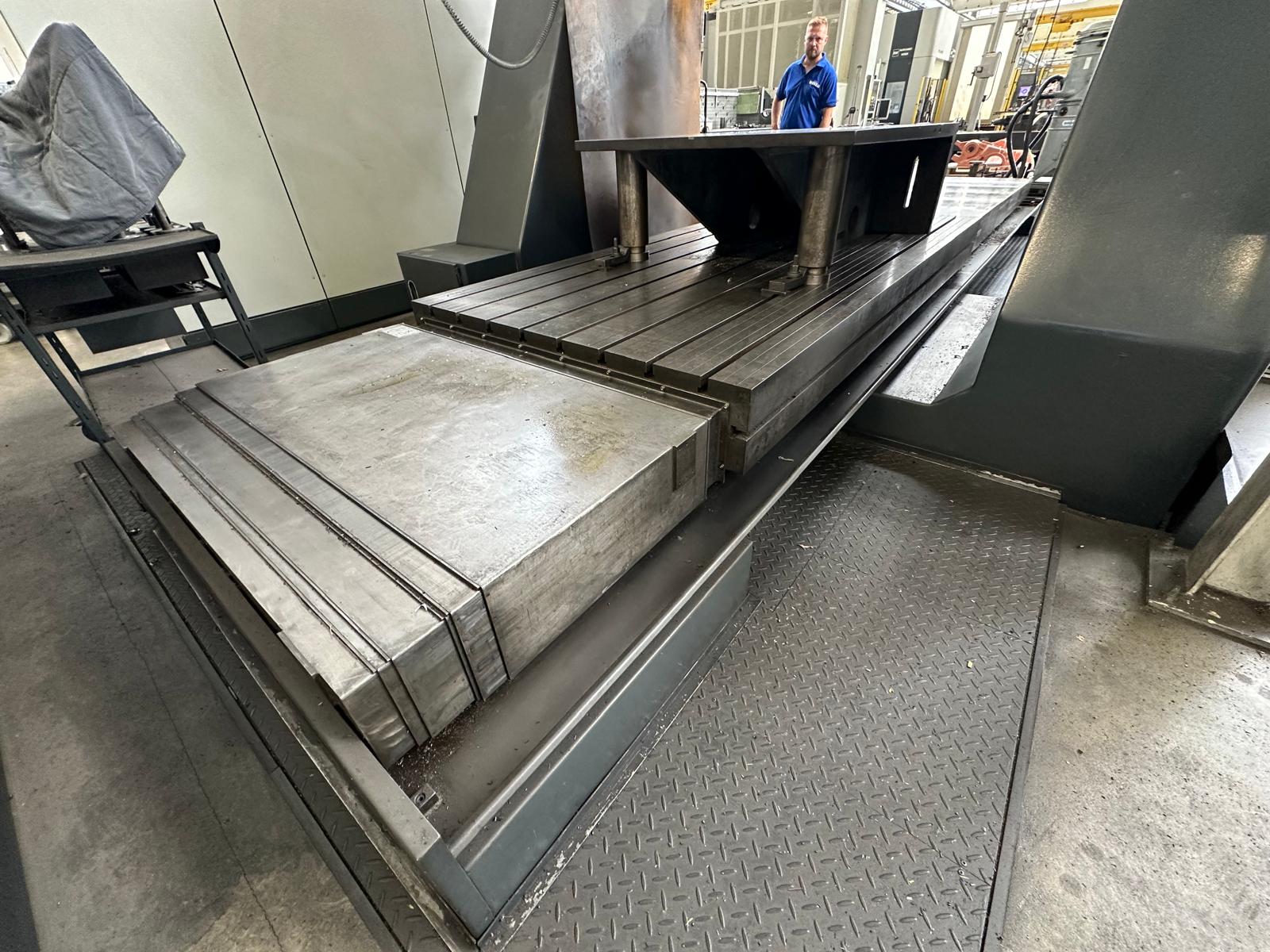

Table length 3.000 mm
Table width 1.500 mm
8 T-slots on table 22 mm
Distance between tee slots 175 mm
Distance between table and cross slide 1.140 mm
Was increased + 500 mm new 1.640 mm
Distance between colums 2.250 mm
max. Workpiece weight 6.000 kg
Spindle motor 36 kW
Spindle taper ISO 50 (UNI 3089)
Spindle speed 0 – 1042 rpm
X-Axis : 3.000 mm
Y-Axis : 2.200 mm
Z-Axis : 900 mm
Three D.C. servo motors of permanent magnets 3,3 kW
Infinitely variable all three axis; fast 0 – 5000 mm/min.
Infinitely variable all three axis; work 0 – 1000 mm/min.
Total weight of the machine appr. 28 to.

Connection to Power:
Electrical Connection 380 Volt / 50Hz
