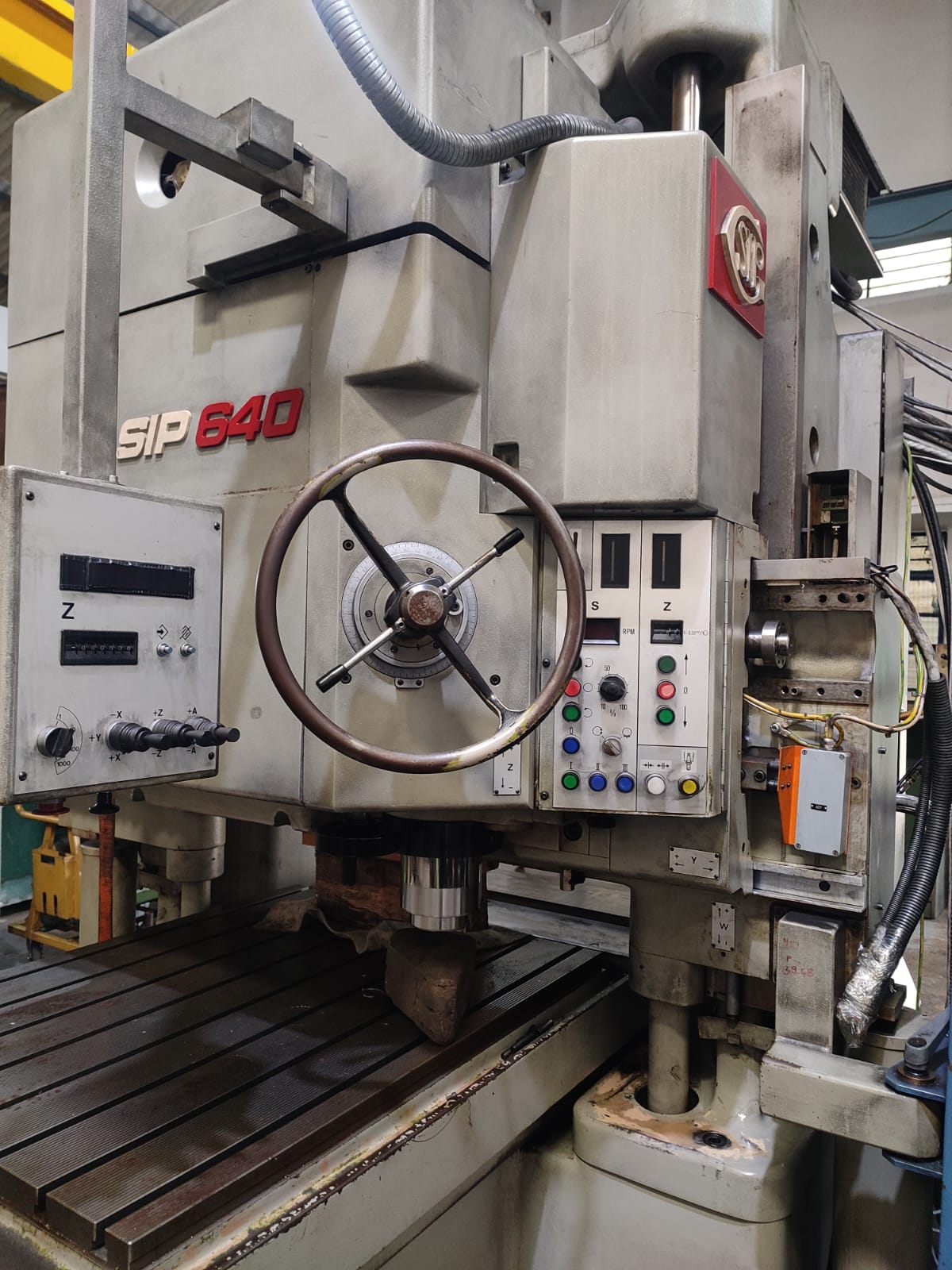

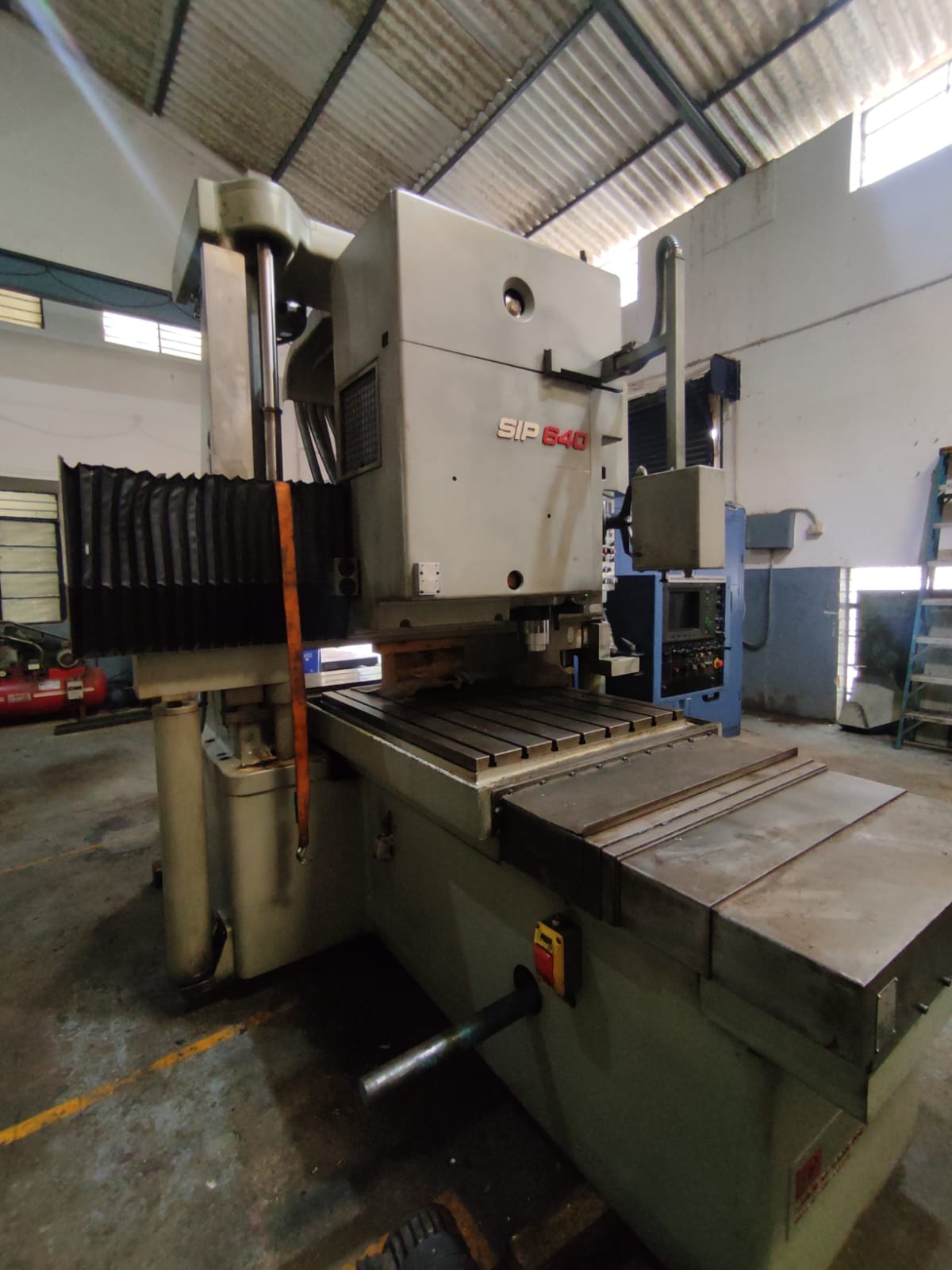

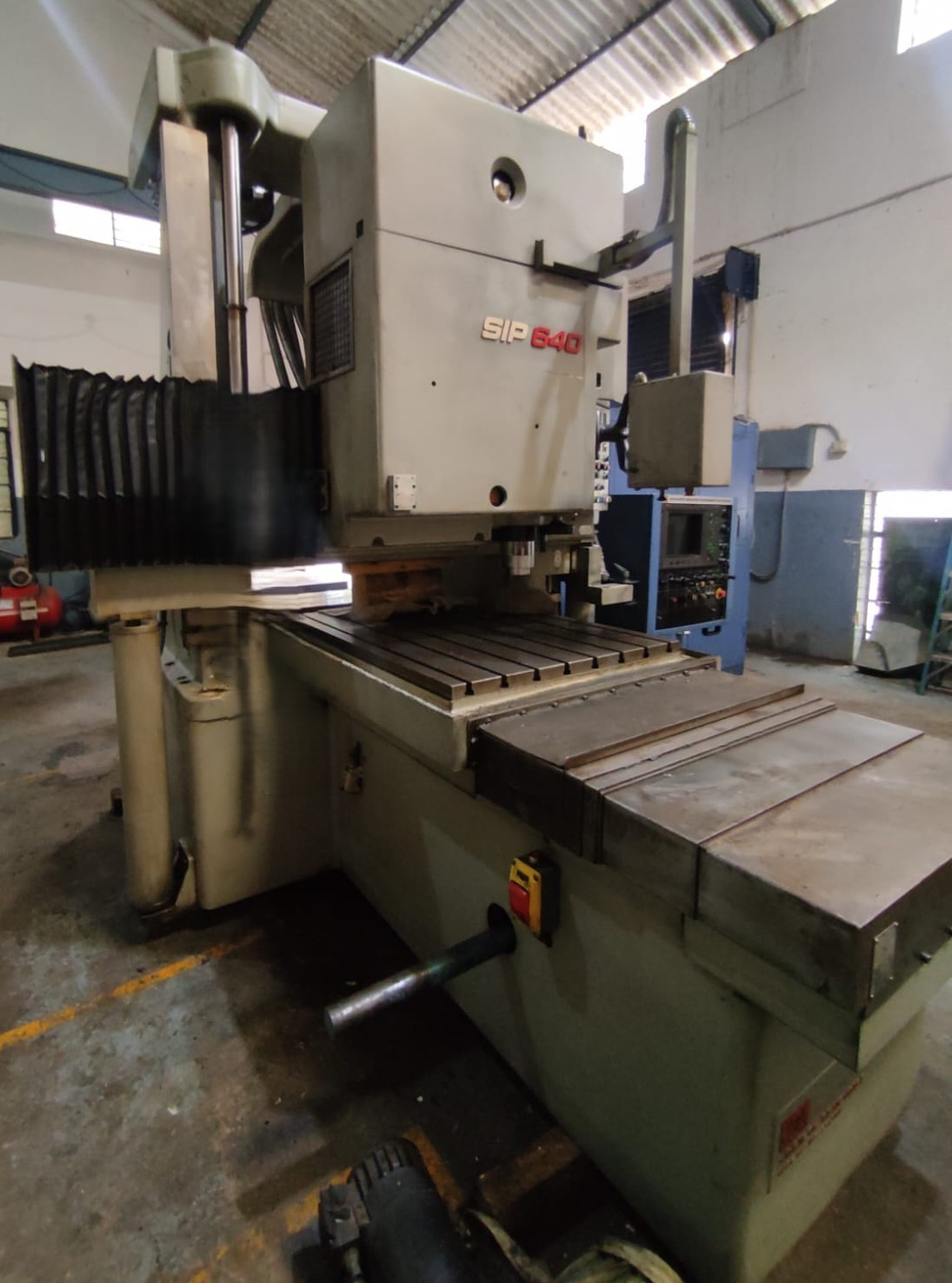

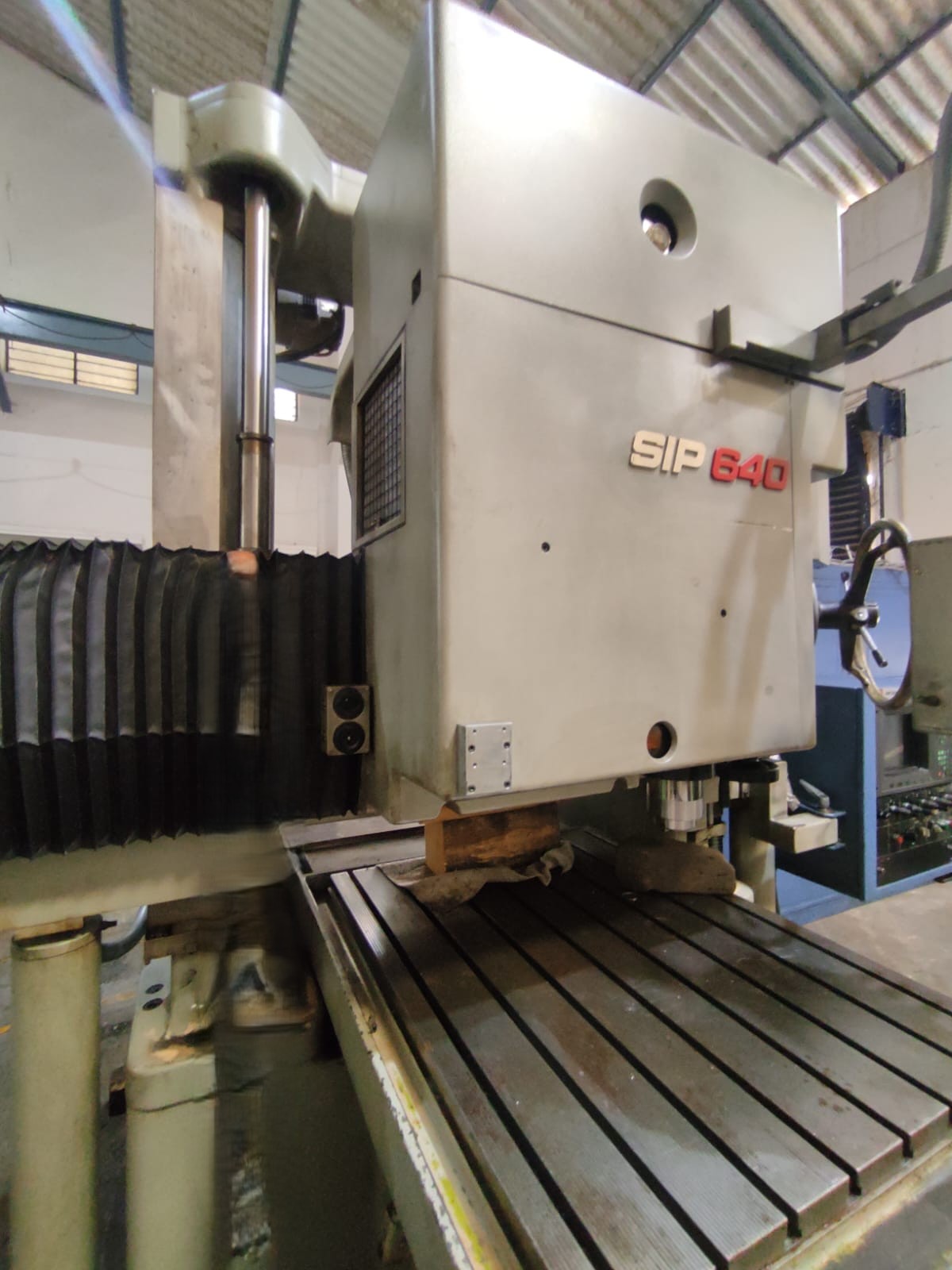

SIP CNC HIGH-PRECISION DOUBLE-COLUMN JIG BORING & MILLING MACHINE

SIP CNC HIGH-PRECISION DOUBLE-COLUMN JIG BORING & MILLING MACHINE-SIP - 640

Whatsapp Us

Machine Name: SIP CNC HIGH-PRECISION DOUBLE-COLUMN JIG BORING & MILLING MACHINE-SIP - 640

Manufacturer: SIP

Model: SIP - 640

Country: SWITZERLAND

Stock-no.: SEC00155

Technical Specifications

Make: SIP
Model: SIP-640
Country: Switzerland

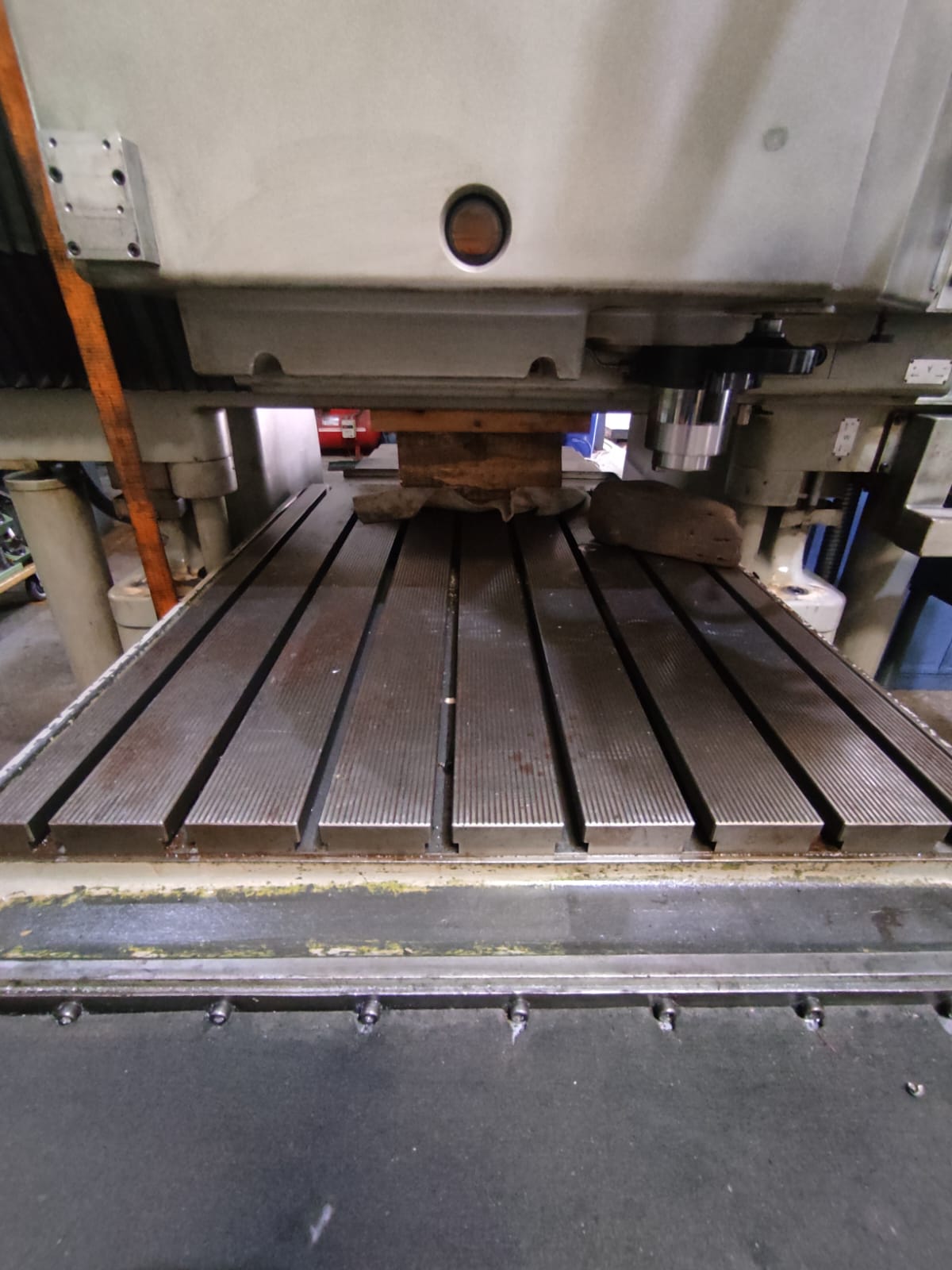

Table Size: 1100 × 842 mm
X / Y / Z / W Travel: 1000 / 700 / 300 / 780 mm

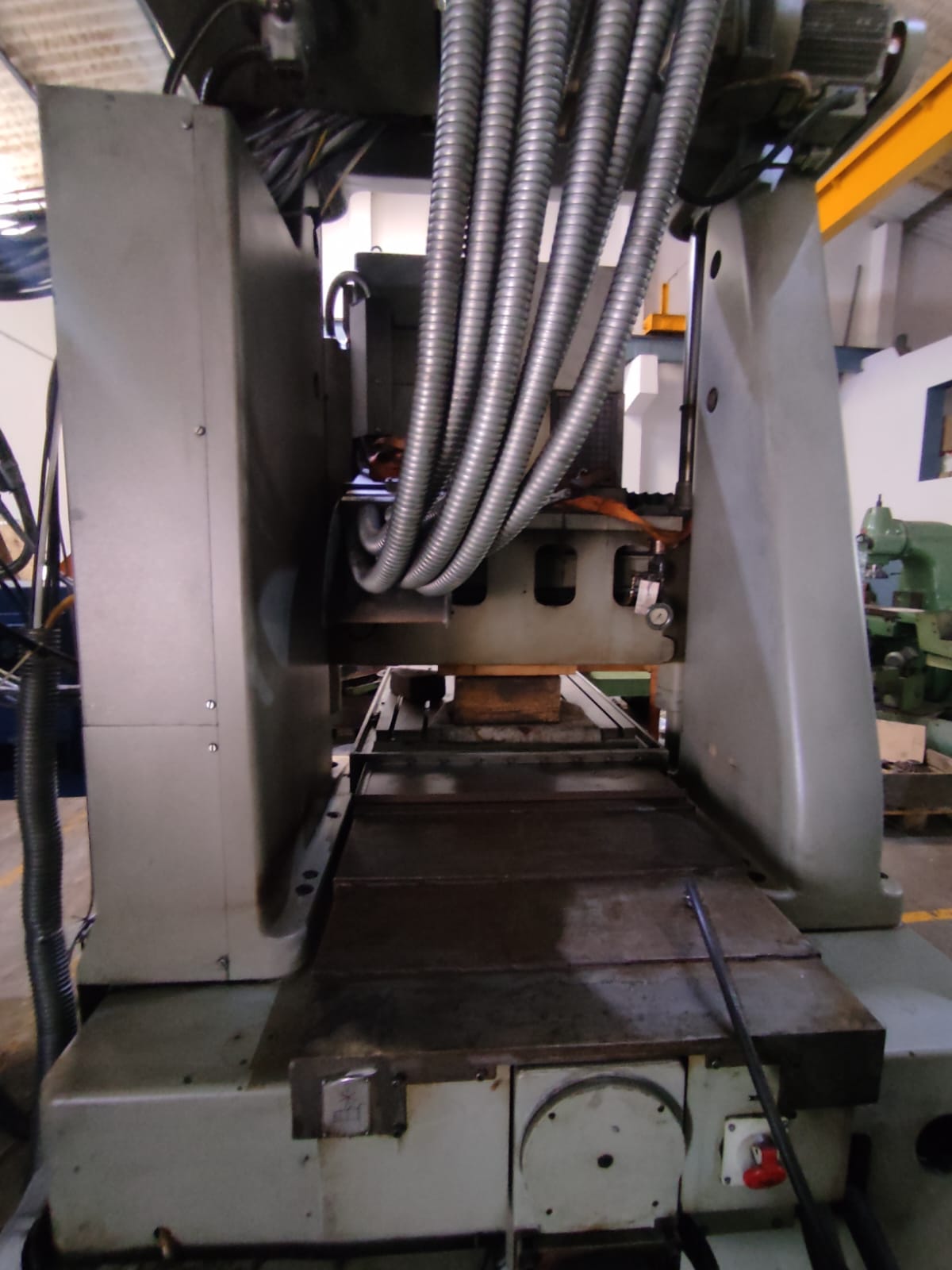

Distance Between Columns: 1100 mm
Max Distance (Table to Spindle Nose): 1000 mm
Table Height: 940 mm
Table Load Capacity: 1500 kg
T-Slots: 8 × 16 mm (106 mm Pitch)
Spindle Speed: 20–3000 rpm
Spindle Motor: 6.5 kW
Spindle Sleeve Diameter: 135 mm

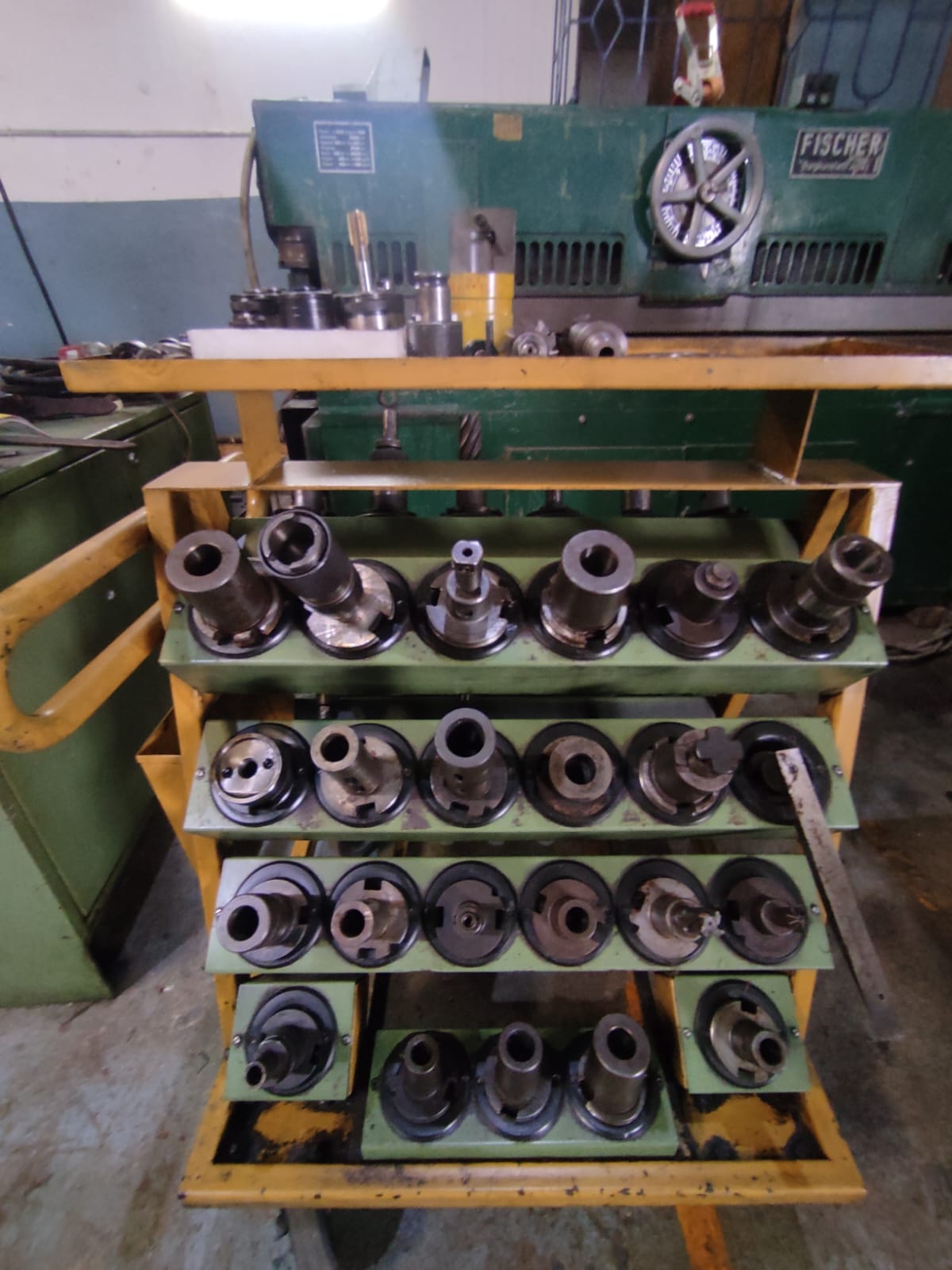

Spindle Taper: ISO 40
Rapid Traverse: 6 m/min
Feed Rate: 0.001–6000 mm/min
Feed Motor: 1.5 kW

Download pdf
