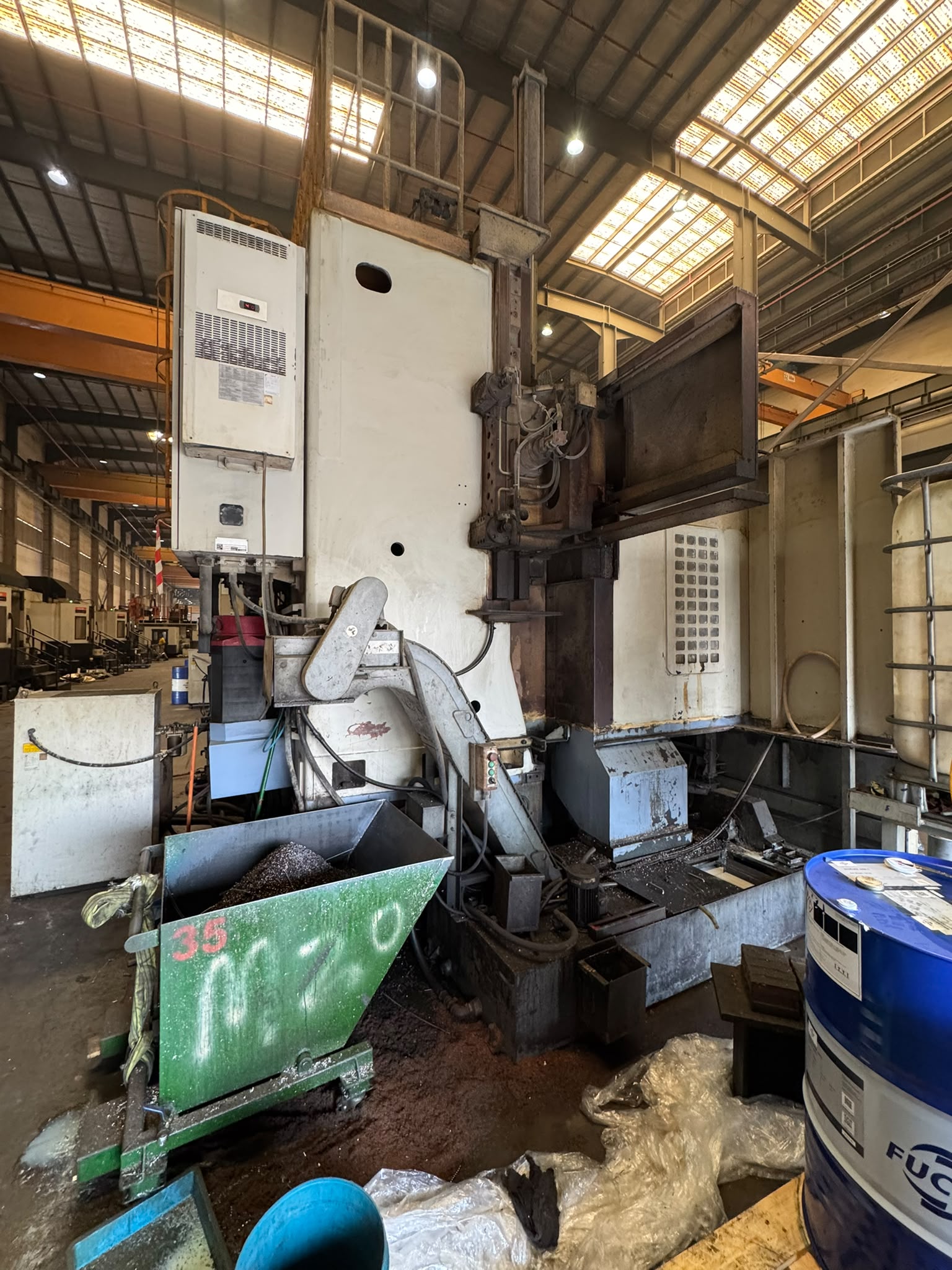

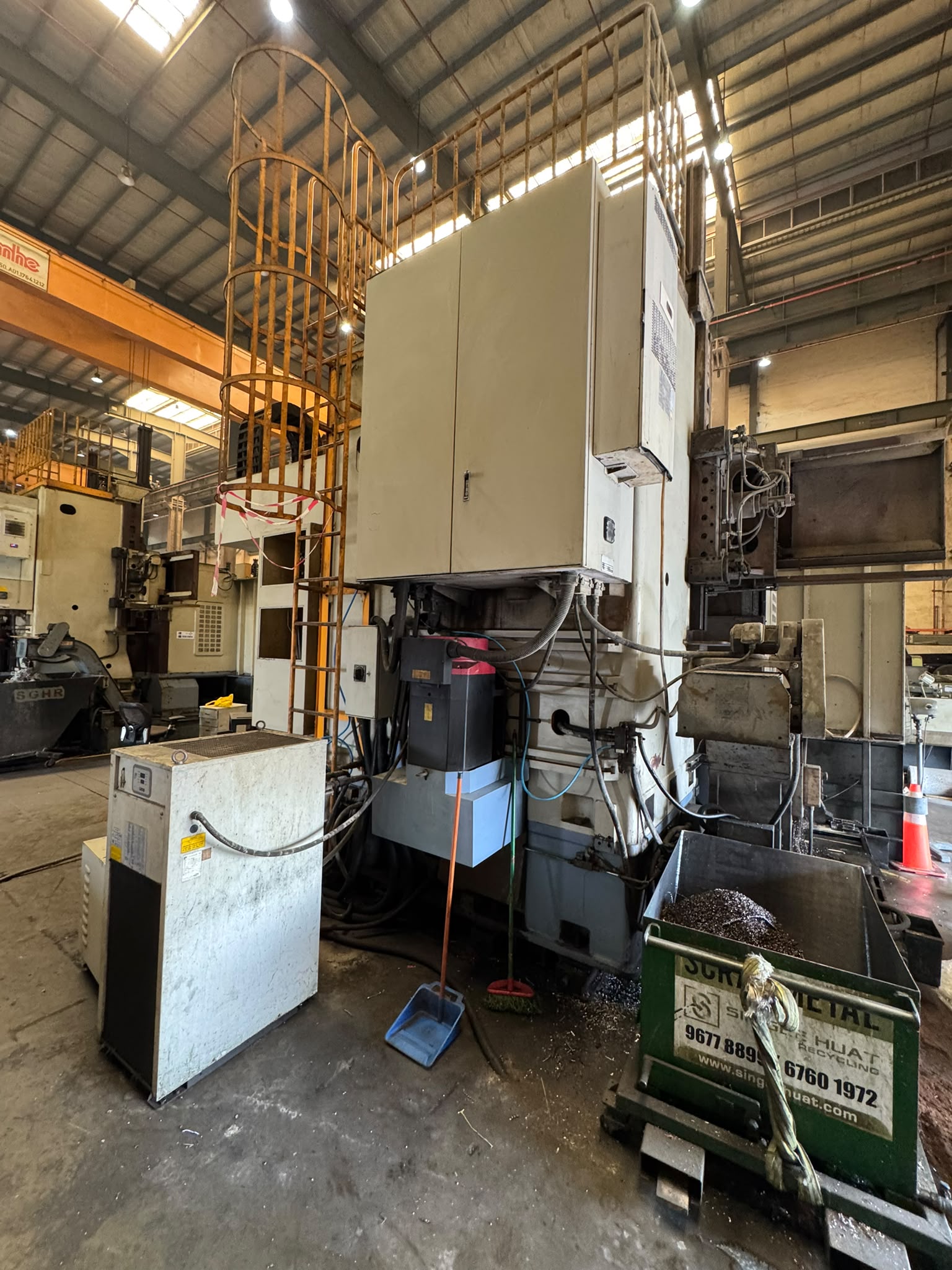

MASIMA - CNC VERTICAL LATHE MACHINE-EVL-16

Make: Masima

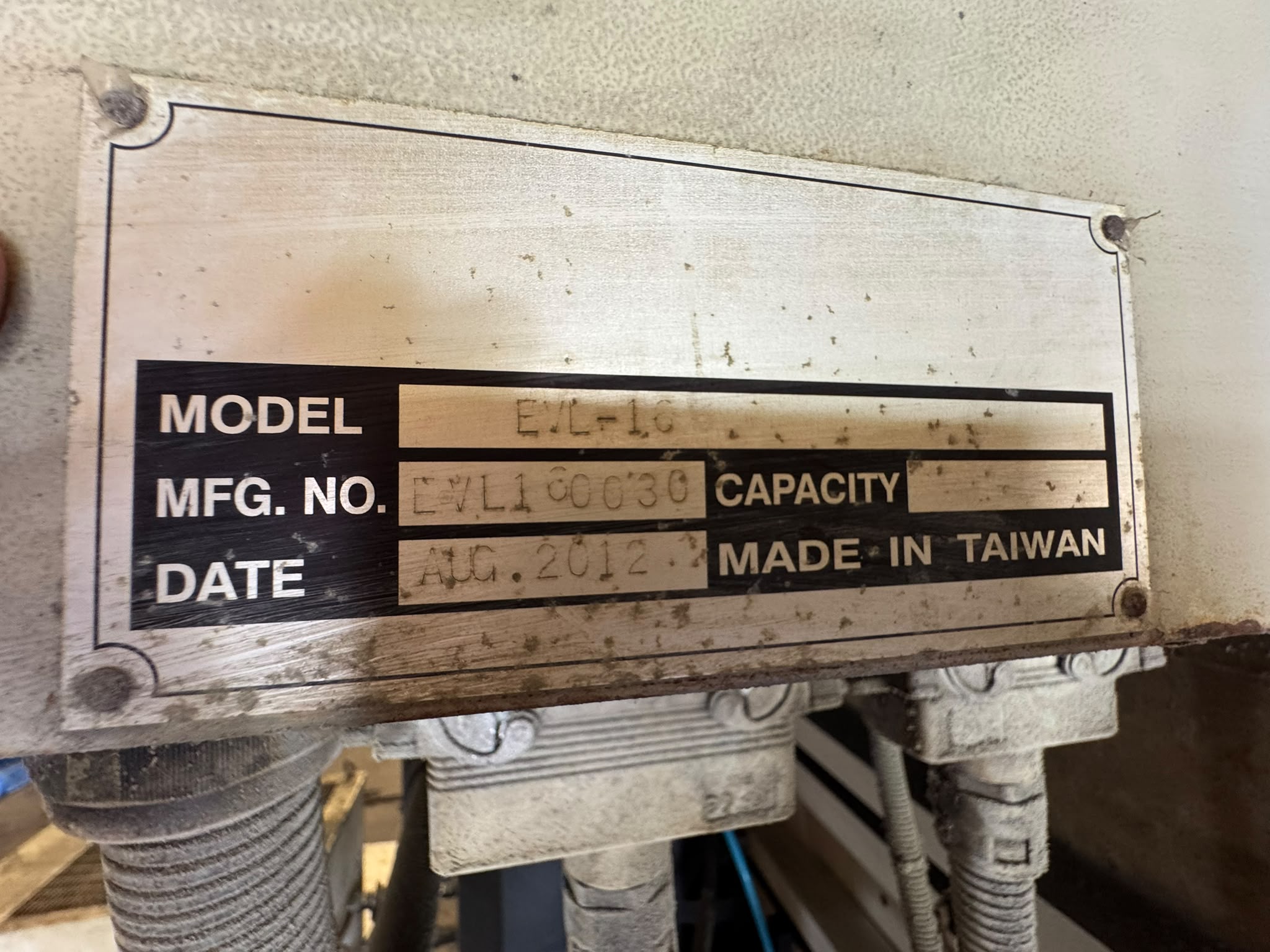

Model: EVL-16
Type: CNC Vertical Lathe

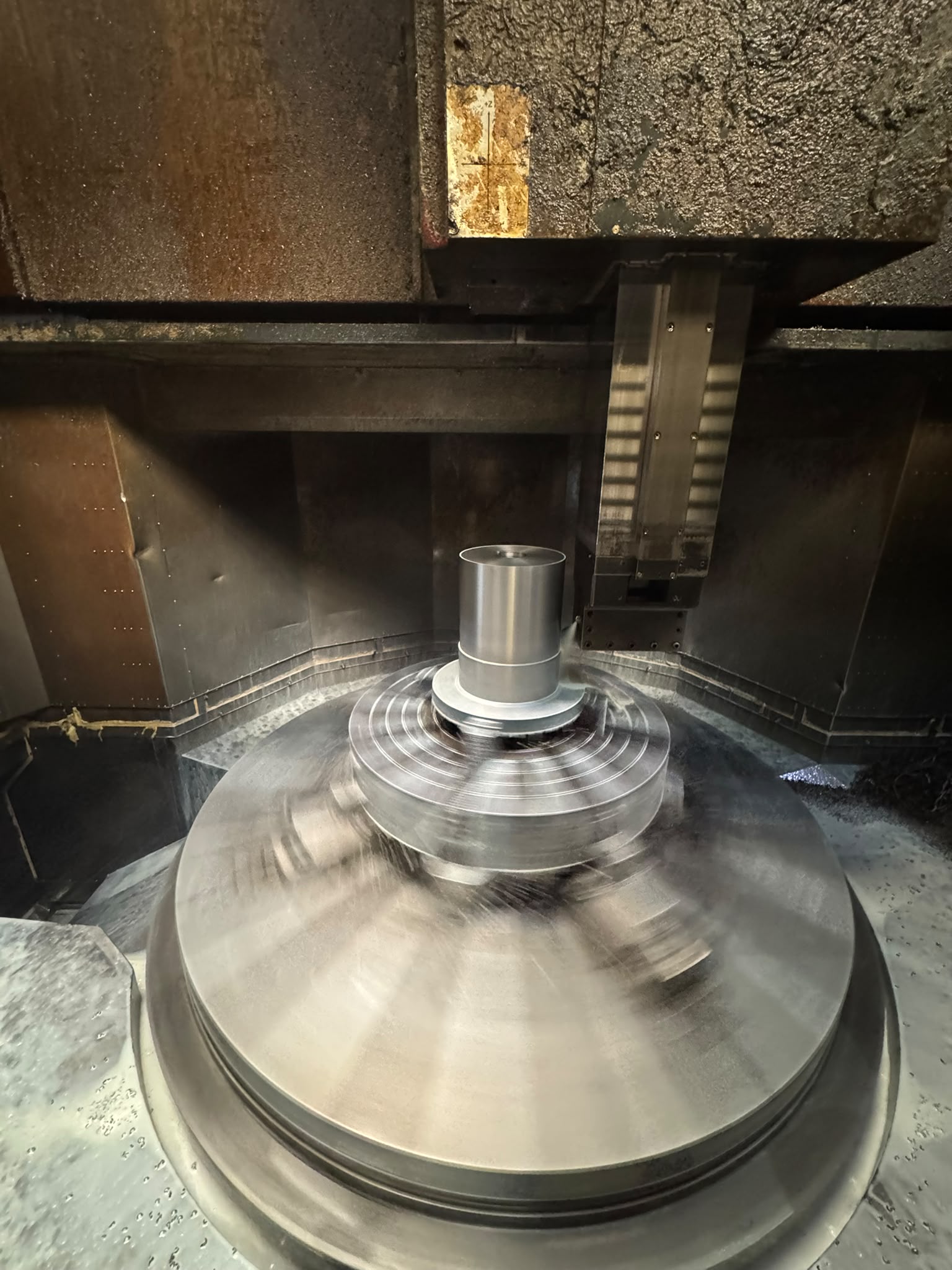

Table Diameter: Ø1,600 mm
Maximum Swing: Ø2,000 mm
Maximum Turning Diameter: Ø1,900 mm
Maximum Turning Height: 1,600 mm
Maximum Workpiece Weight: 14,000 kg
Maximum Table Torque: 18,790 N·m
X-Axis Travel: L200 – R1125 mm
Z-Axis Travel: 1,000 mm (1,200 mm option)
Ram Cross Section: 240 × 270 mm
Minimum ID for Ram Passage: Ø300 mm
Table Speed: 1–60 / 2–250 rpm
Crossrail Travel: 800 mm
Crossrail Positioning: 200 mm × 5 steps
Tool Shank: 32 × 32 mm
X Rapid Traverse: 24 m/min
Z Rapid Traverse: 24 m/min
X/Z Servo Motor: 6 kW
Table Main Motor: Approx. 37/30 kW

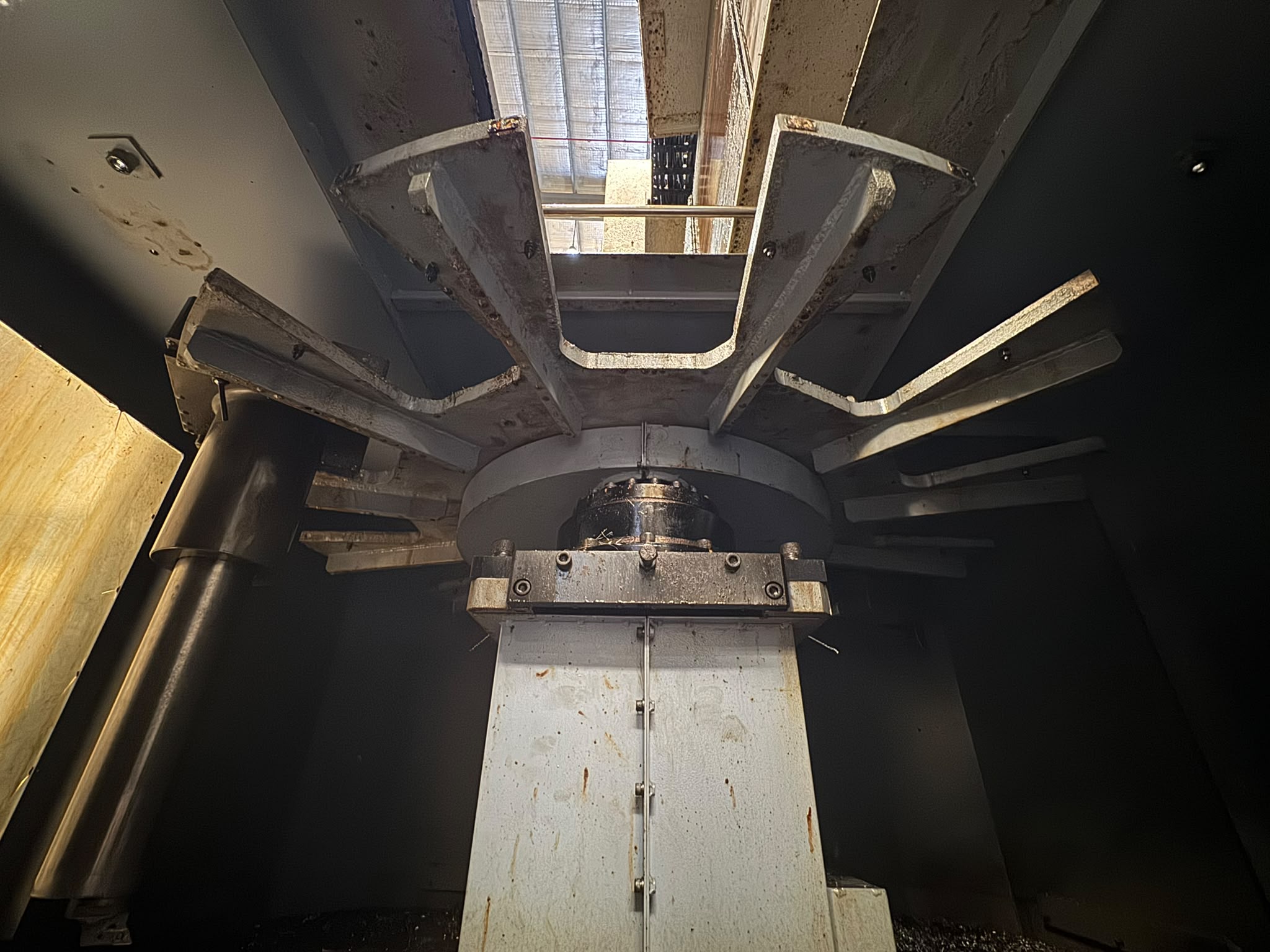

ATC: 12 Tools

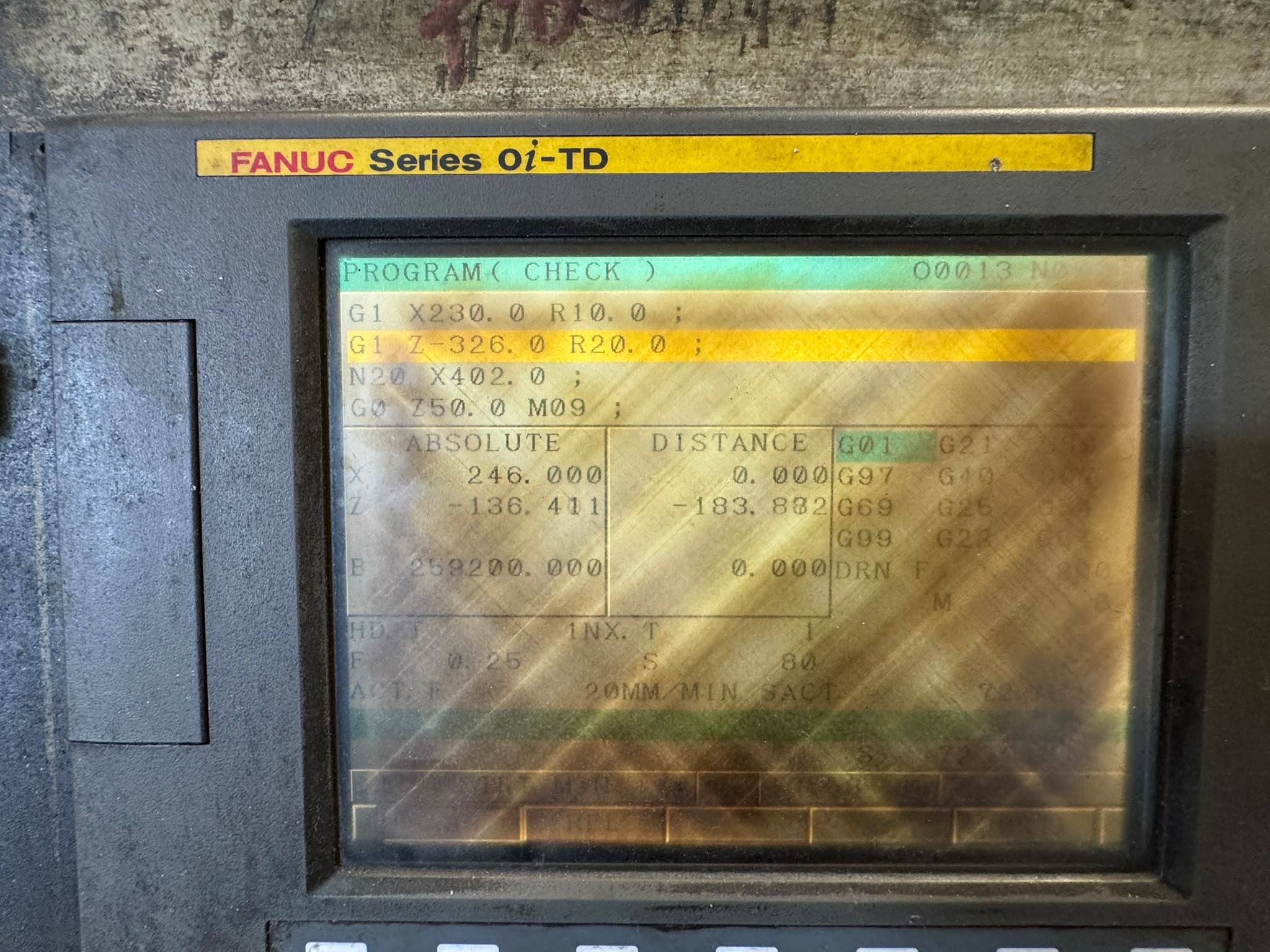

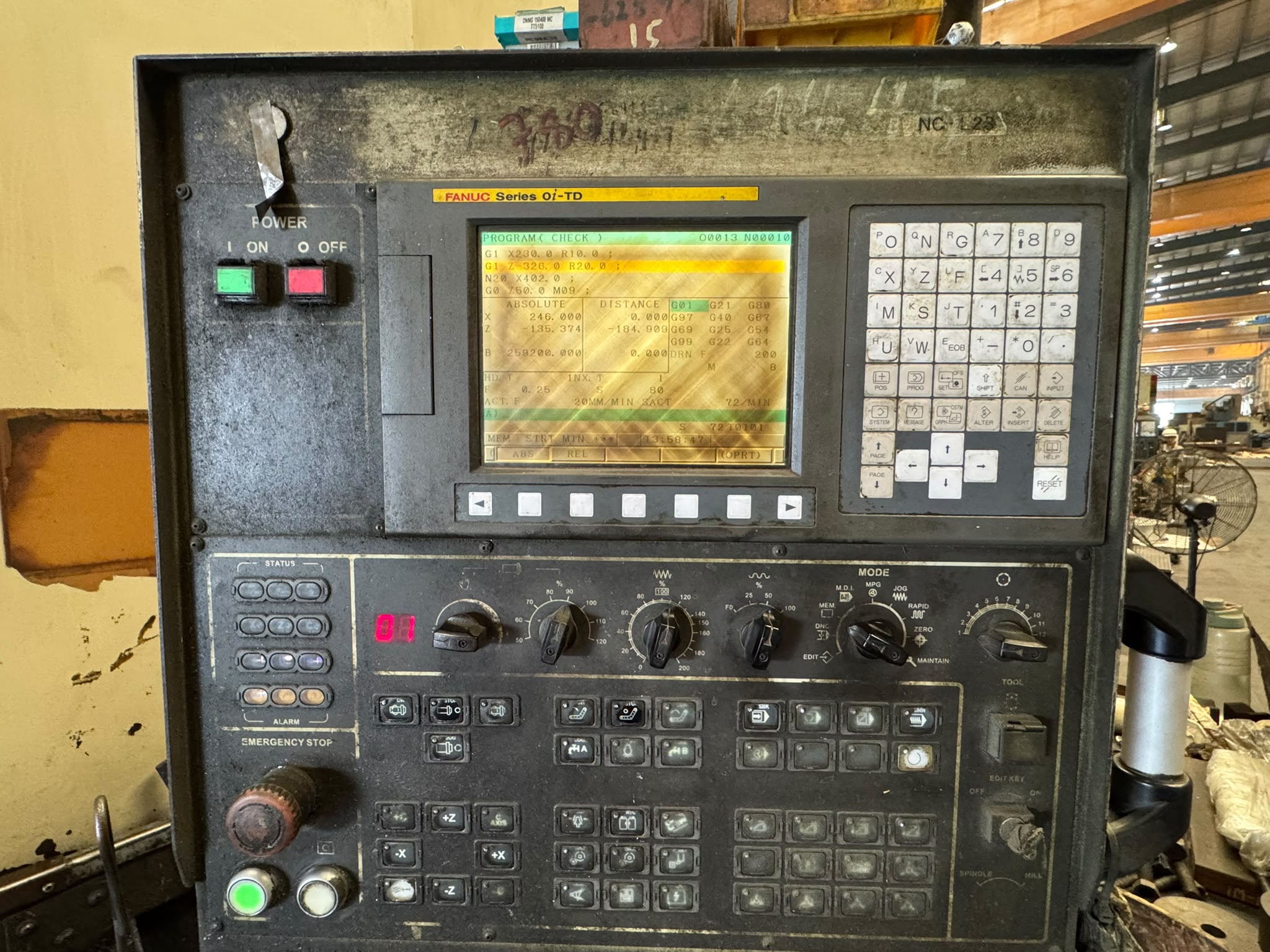

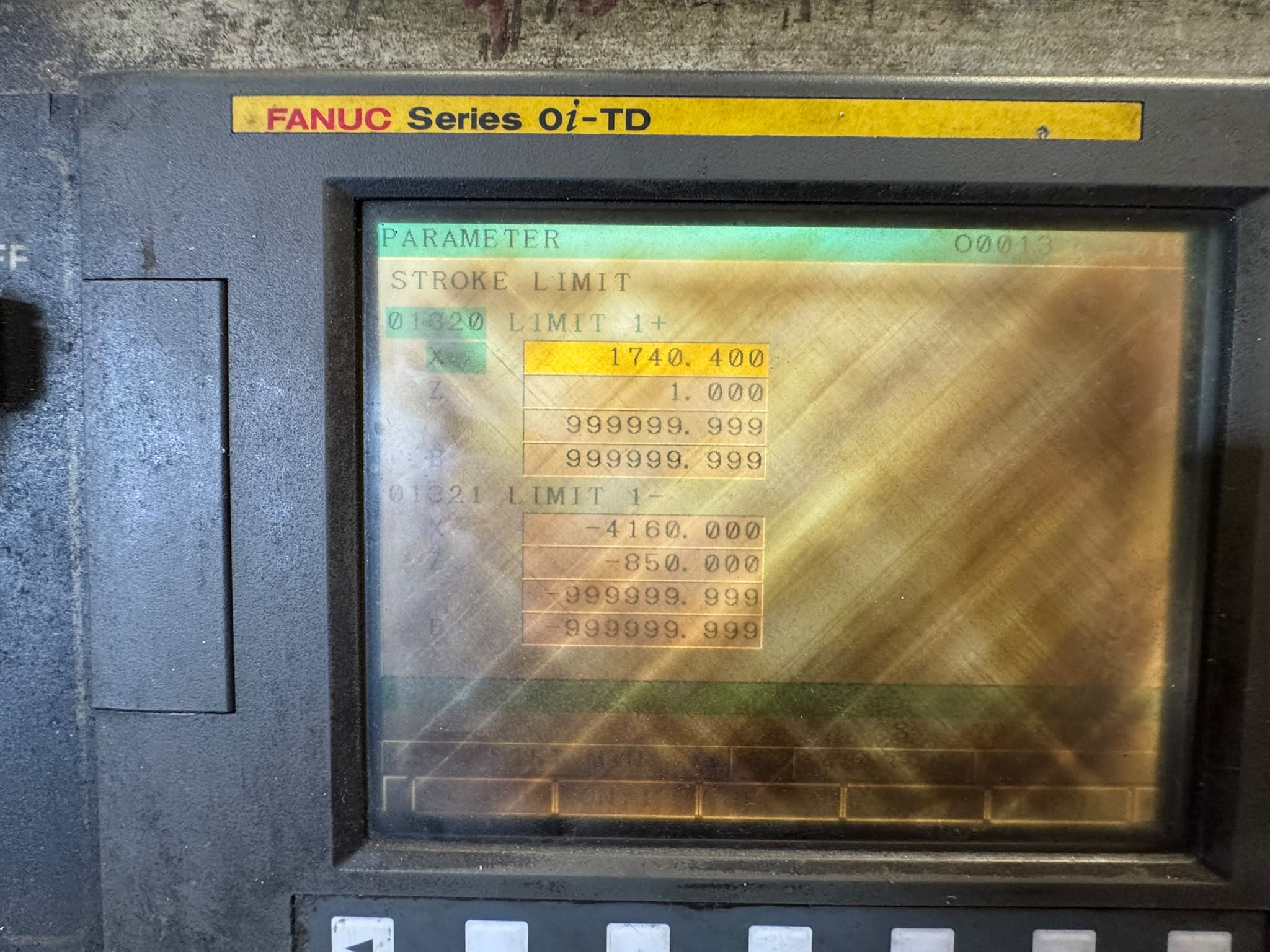

CNC Control: FANUC 0i-TD
