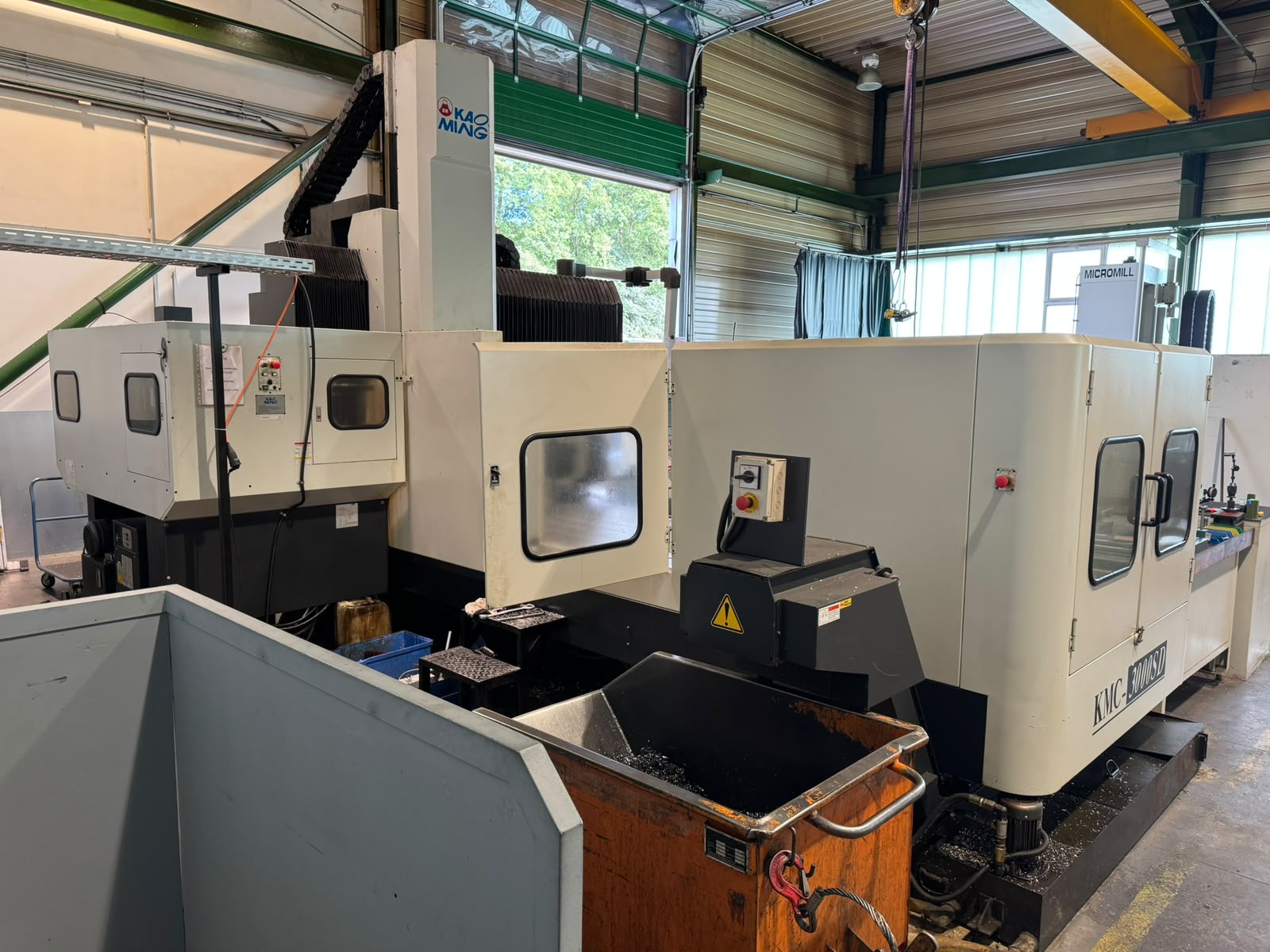

KAO MING - DOUBLE COLUMN VERTICAL MACHININING CENTER-KMC 3000 SD

Make: KAO-MING
Model: KMC 3000 SD
Year: 2007

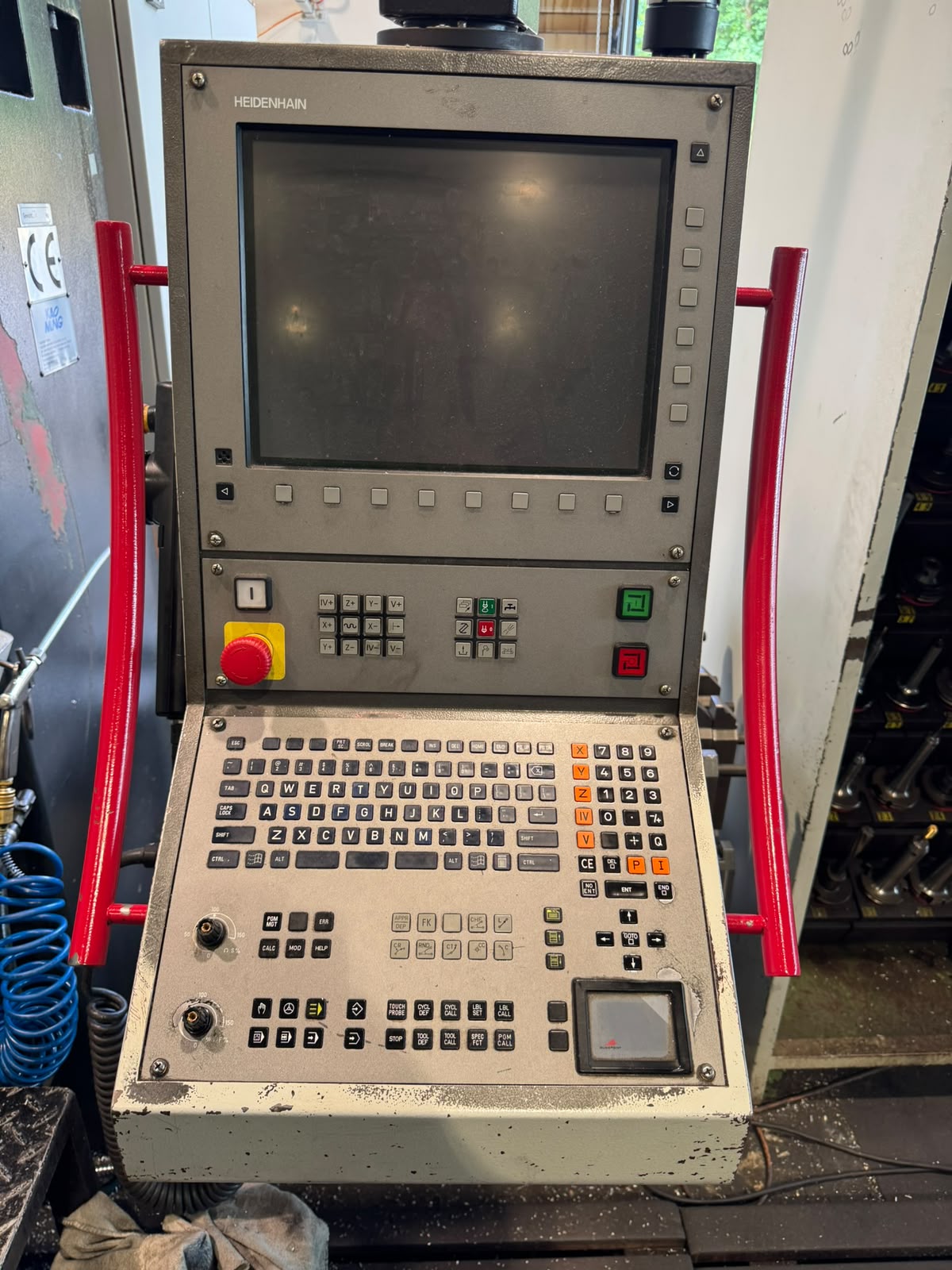

Control: HEIDENHAIN iTNC 530
X/Y/Z Travel: 3,200 / 1,400 / 700 mm

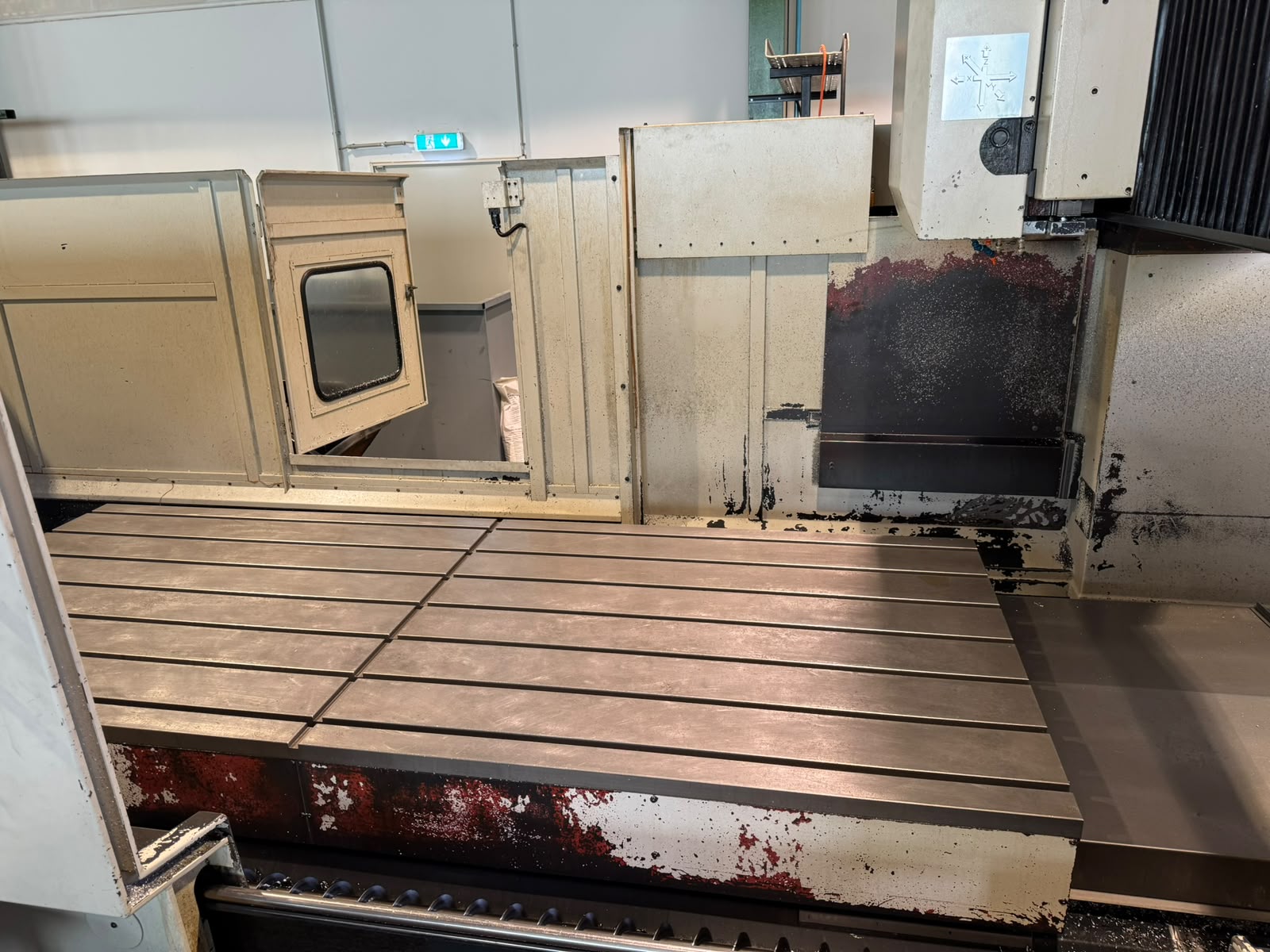

Table Size: 3,000 × 1,250 mm
Column Distance: 1,500 mm
Spindle Nose to Table: 200–900 mm
Max. Table Load: 8,000 kg
Spindle Taper: BT 50
Spindle Speed: 5,200 rpm

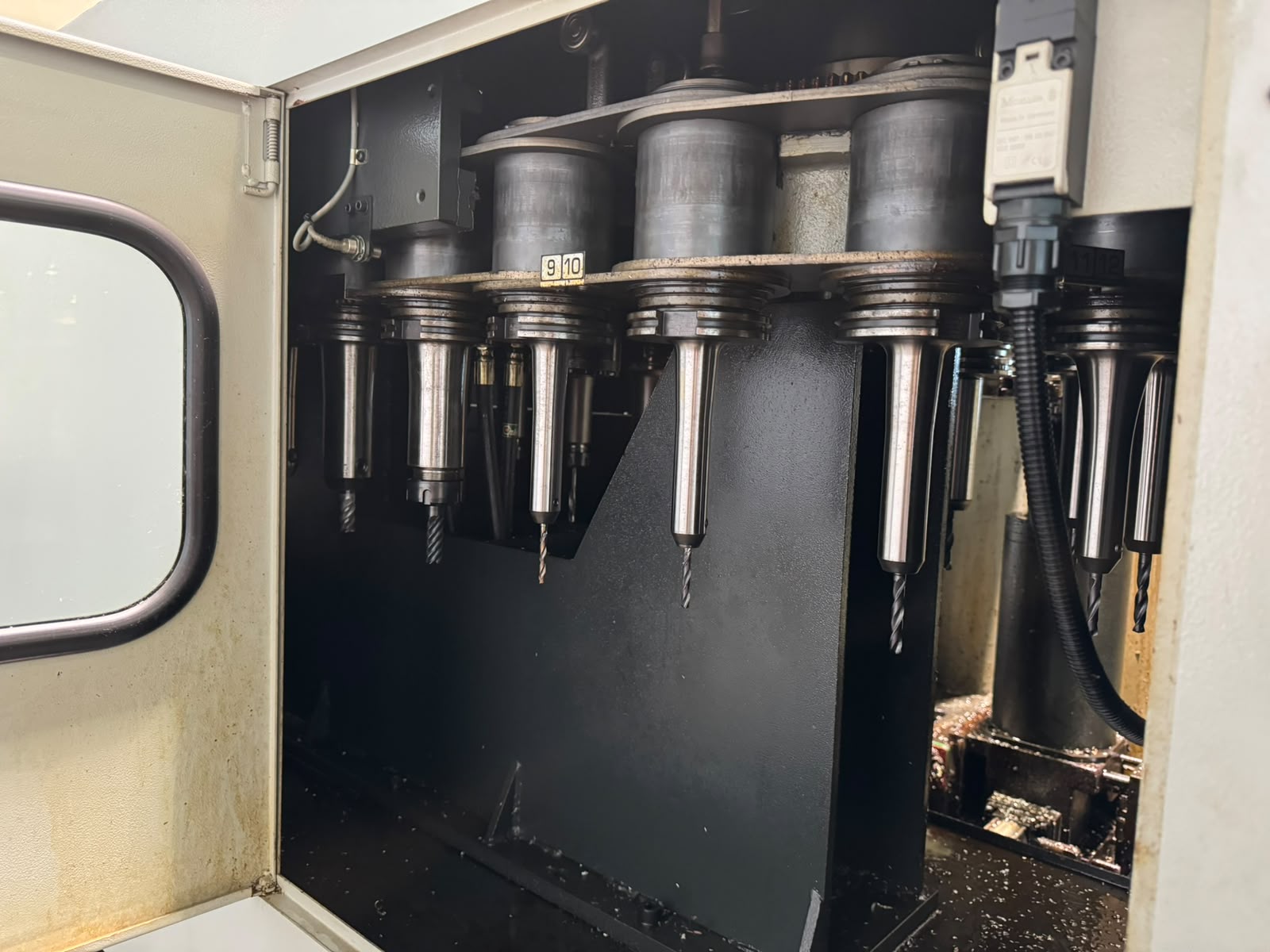

Tool Magazine: 30 positions
Rapid Traverse: 12 m/min
Feed Rate: 8 m/min
Machine Dimensions:8,100 × 4,100 × 3,800 mm
Machine Weight: Approx. 23,000 kG
