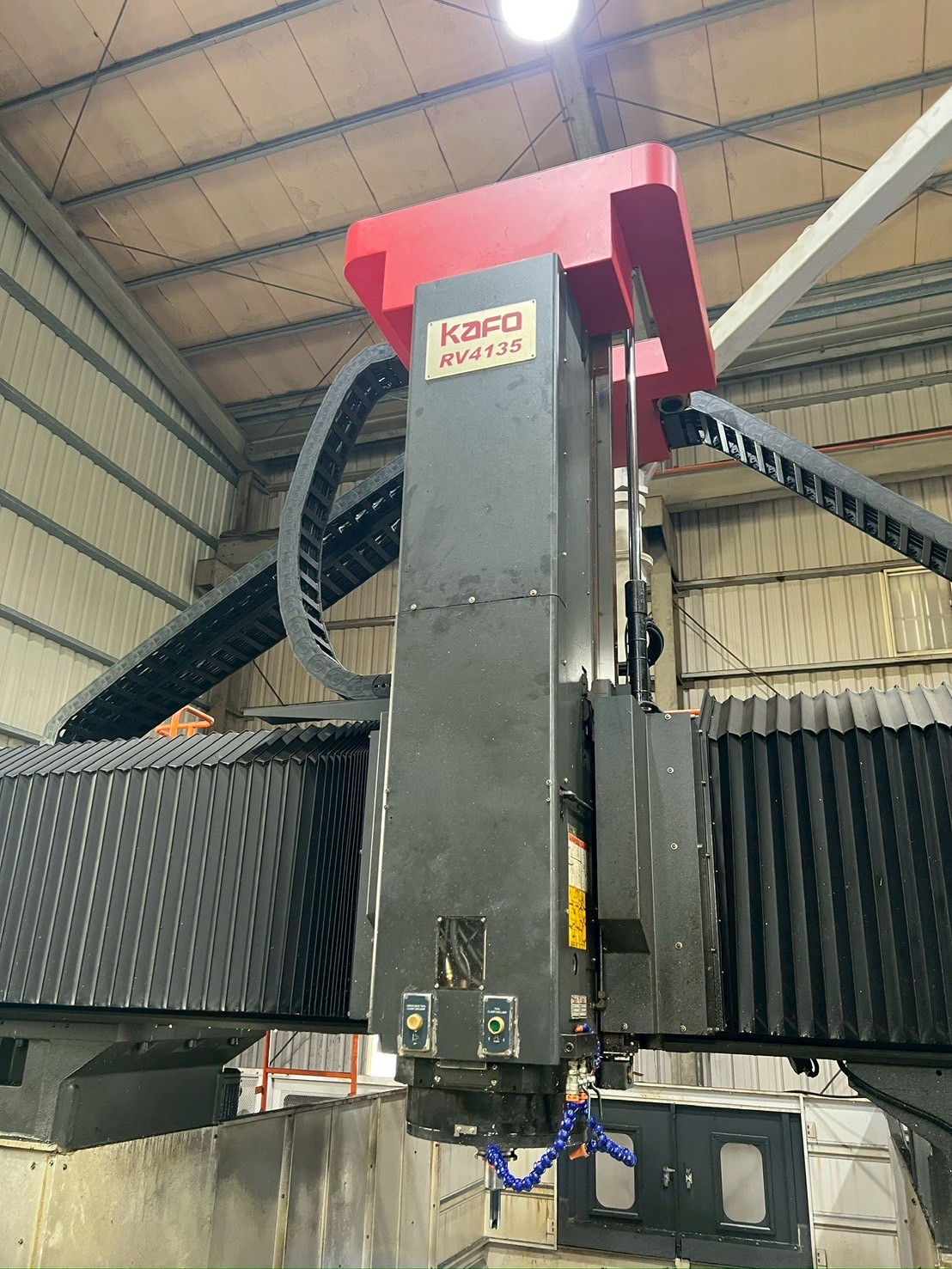

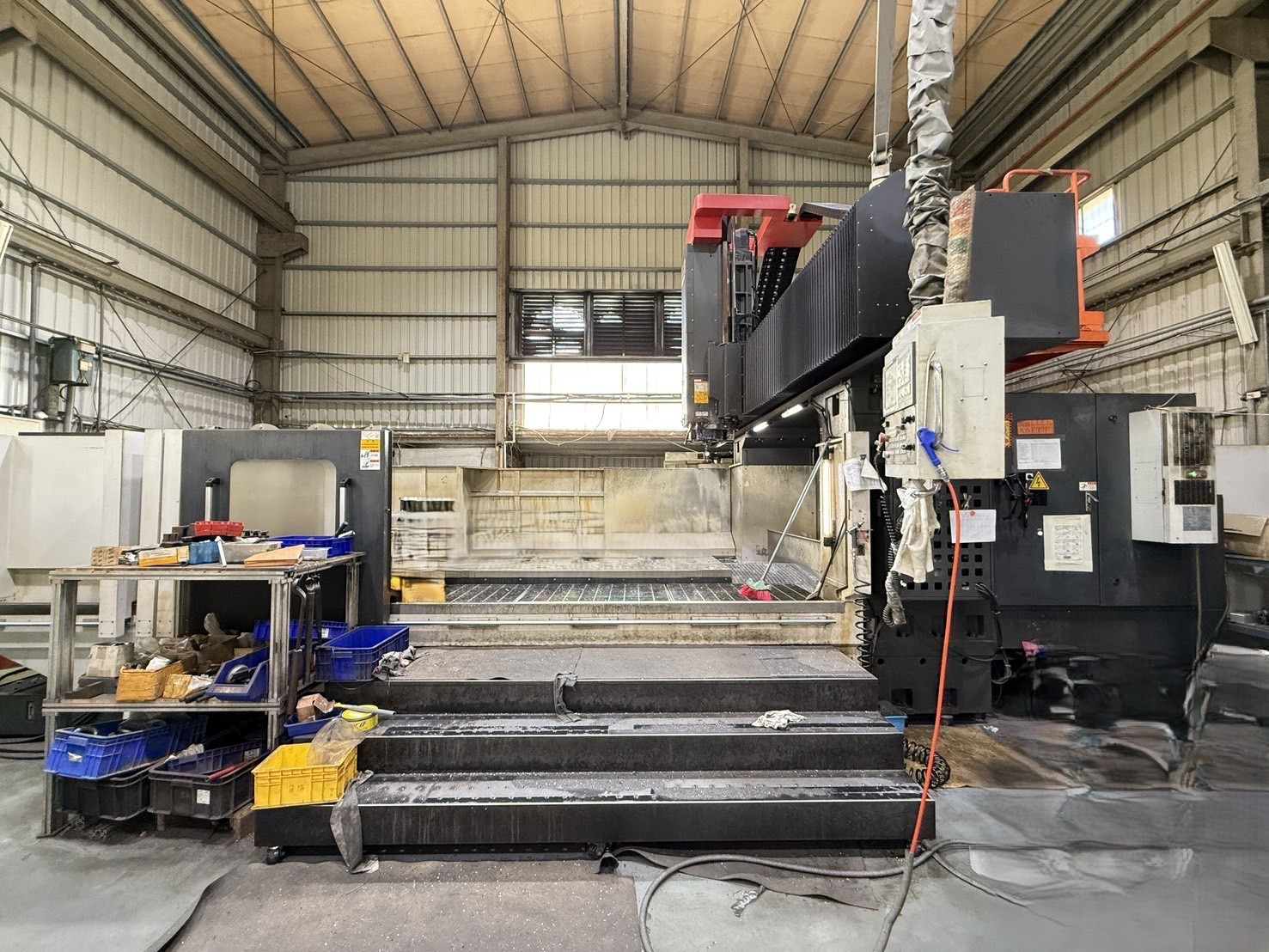

KAFO - CNC 5 FACE DOUBLE COLUMN MACHINING CENTER-RV-4135

KAFO CNC 5 FACE DOUBLE COLUMN MACHINING CENTER
Year?2019
Model?RV-4135

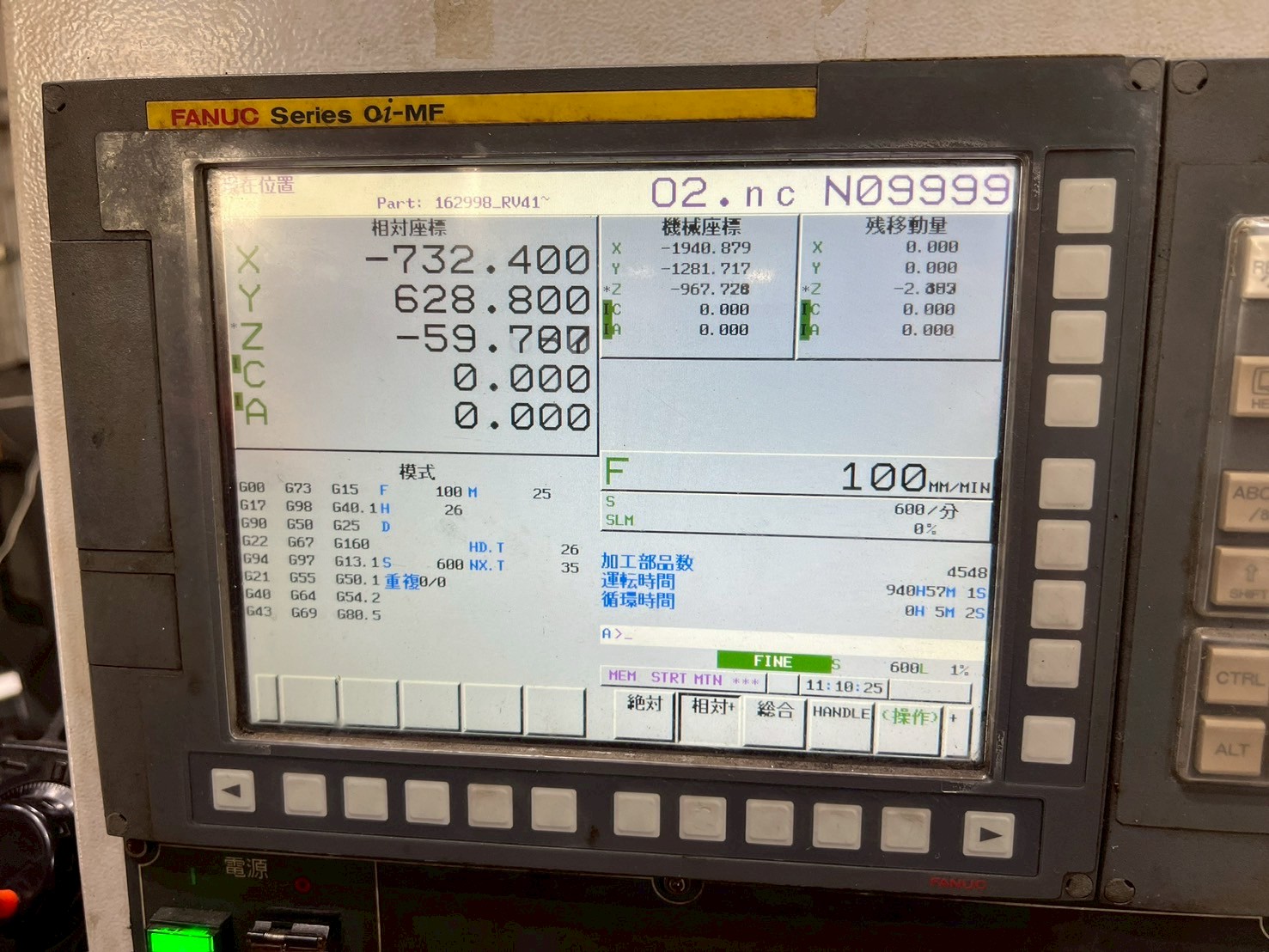

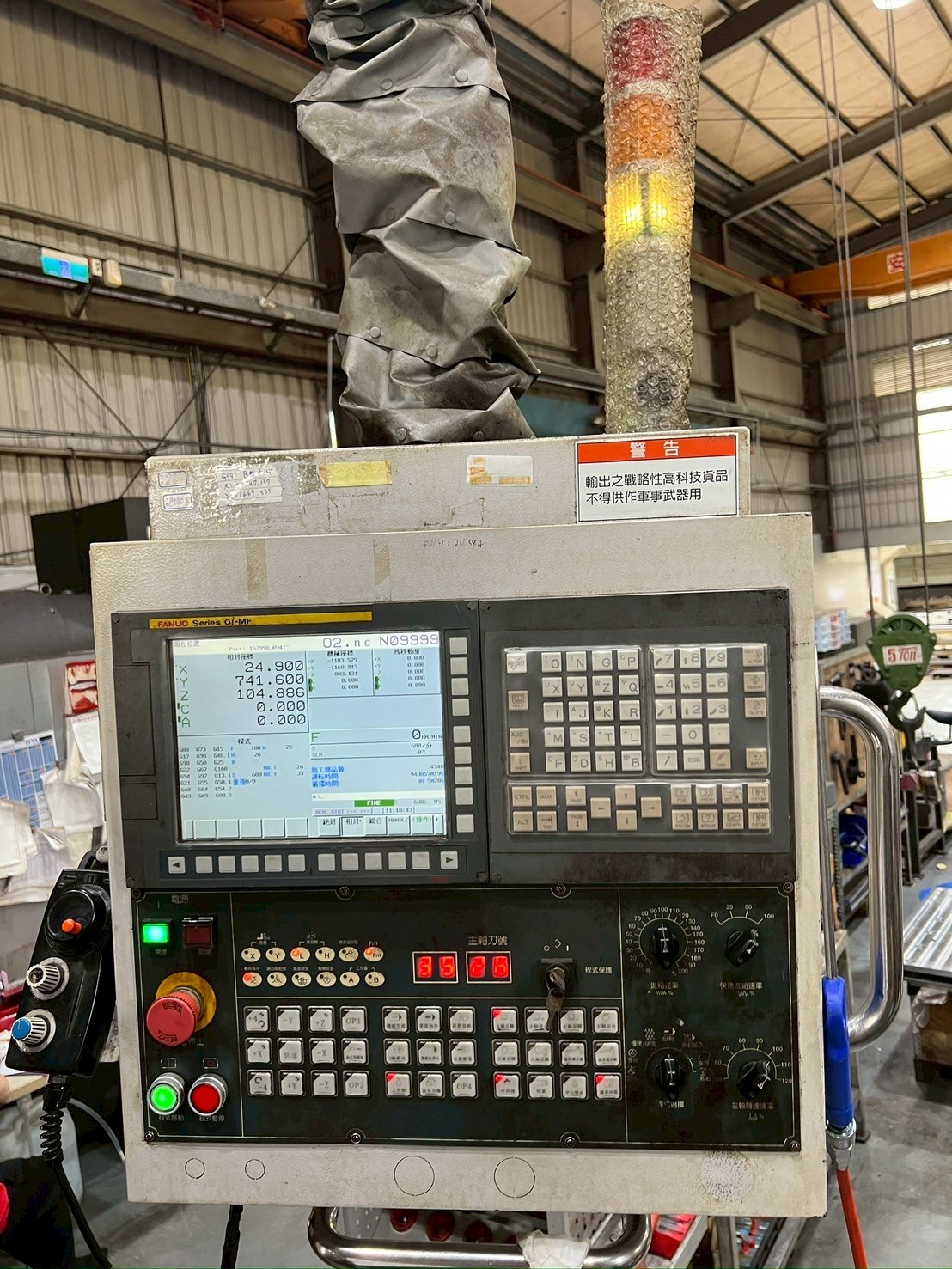

Controller?FANUC 0i-MF (10.4" LCD)
X/Y/Z axis travel?4,100/3,500/1,100 mm
Spindle nose to table?200-1,300 mm
Dist. between columns?2,700 mm
Table size?4,000 x 2,100 mm
Table loading?17,000 kg
Spindle speed?10,000 rpm (Built-in driven)
Spindle motor?37/45 kw (Fanuc βii180LL)

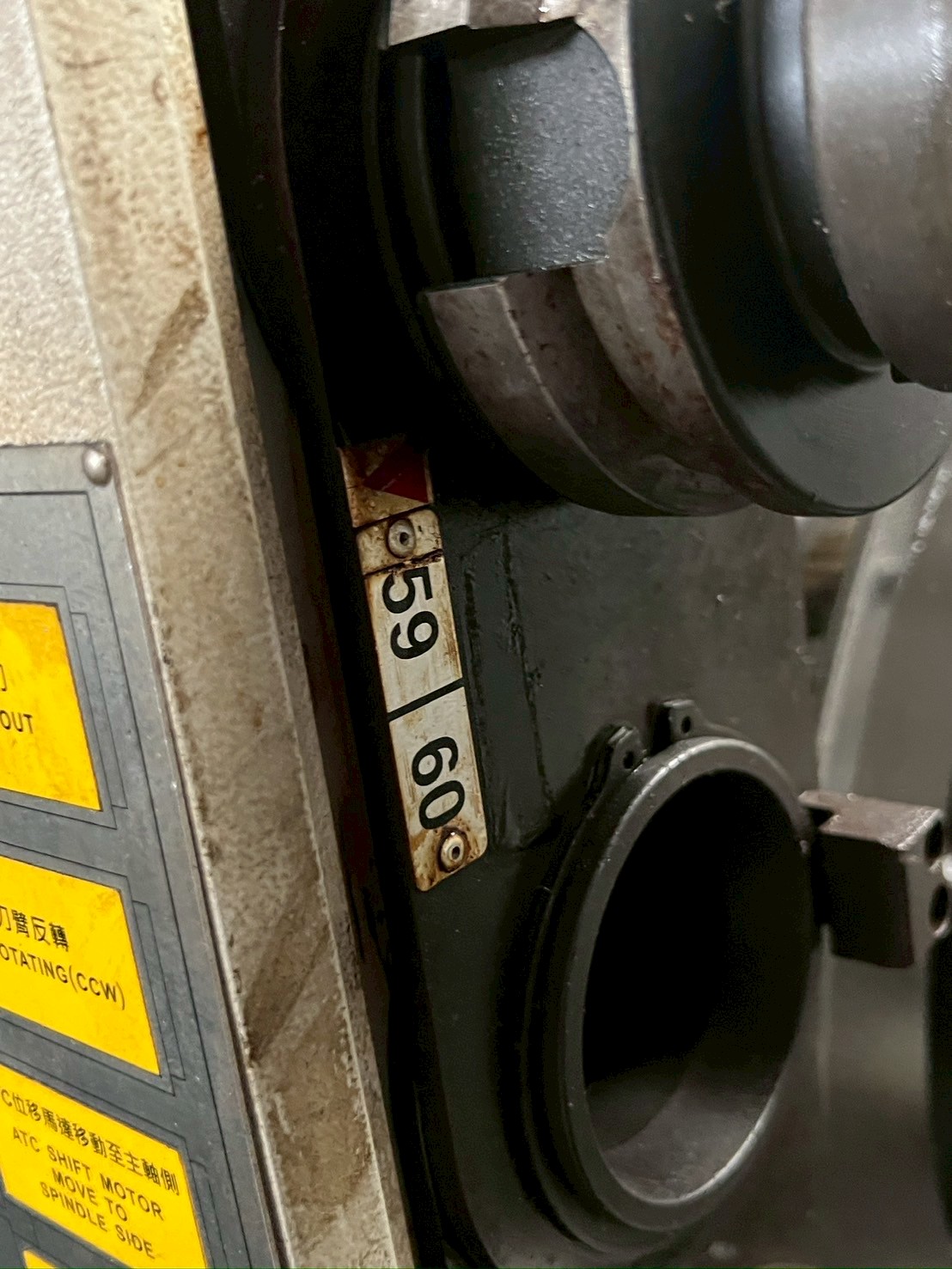

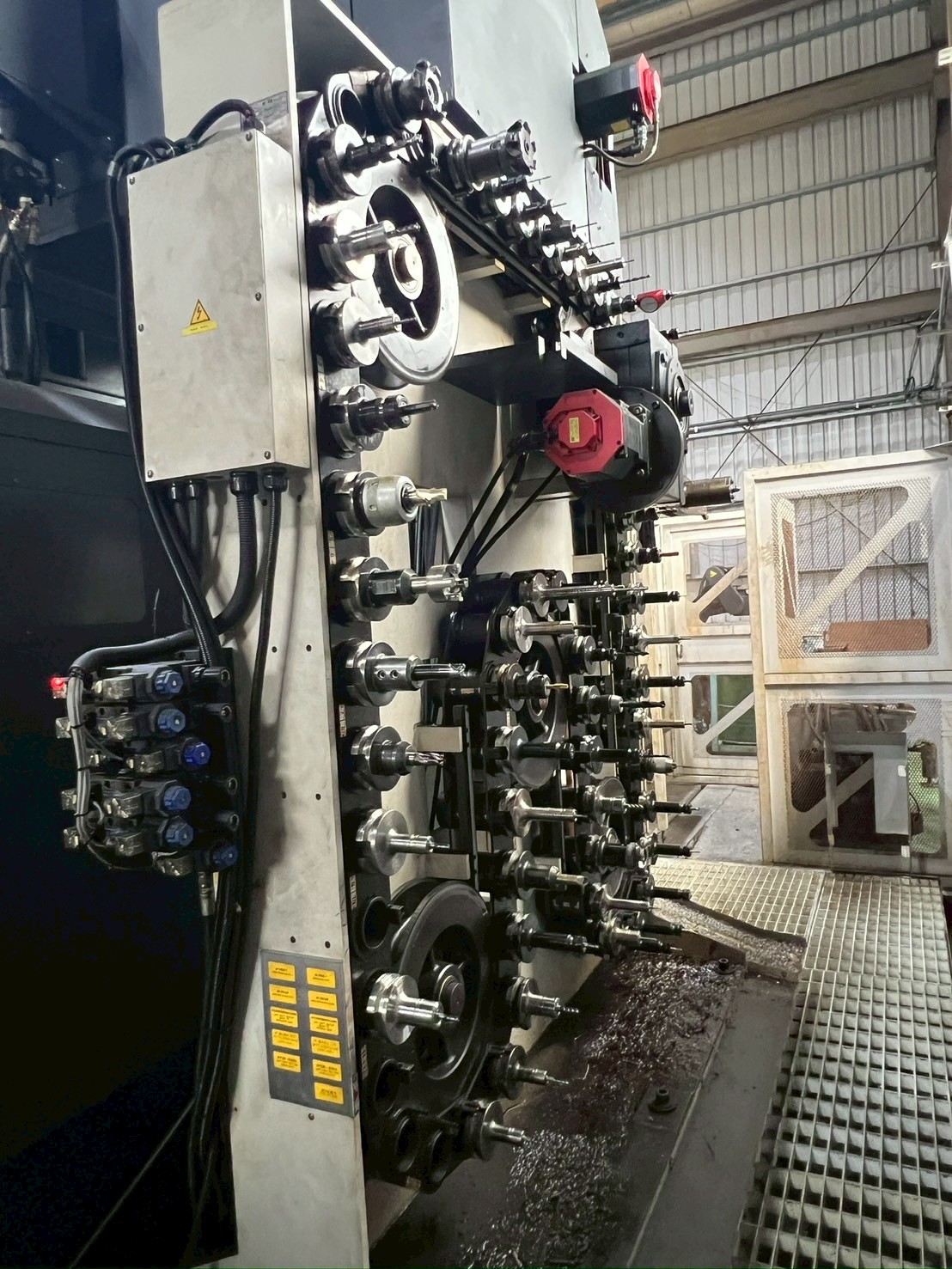

BT50 / 60ATC
DATA SERVER
X/Y axis roller linear guide way, Z axis box way

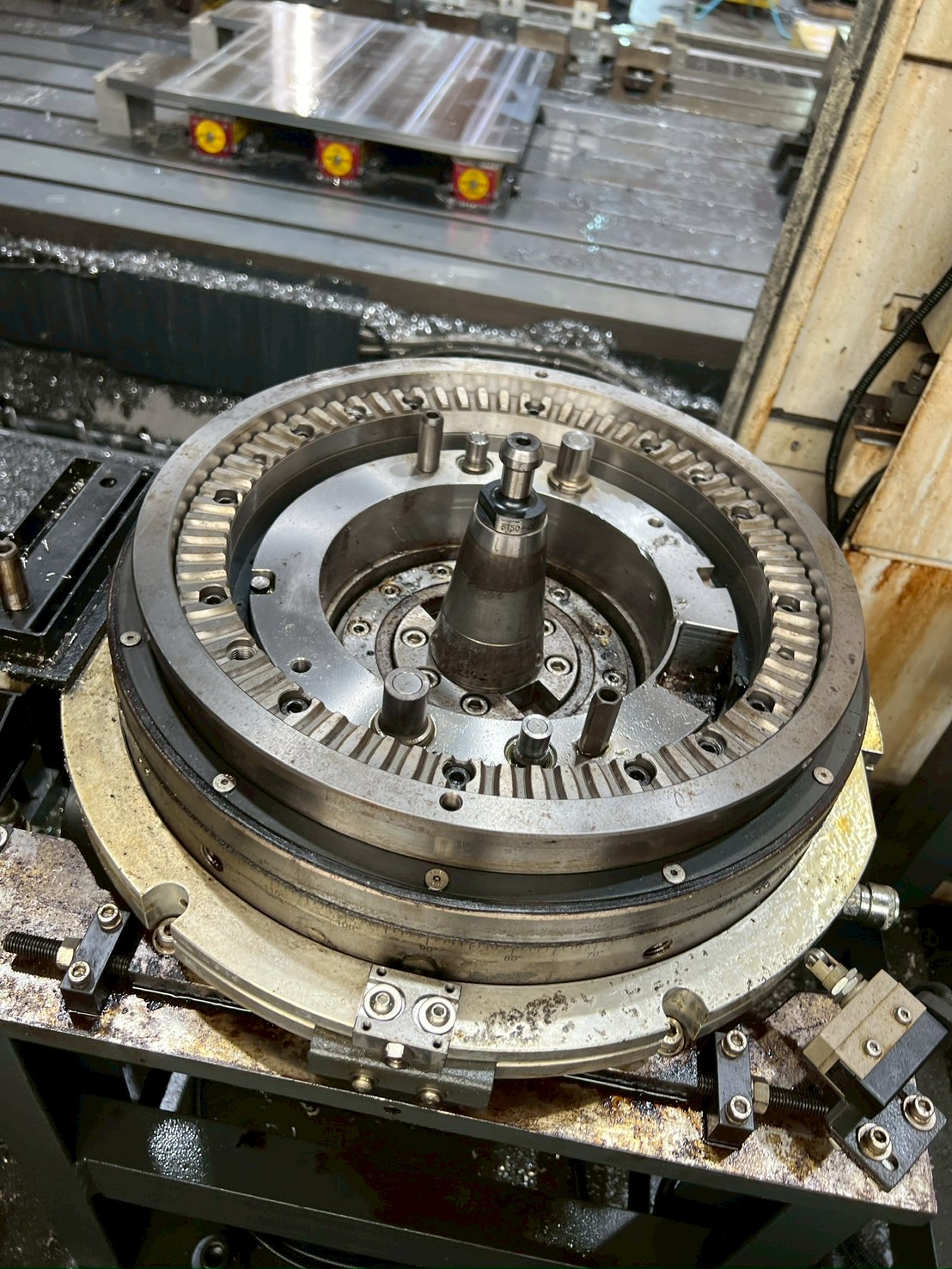

Auto head storage?
90 degree side milling head (3,500 rpm / 5 degree indexing)
Universal head (3,500 rpm / 5 degree indexing)
4 axis Simultaneous MARCO

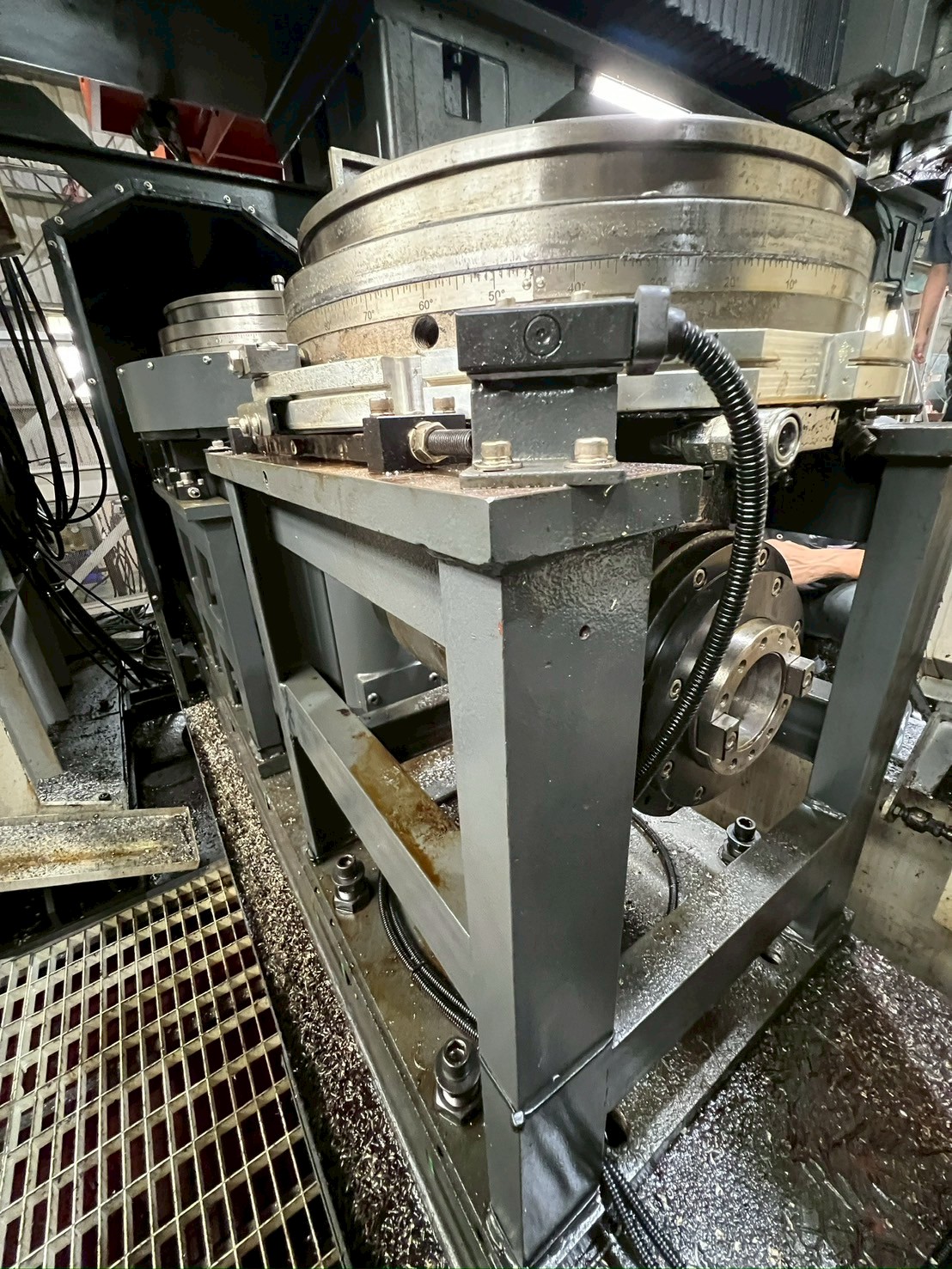

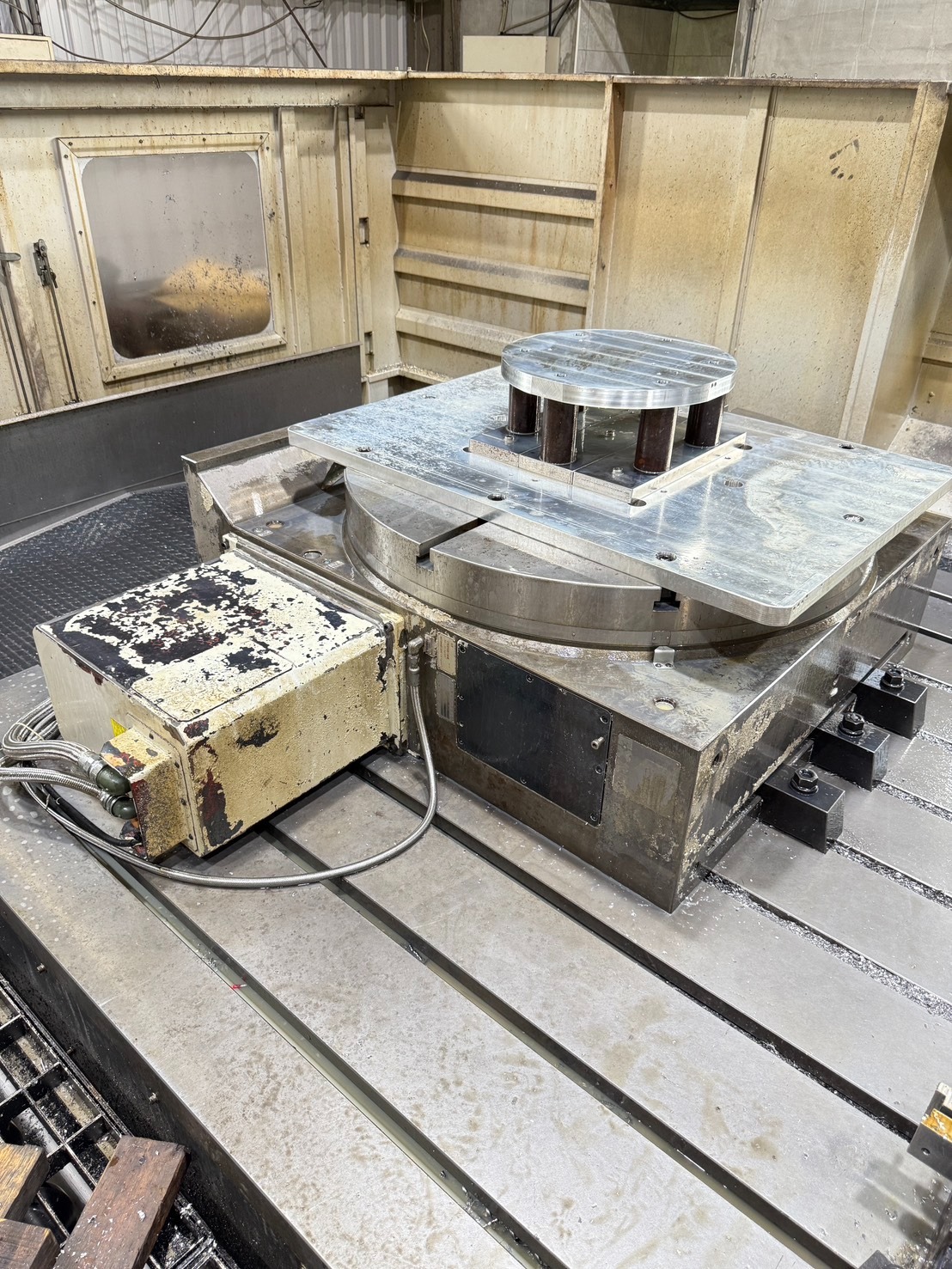

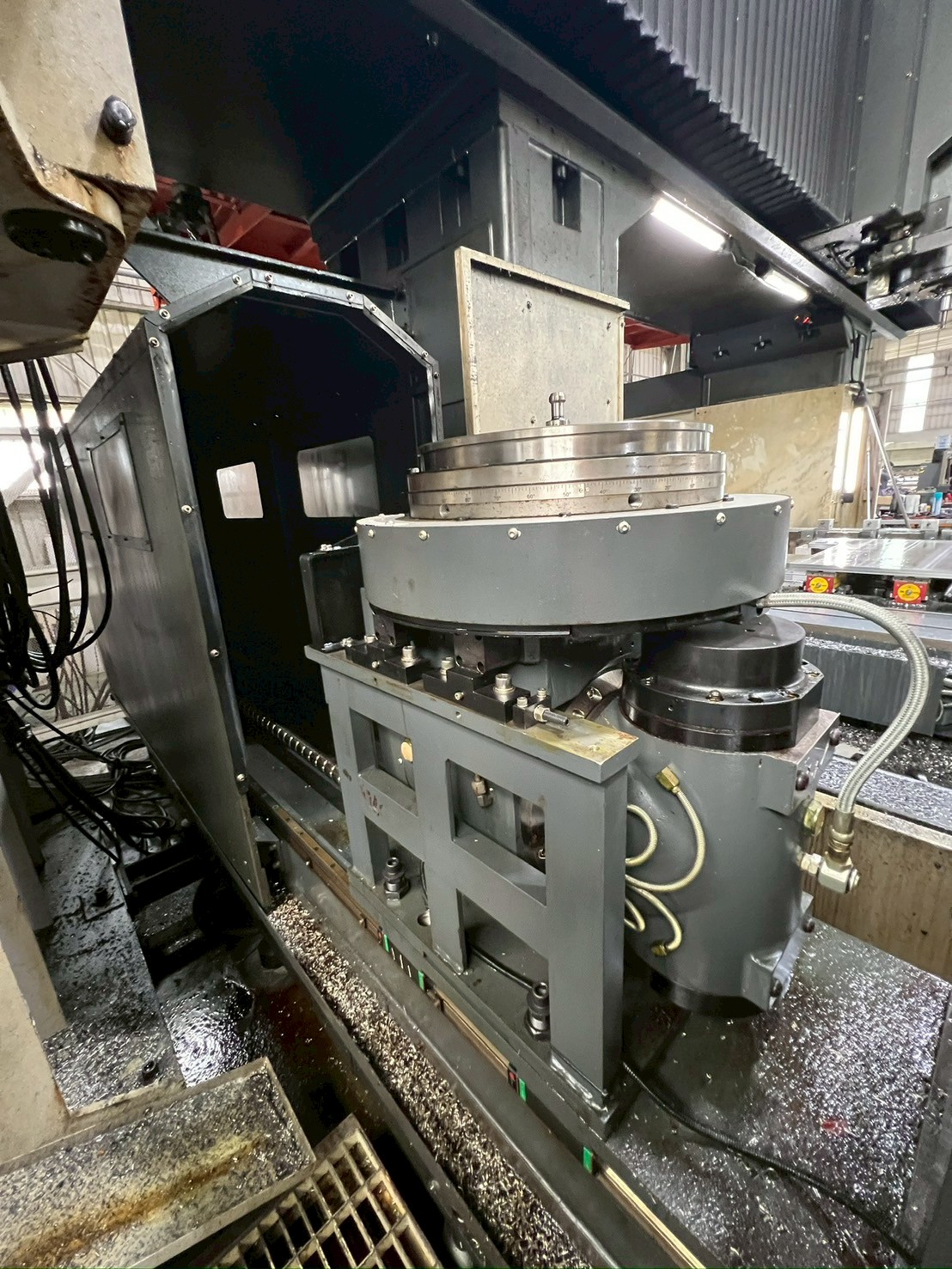

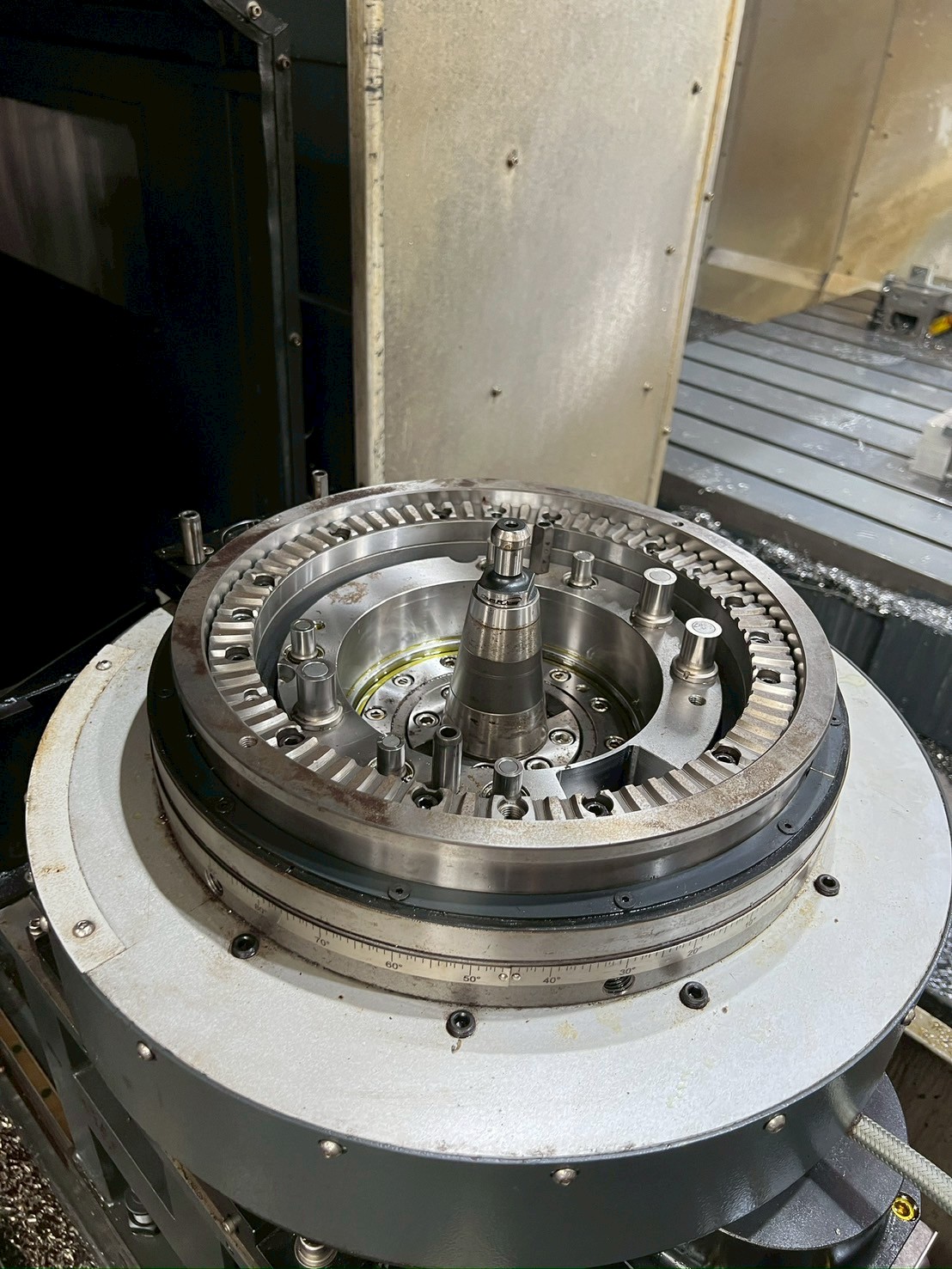

With the 4th axis rotary (NCT-B-1000R)

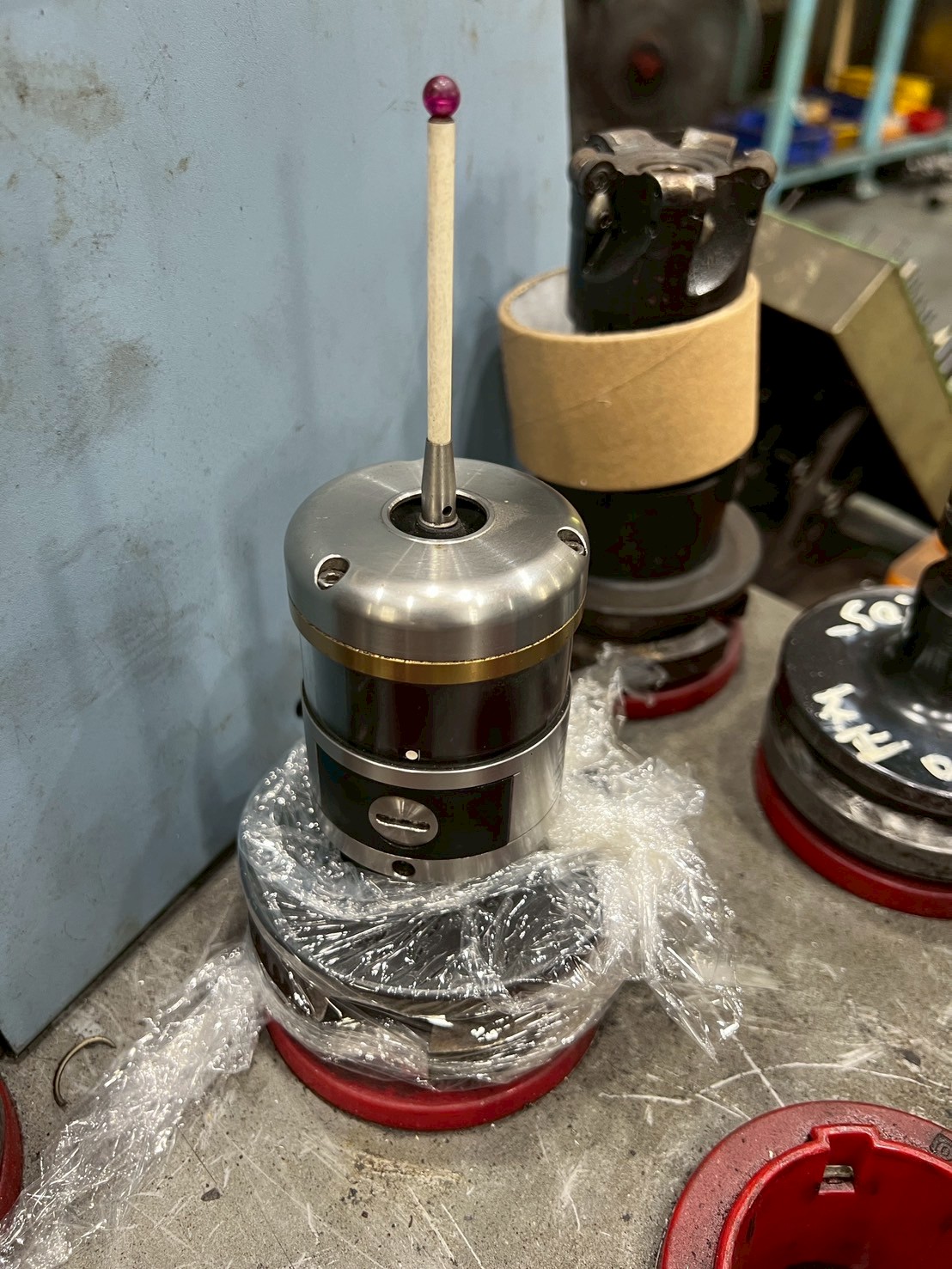

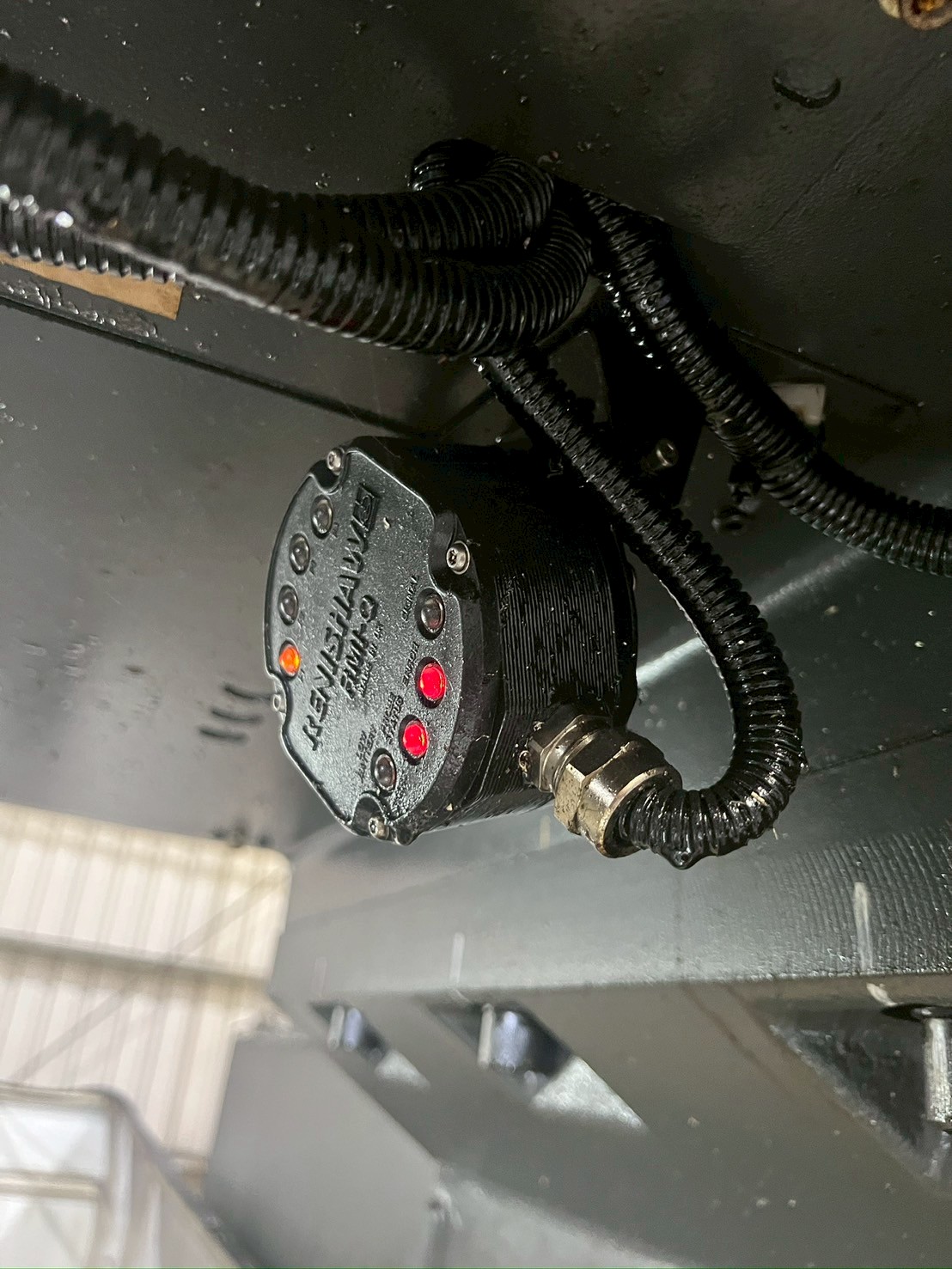

Renishaw RMP-600
Tool off set
X/Y/Z axis linear scales
Air thru spindle

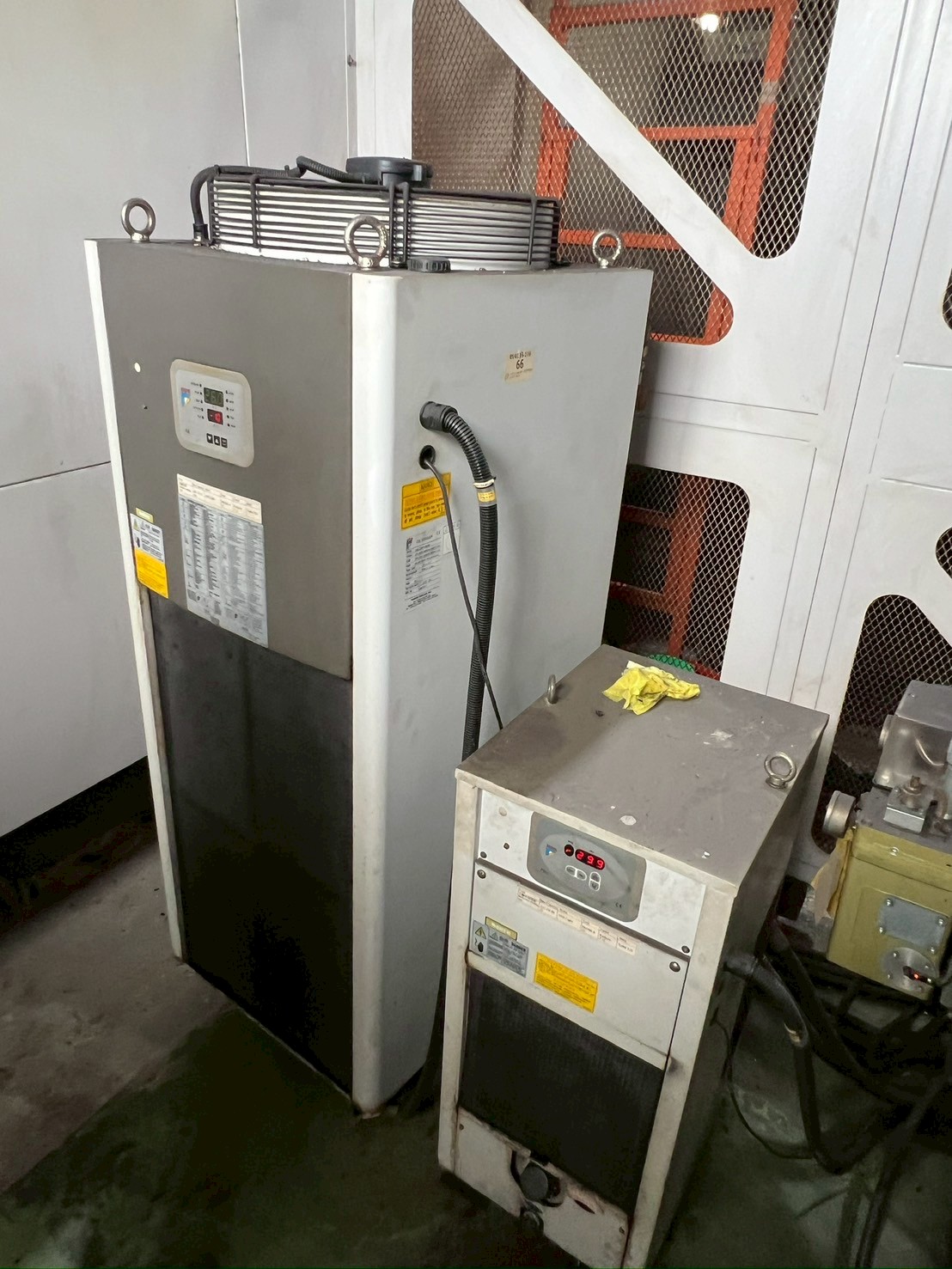

Spindle oil cooler

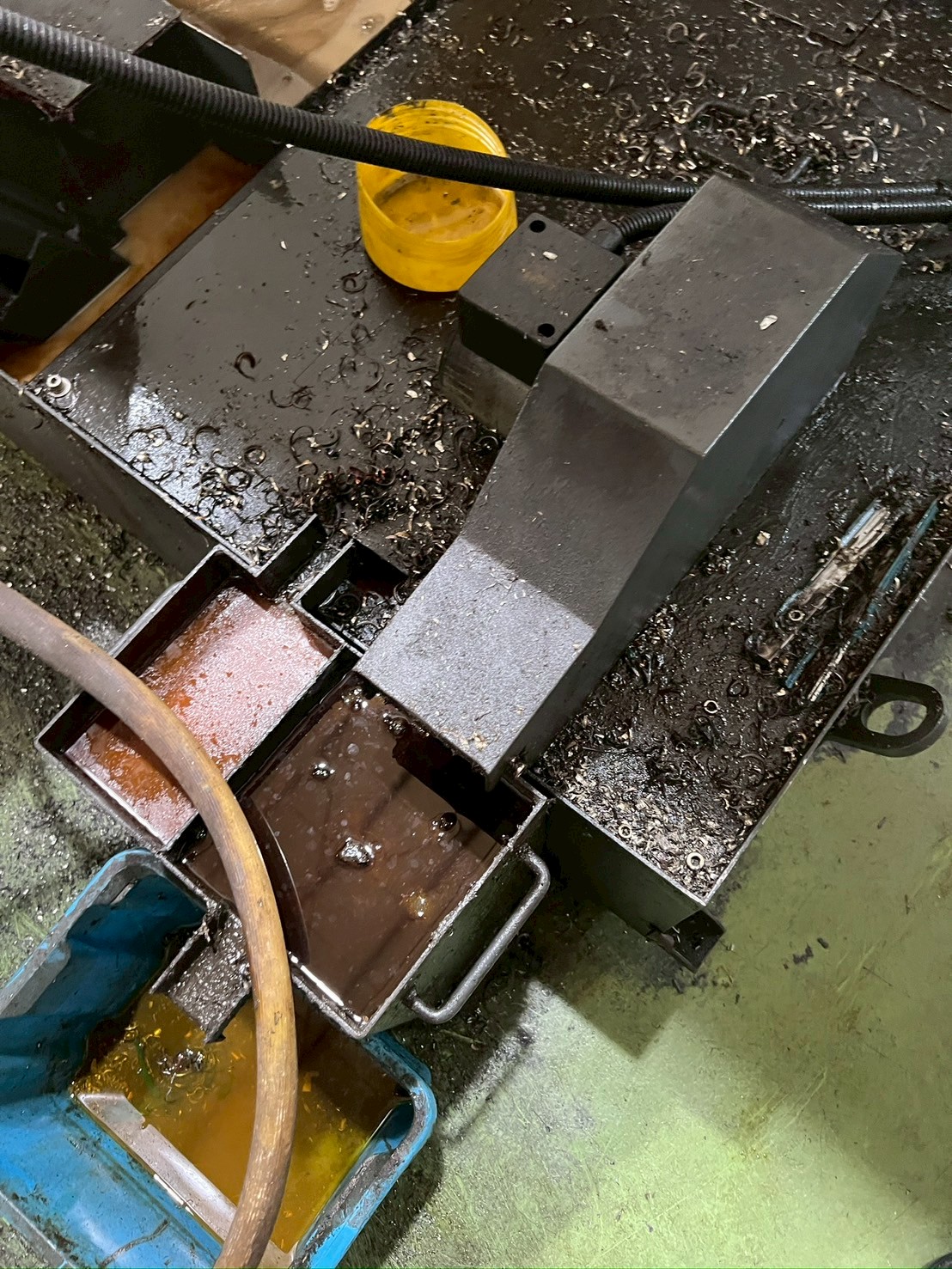

Oil skimmer
3 axis ball screw cooling

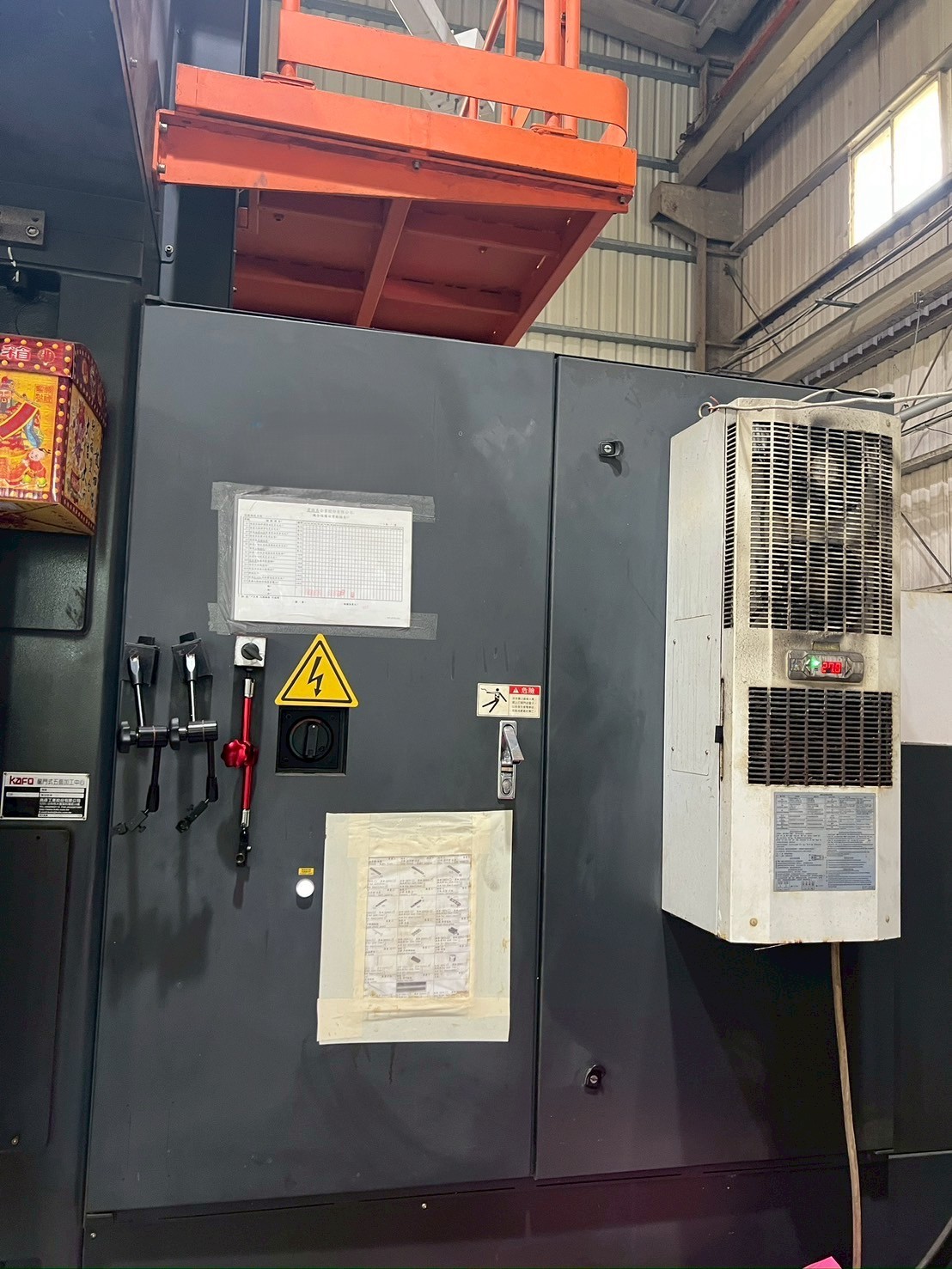

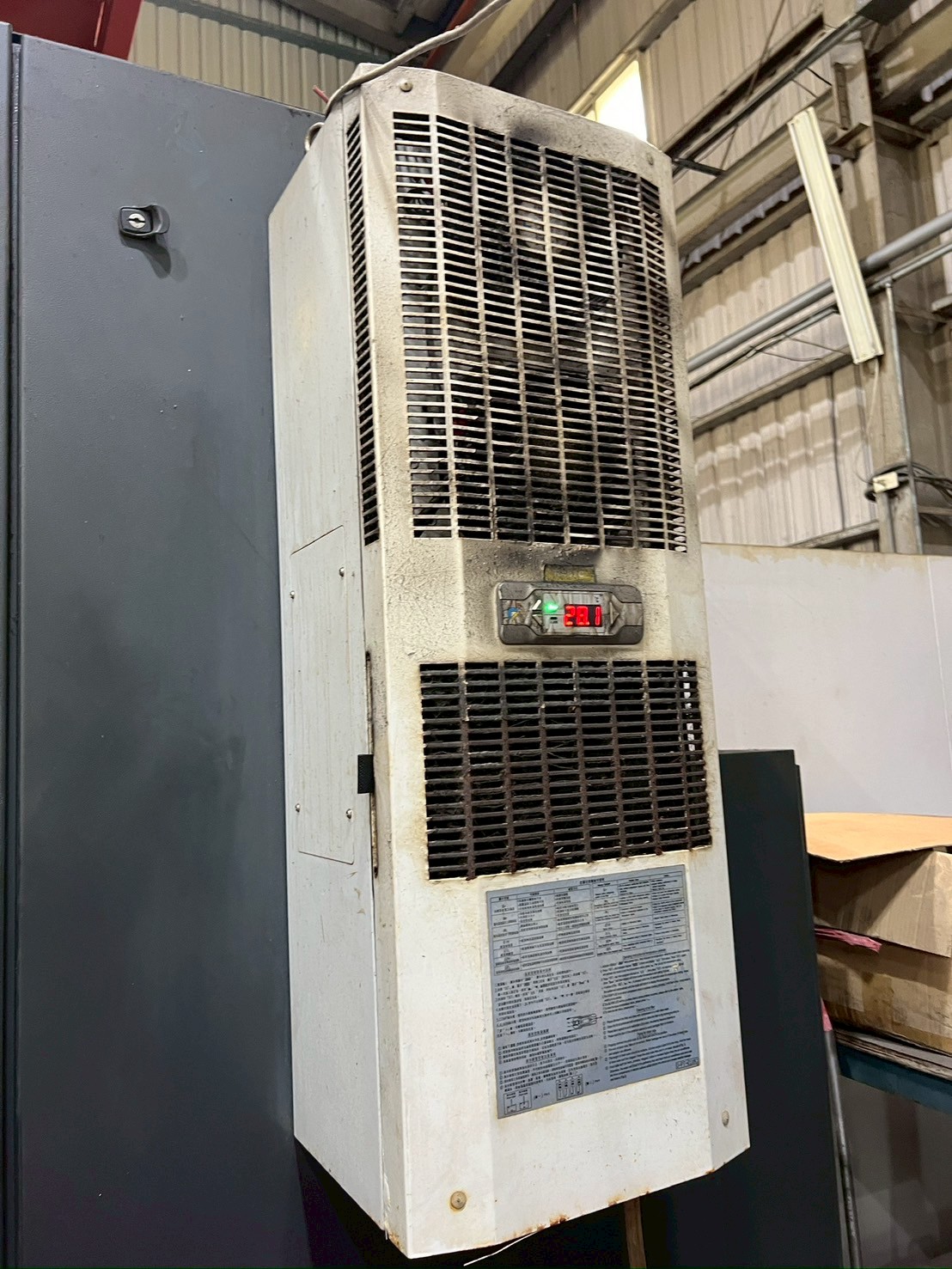

Air conditioner

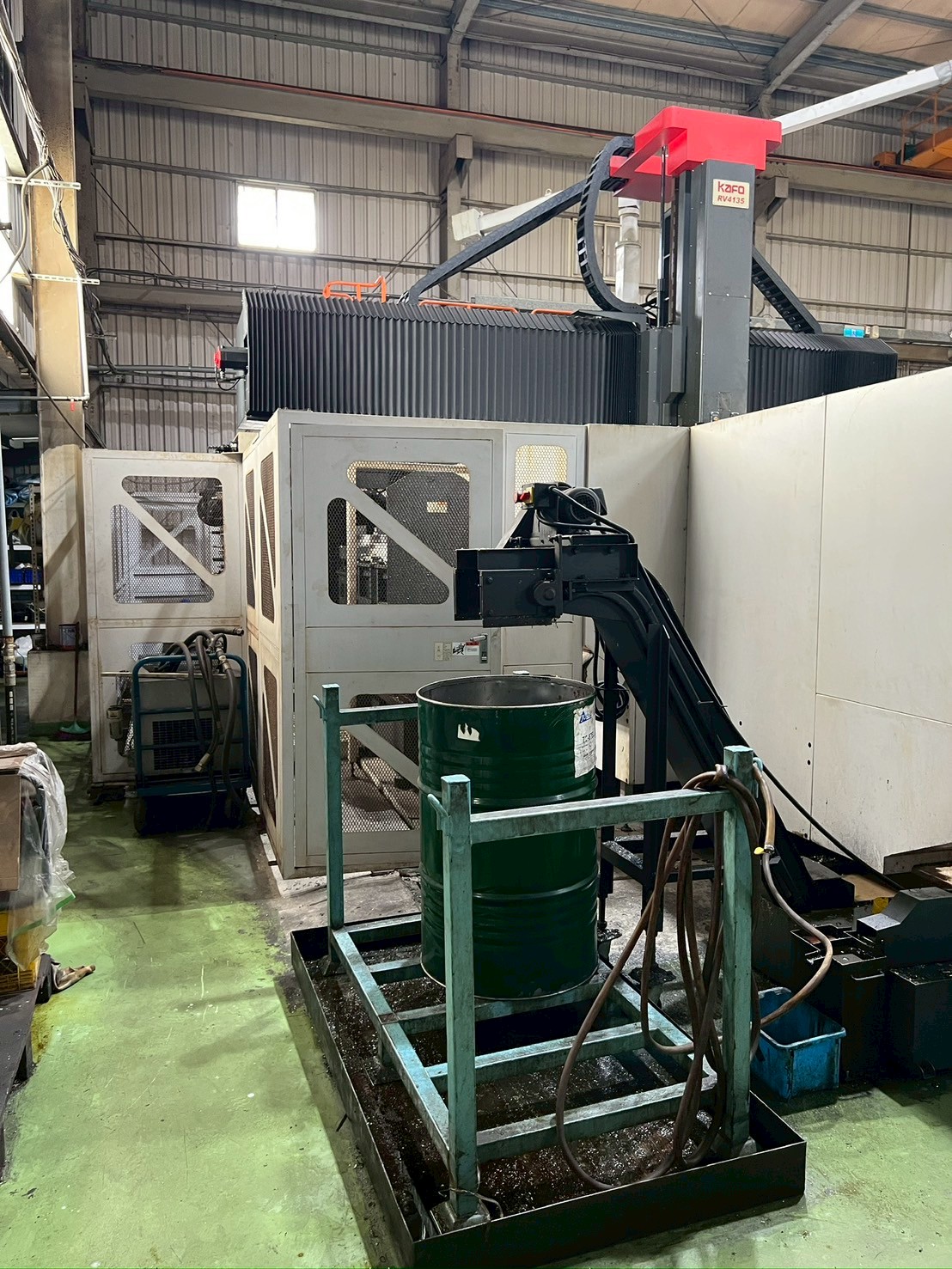

Chip conveyor
Machine size?10,800 x 7,800 x 5,740 mm
Machine weight?47,500 kg
