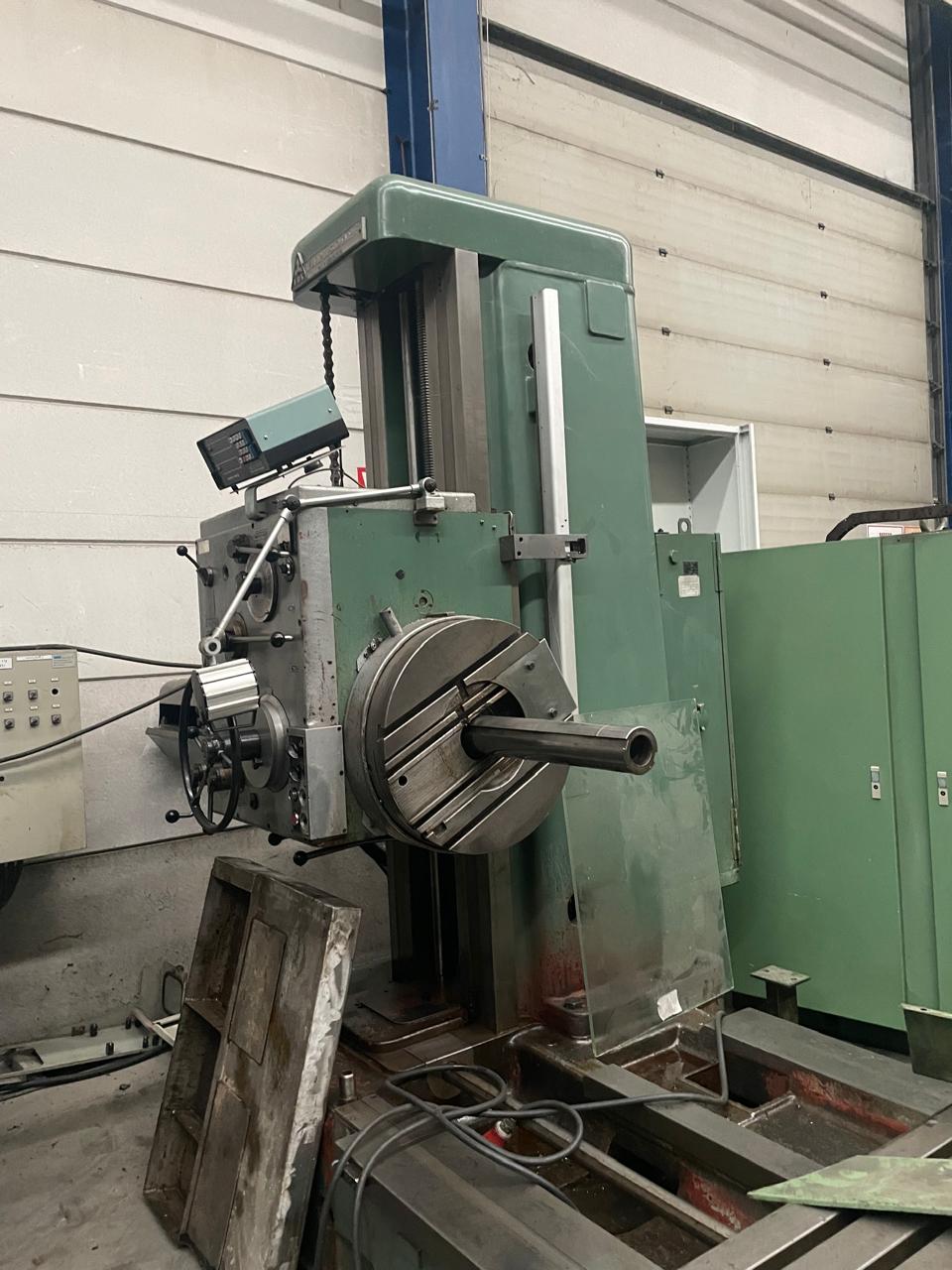

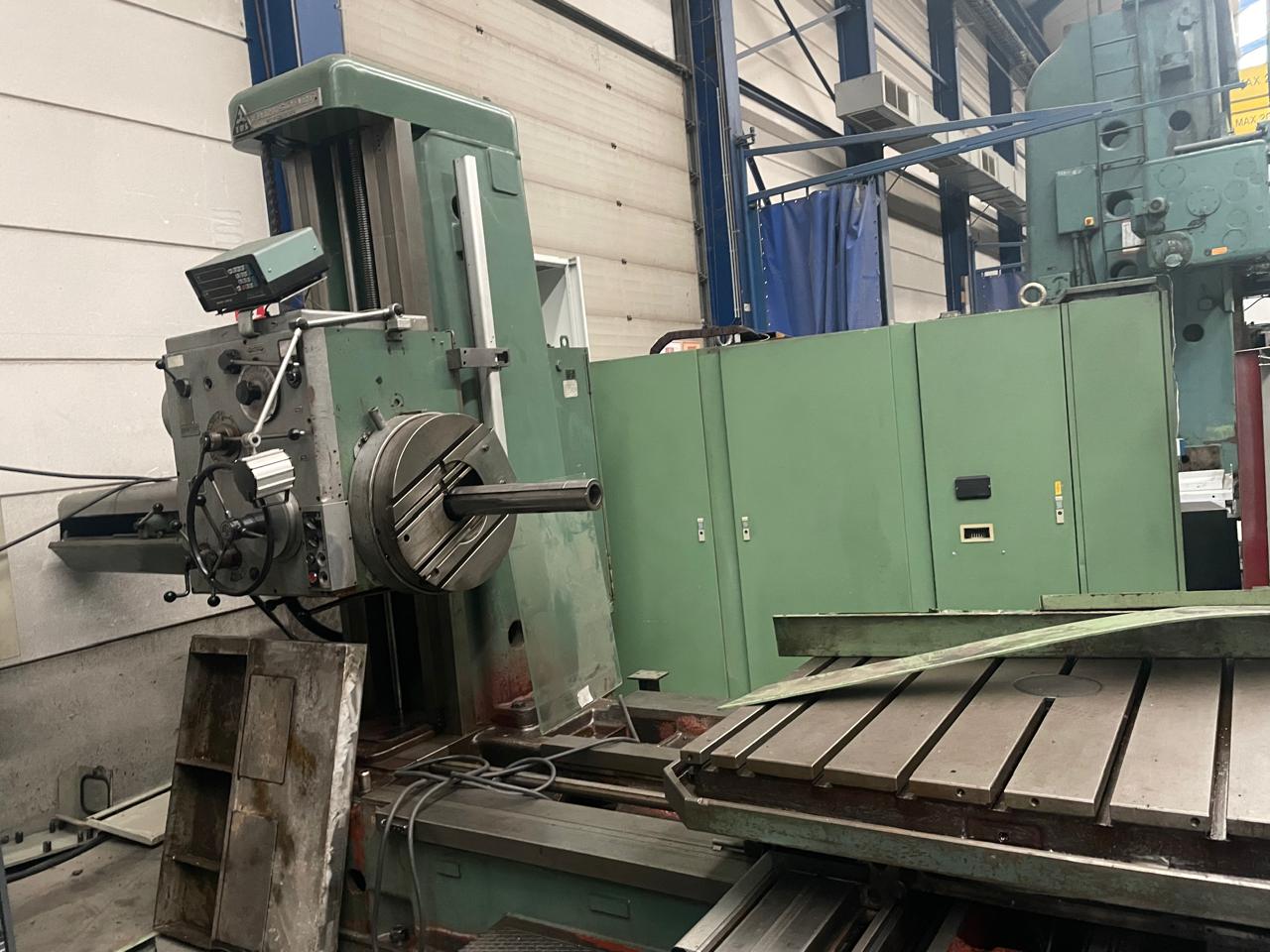

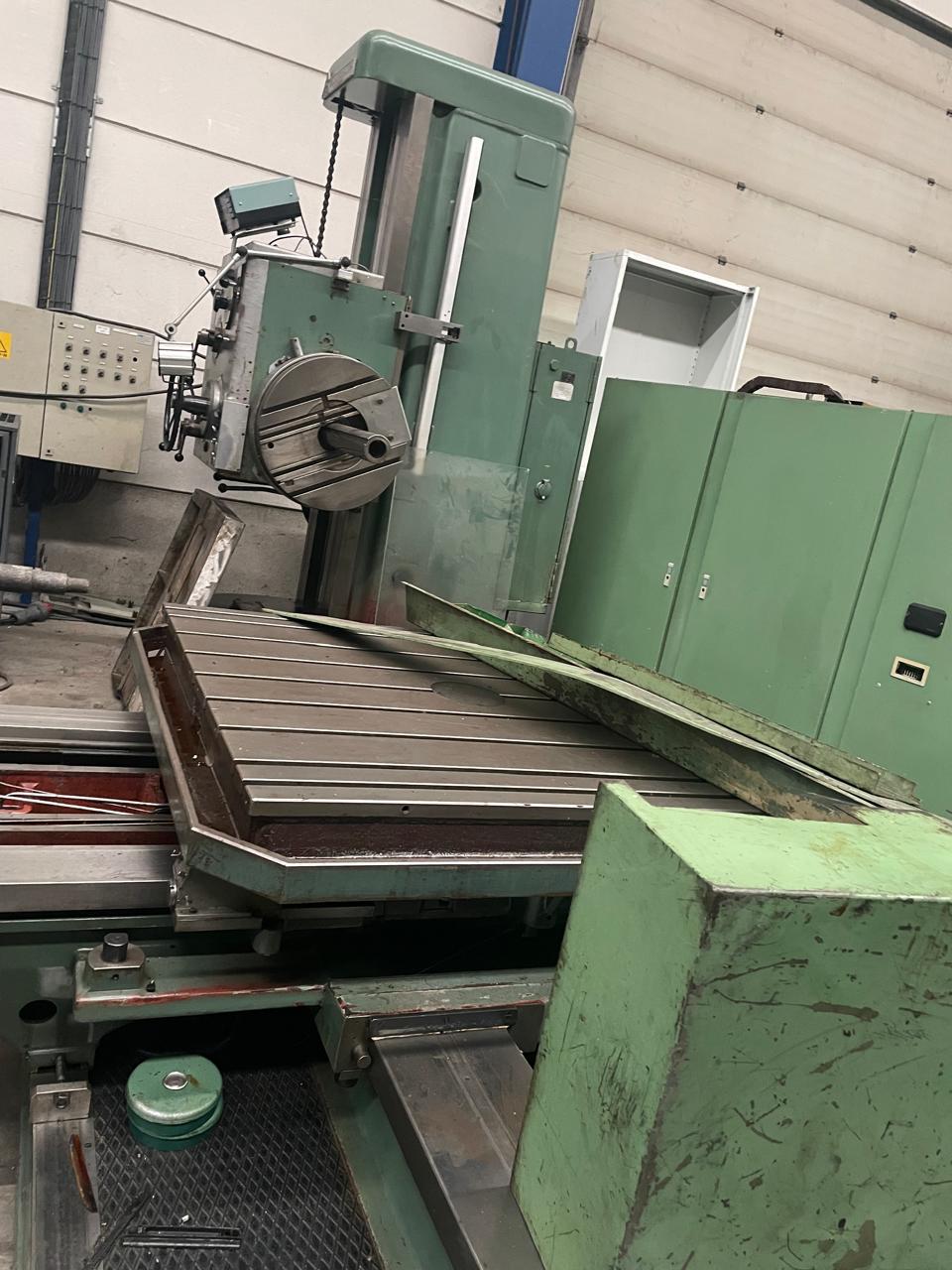

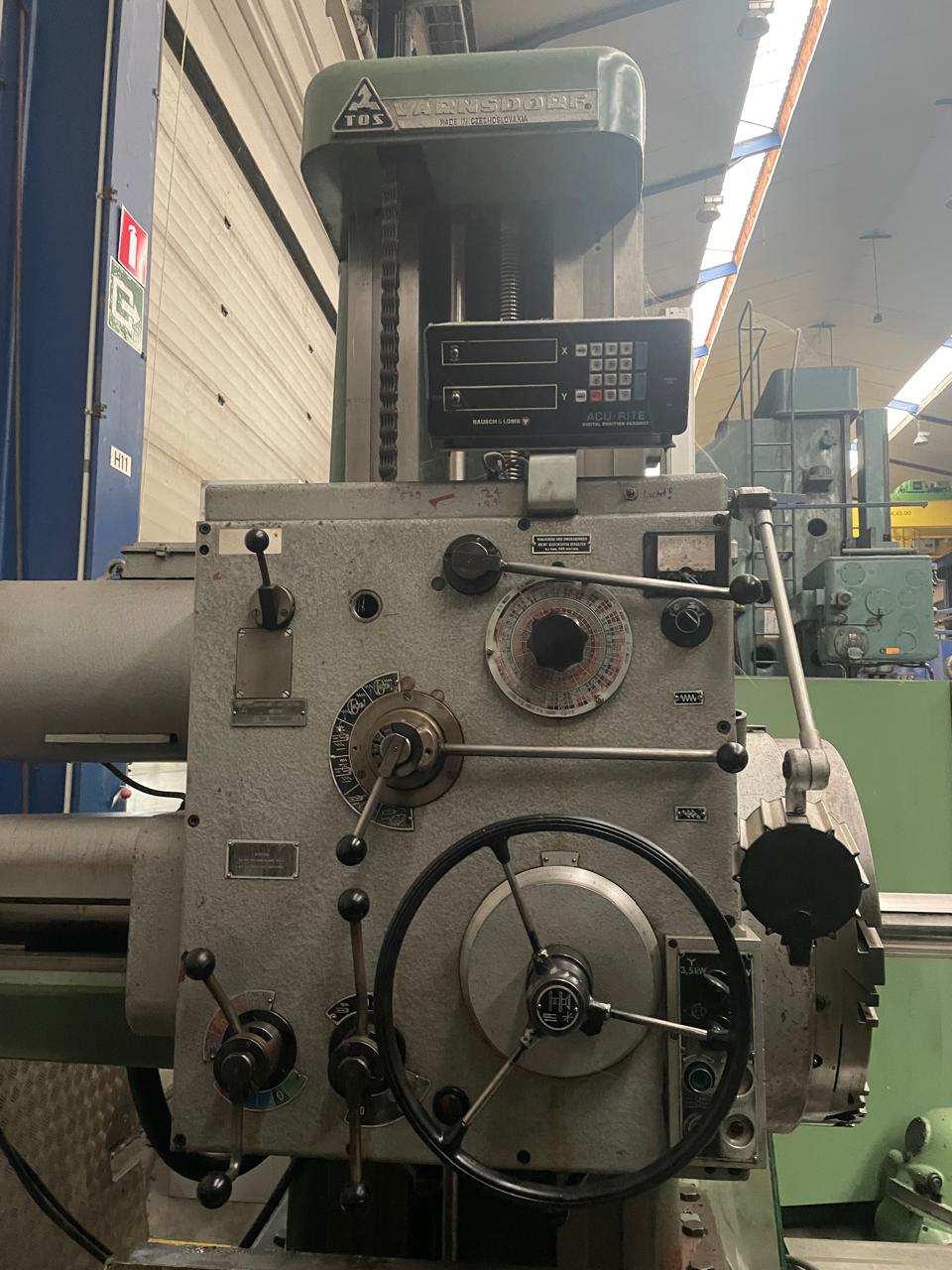

TOS W 100 HORIZONTAL BORING MACHINE-W 100

Machine Name: TOS W 100 HORIZONTAL BORING MACHINE-W 100

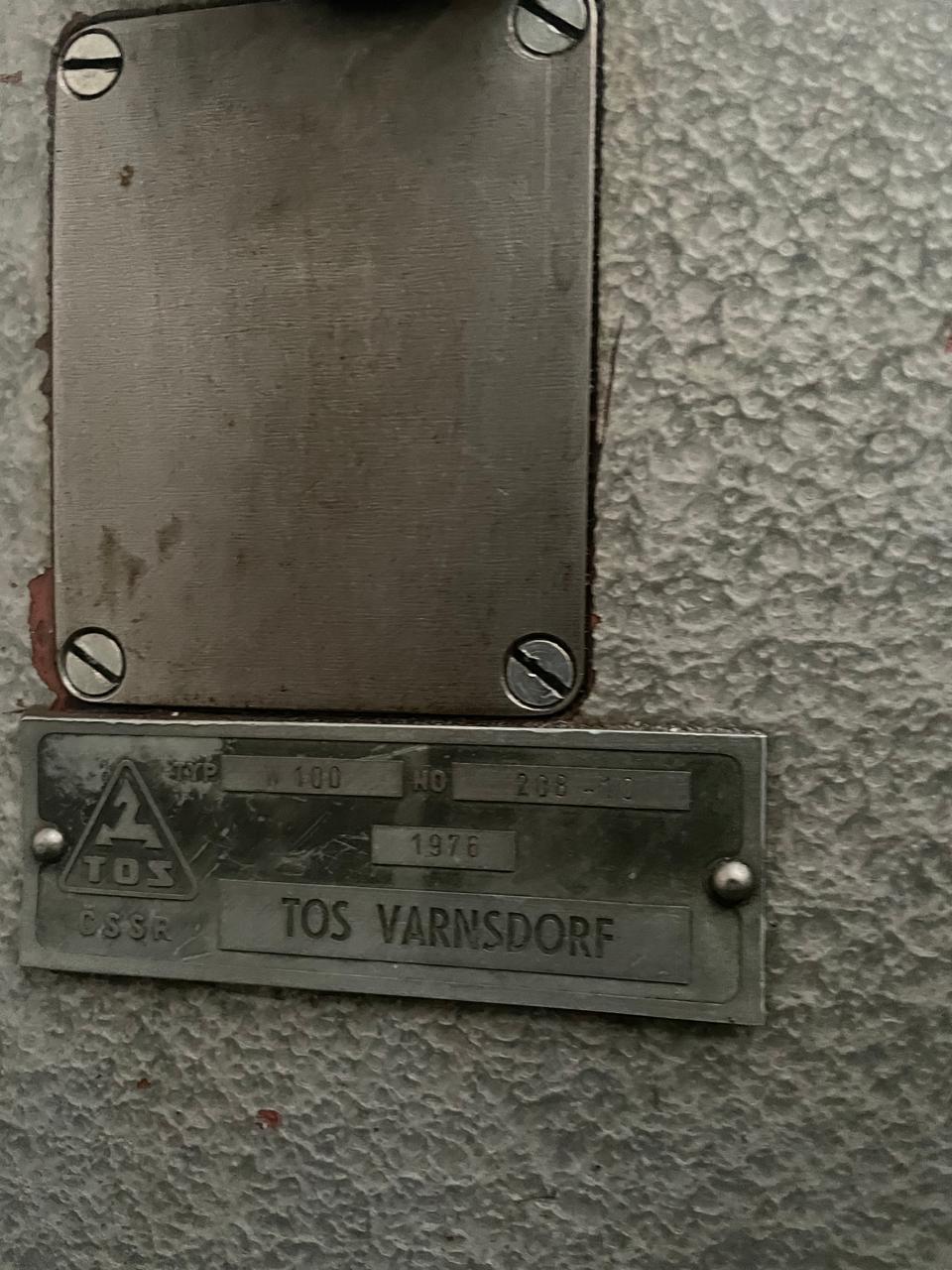

Manufacturer: TOS

Model: W 100

Country: GERMANY

Stock-no.: SEC00092

Technical Specifications

TOS W 100 HORIZONTAL BORING MACHINE

Make: TOS

Model: W 100

Country: Germany

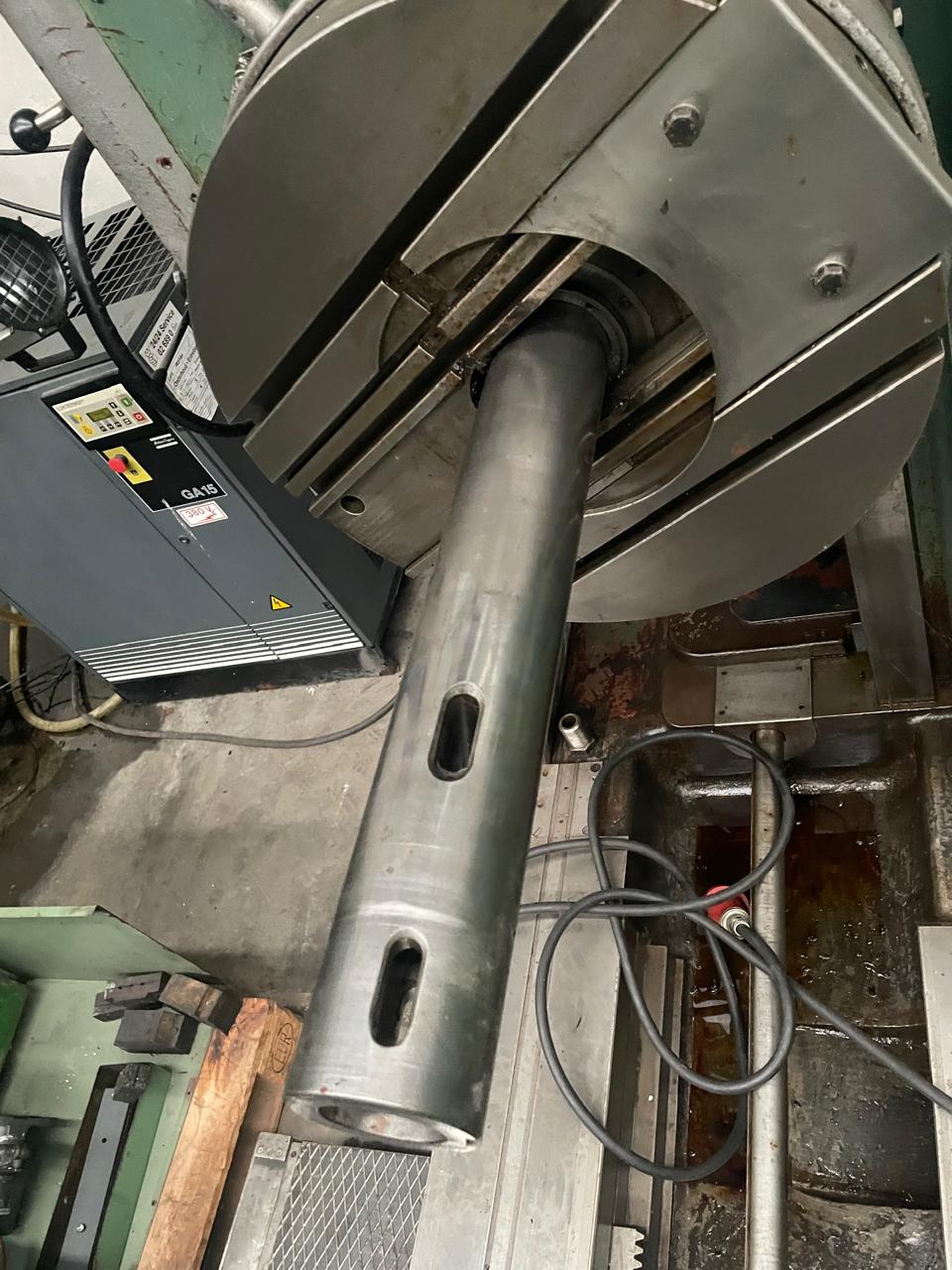

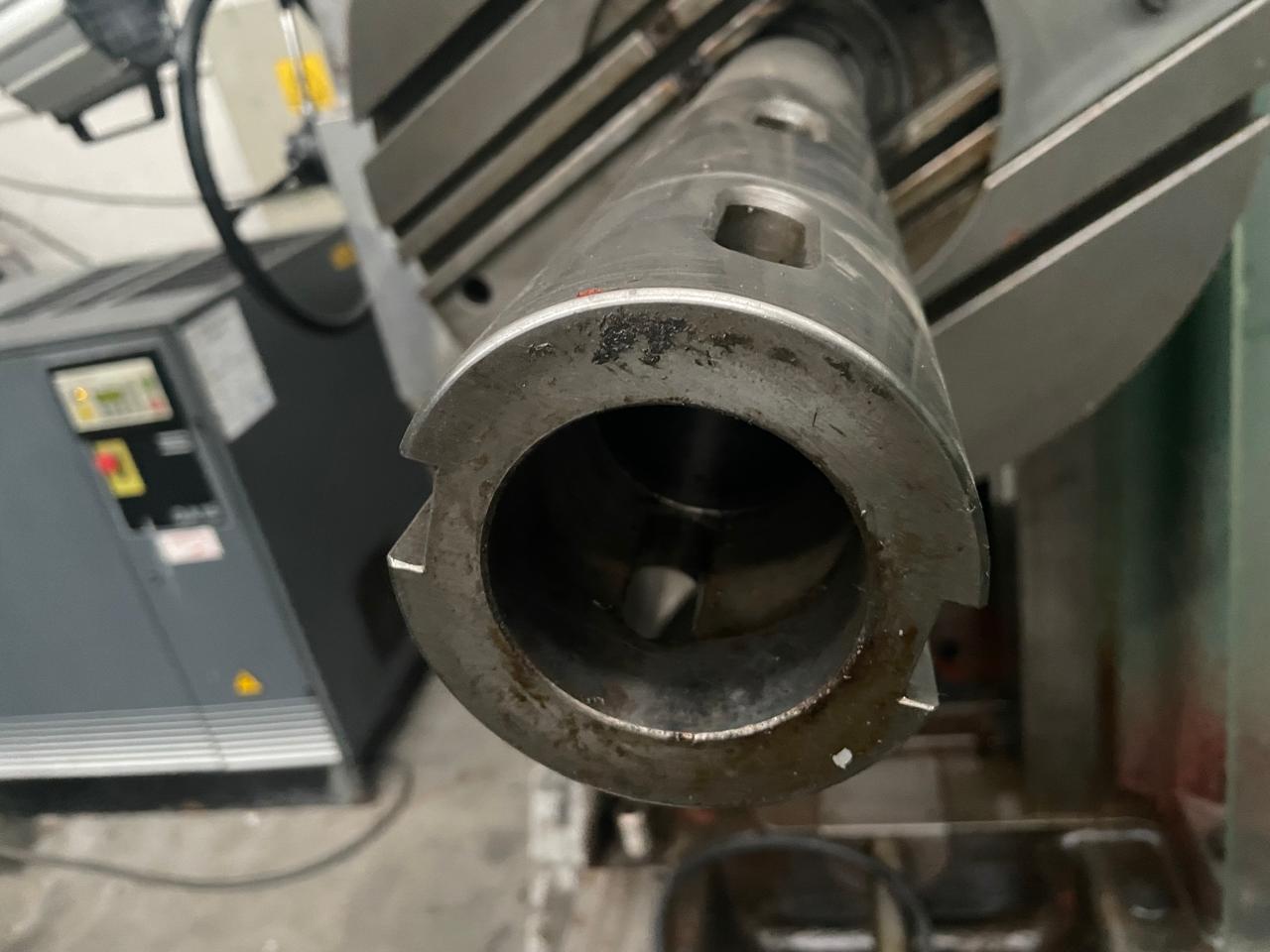

Spindle size: 100 mm

Spindle speeds: 7.1-1120 rpm

Spindle taper: MT 6

X-Axis: 1600 mm

Y-Axis: 1120 mm

Z-Axis: 1250 mm

W-Axis: 900 mm

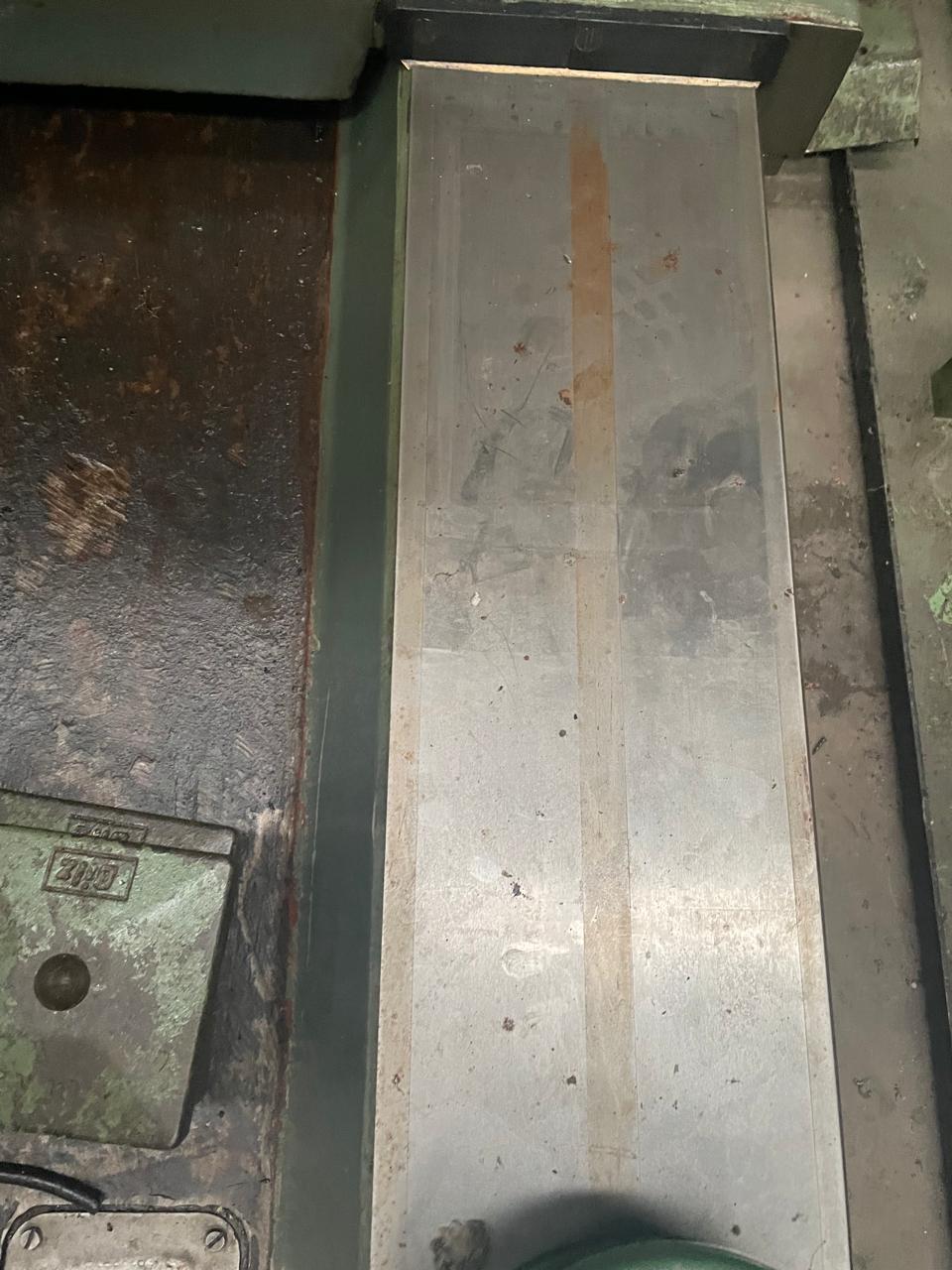

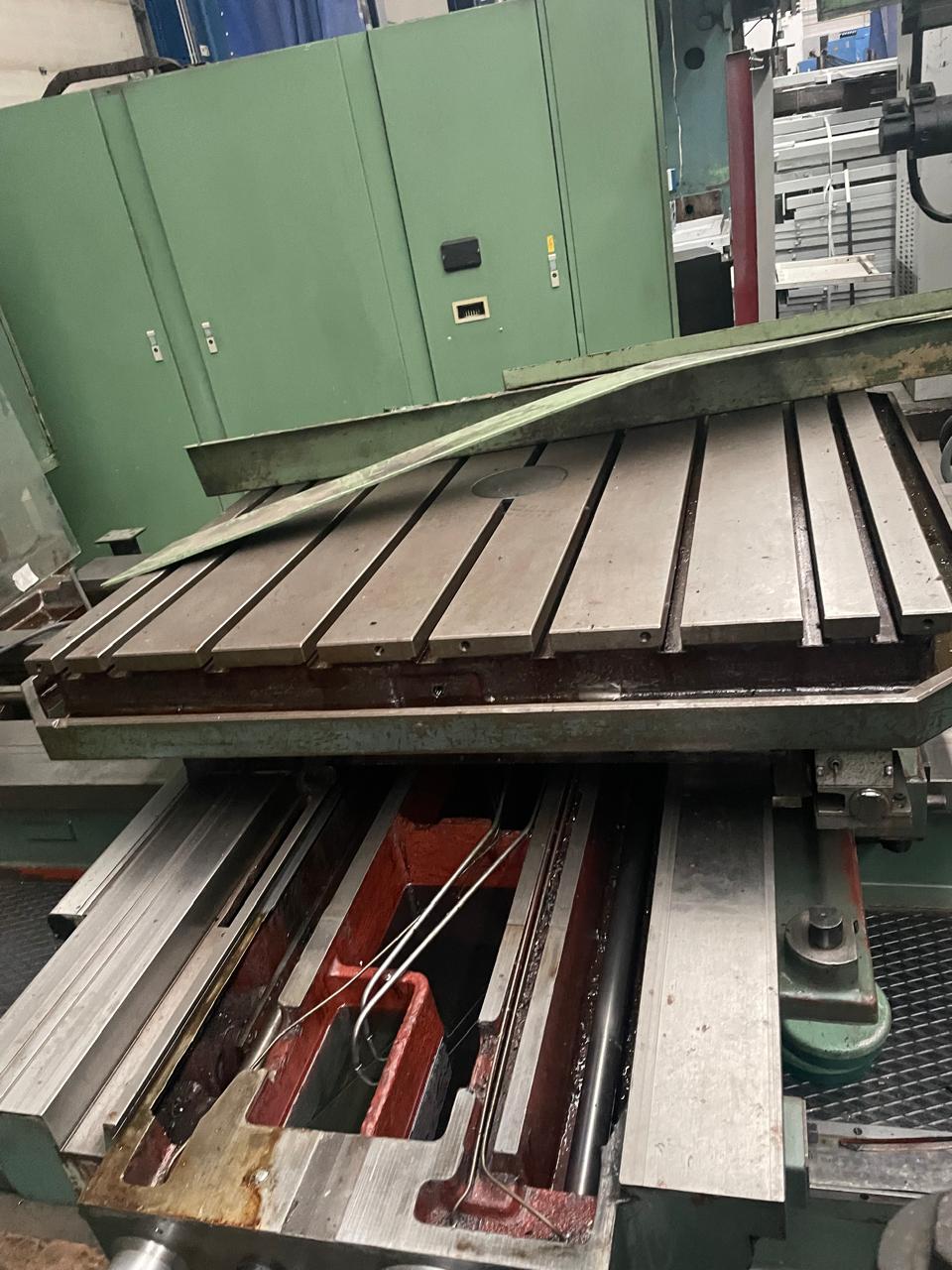

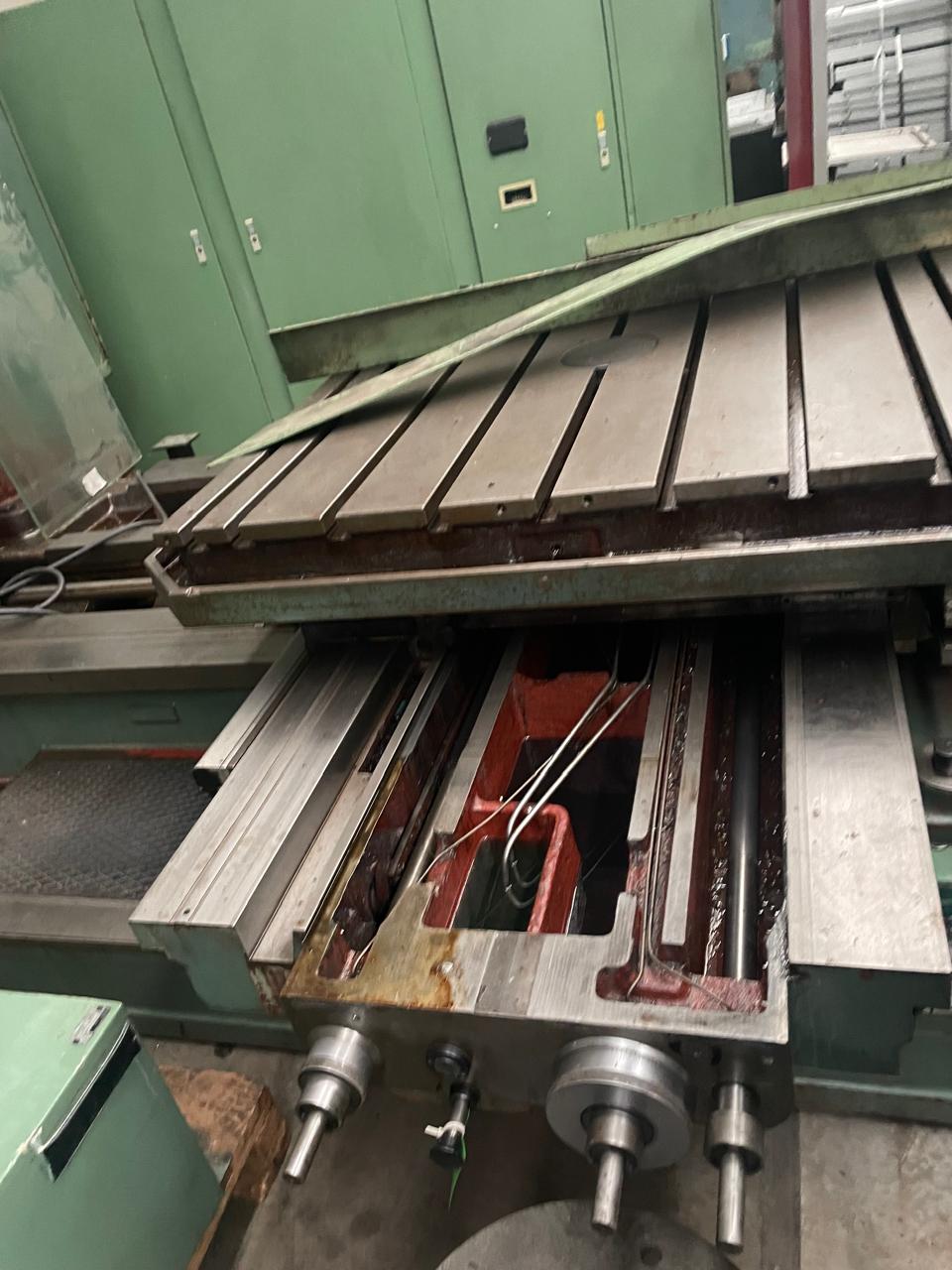

Table size: 1250x1250 mm

Max table load: 3 ton

Facing chuck diameter: 600 mm

Slide travel: 210 mm

Max facing diameter: 900 mm

Facing chuck speed range: 7.1 - 224 rpm

Total power: 15 kW

Weight: 14000 kg
