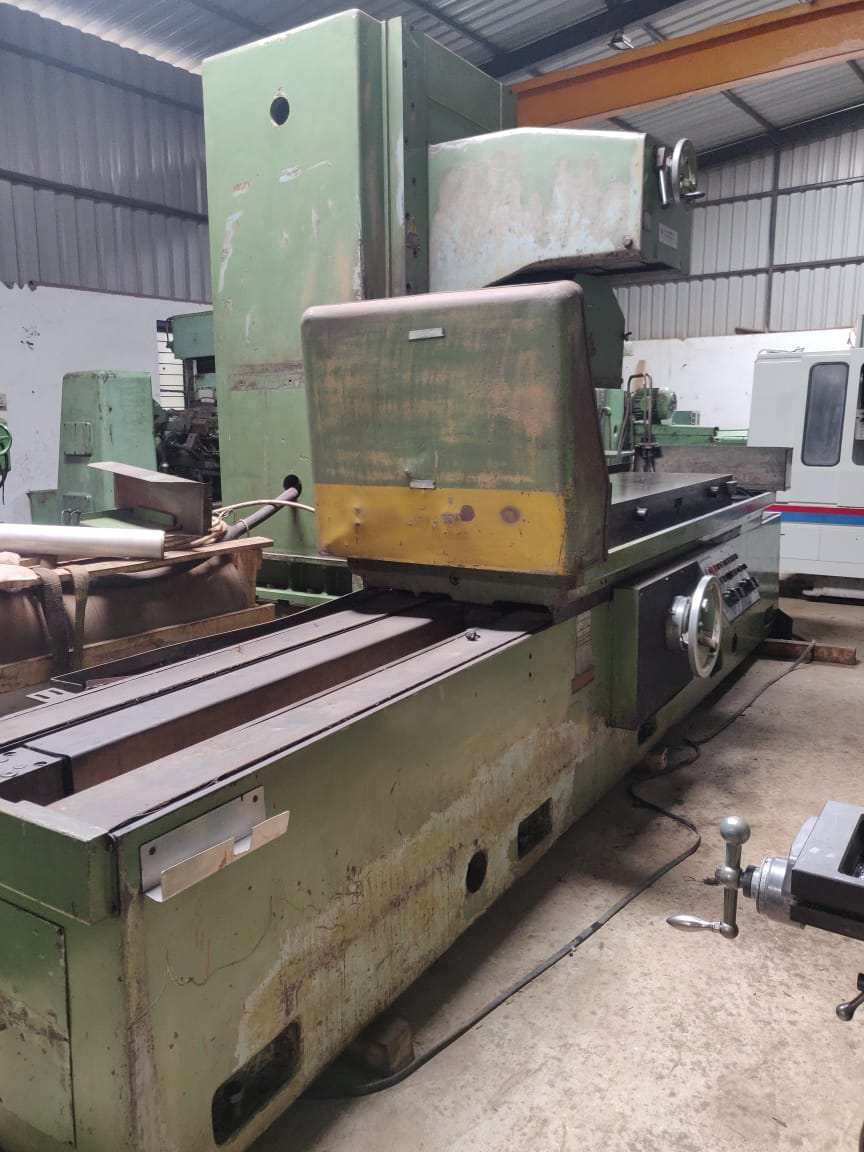

STANKO - SURFACE GRINDING MACHINE-3D725

Make : STANKO
Model: 3D725
Country : RUSSIA

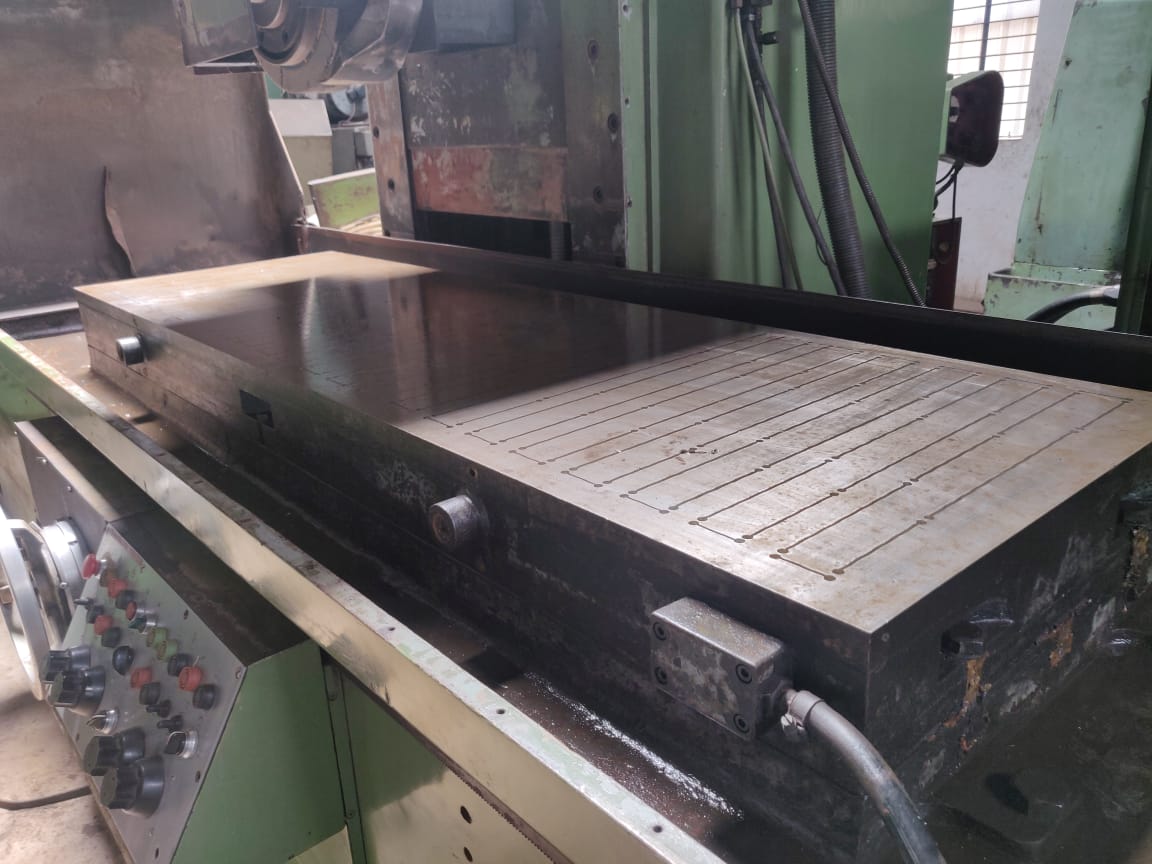

Magnetic Table Size : 2000 x 630 mm
Maximum Workpiece Dimensions: 2000x700x650 mm
Table Longitudinal Travel: 300 – 2100 mm
Table Movement Speed: 3 – 30 m/min
Max. Cross Travel (Grinding Head): 660 mm
Max. Vertical Travel (Grinding Head): 645 mm
Grinding Wheel Diameter: 500 mm
Distance Between Spindle Axis & Table: 235 – 880 mm
Vertical Movement per Handwheel Division: 0.004 mm
Automatic Vertical Feed Range: 0.004 – 0.1 mm
Spindle Speed: 1500 rpm
Max. Workpiece Weight: 650 kg
Overall Size: 5950 x 2860 x 2860 mm
Machine Weight: 15,250 kg
