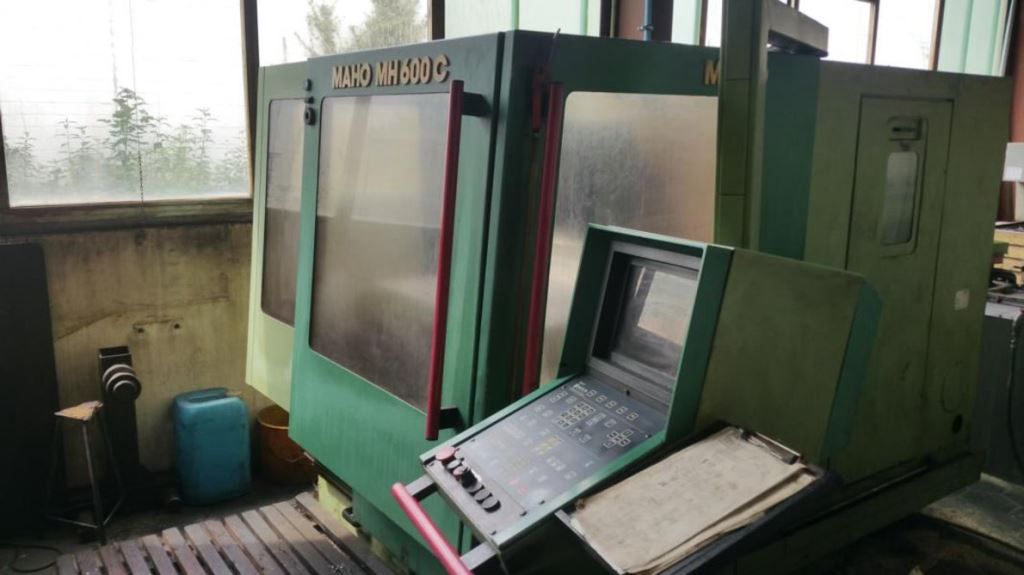

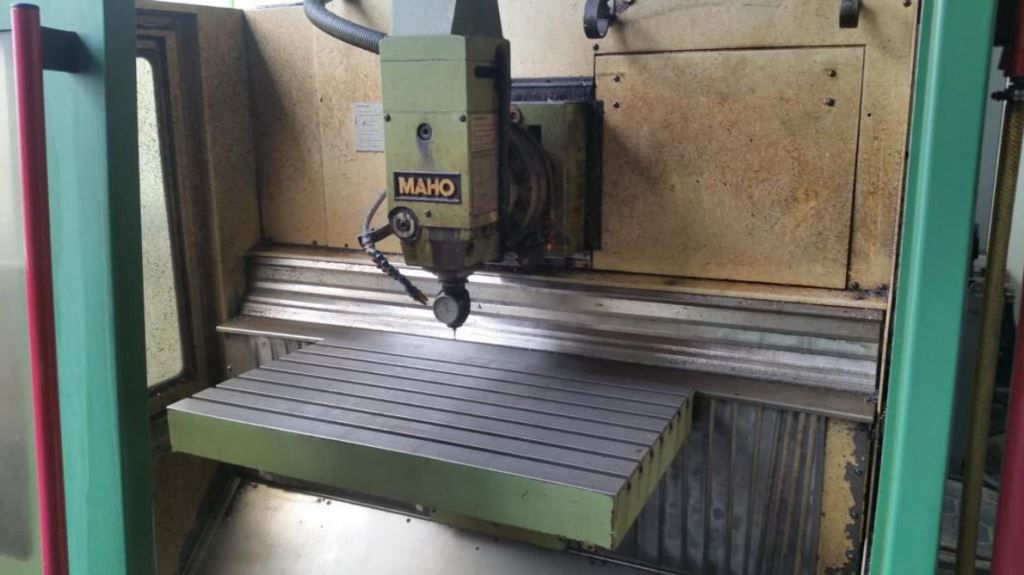

MAHO - UNIVERSAL CNC MILLING MACHINE-MH 600 C

MAHO MH 600 C - UNIVERSAL CNC MILLING MACHINE

MAKE: MAHO

TYPE: MH 600 C

COUNTRY: GERMANY

X-axis: 600 mm

Y-axis: 450 mm

Z-axis: 450 mm

Table Size: 900 mm × 500 mm

Maximum Load: 250 kg

Optional NC Rotary Table: Ø 630 mm with 0.001°

Speed Range: 20 to 6,300 rpm

Power Output: 7.5 kW to 10 kW

Taper: ISO 40 (SK40)

Working Feed: Up to 4,000 mm/min

Capacity: 24 to 30 tools

Max Tool Diameter: 100 mm

Max Tool Length: 200 mm

(L × W × H): Approximately 3,800 mm × 3,600 mm × 2,200 mm

Weight: Approximately 4 ton.
